Series 16i/18i/160i/180i - PA Operators manual Page 679

Operators manual

Page of 756

/ 756

MAINTENANCE

B–63124EN/01

1. METHOD OF REPLACING BATTERY

671

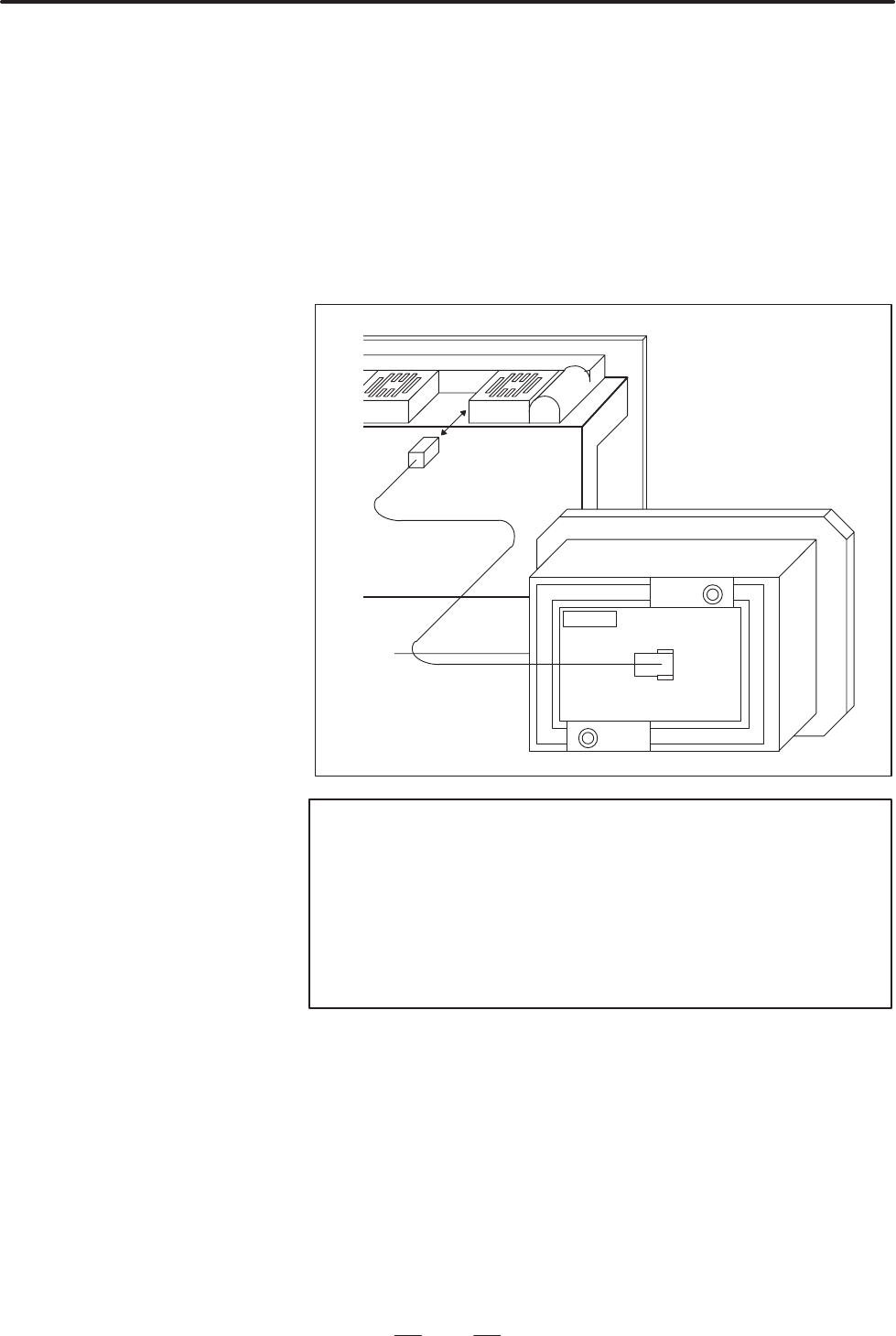

Power from external batteries is supplied through the same connector as

that to which the lithium battery is connected. The lithium battery,

provided as standard, can be replaced with external batteries in a battery

case (A02B–0236–C281) according to the battery replacement

procedures described above.

NOTE

Install the battery case (A02B–0236–C281: 14–m cable) in

a location where the batteries can be replaced even when

the control unit power is on.

The battery cable connector is attached to the control unit

by means of a simple lock system. To prevent the connector

from being disconnected due to the weight or tension of the

cable, secure the cable within 50 cm of the connector.

1.2

USE OF ALKALINE

DRY CELLS (SIZE D)

Connection
