Series 16i/18i/160i/180i - PA Operators manual Page 156

Operators manual

Page of 756

/ 756

PROGRAMMING

B–63124EN/01

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

145

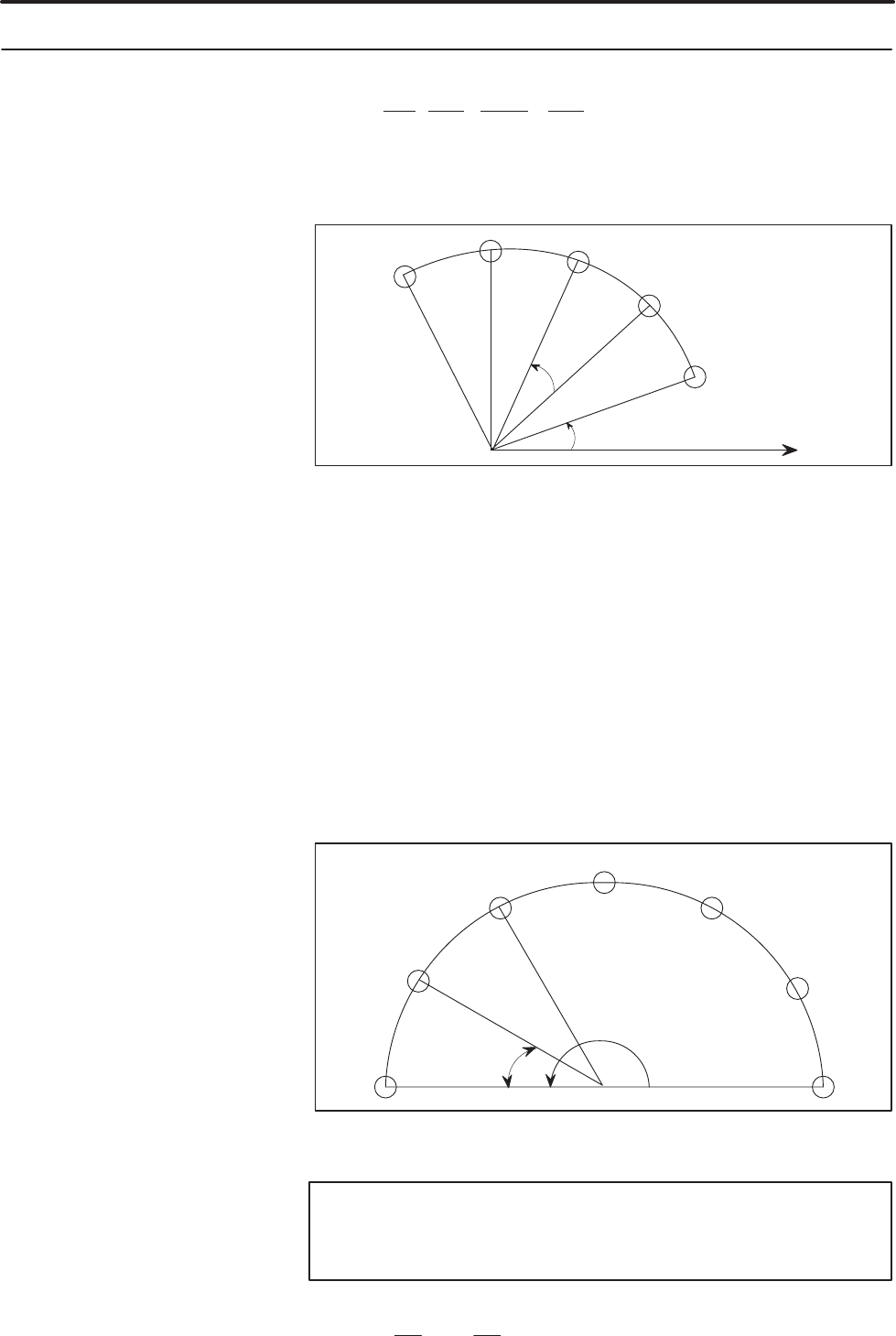

G77I r J θ P ∆θ K n ;

By the above command, punching is made at n pieces of points every

incremental ∆θ angle, starting with the point which forms θ angle with

reference to the X-axis on the circumference of radius r, with the present

tool position or the position specified by G72 being set as the circle center.

∆θ

Center

r : Radius of arc

This unit is input unit, and this radius is commanded by a positive

number.

θ : Angle formed between the first punch point and the +X axis

Its unit is input unit (deg), and counterclockwise punching is

commanded by a positive number.

∆θ: Angle formed between adjacent punch points

The unit is input unit (deg).

Counterclockwise punching is commanded by a positive number.

n : Number of punch points (1 to 9999)

N541G72G90X50.0Y100.0 ;

N542G77I30.0J180.0P-30.0K7 ;

30R

30°

180°

(50, 100)

For center punch, command No. 541 block as

N541G00G90X50.0Y100.0;

NOTE

If the radius is 0 or the number of punch points is 0, alarm

(No. 4504) is produced.

14.1.4

Arc (G77)

Examples
