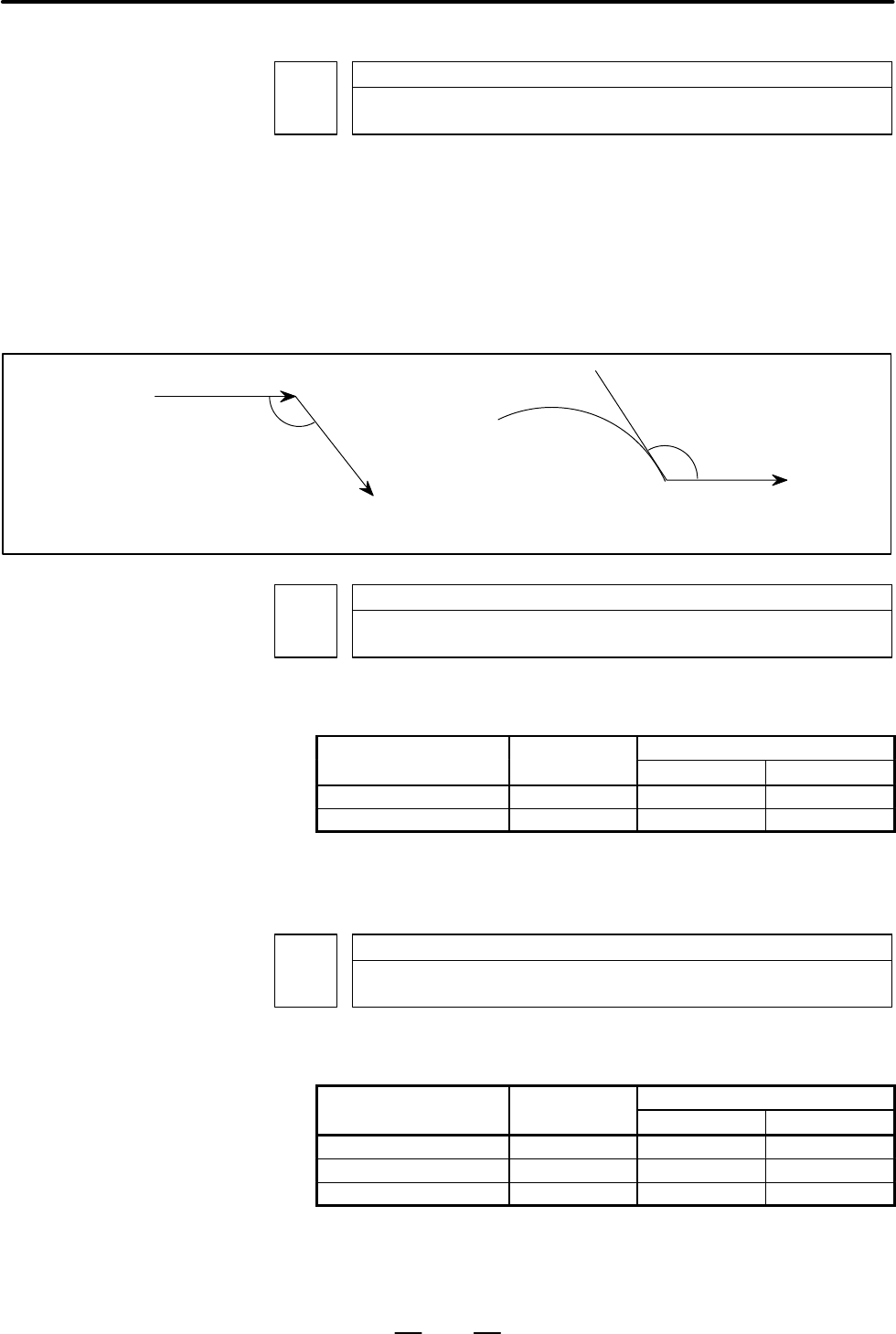

4. DESCRIPTION OF PARAMETERS

1779

Critical angle subtended by two blocks for automatic corner deceleration (for

look–ahead control)

[Data type] 2–word

[Unit of data] 0.001 deg

[Valid data range] 0 to 180000

Set a critical angle to be subtended by two blocks for corner deceleration

when the angle–basedautomatic corner deceleration function is used.

The angle subtended by two blocks is defined as θ in the examples shown

below.

Block A (G01)

Block B (G01)

Angle subtended by two straight lines

Block A (G02)

Block B (G01)

Angle subtended by an arc and its tangent

1780

Allowable speed difference for the speed difference–based corner deceleration

function (for linear acceleration/deceleration before interpolation)

[Data type] Word

[Unit of data, valid range]

Increment system

Unit of data

Valid range

ncremen

sys

IS-A, IS-B IS-C

Millimeter machine 1 mm/min 6 to 15000 6 to 12000

Inch machine 0.1 inch/min 6 to 6000 6 to 4800

Set the speed difference for the speed difference–based automatic corner

deceleration function when linear acceleration/deceleration before

interpolation is used.

1781

Allowable speed difference for the speed difference–based corner deceleration

function (linear acceleration/deceleration after interpolation)

[Data type] Word axis

[Unit of data, valid range]

Increment system

Unit of data

Valid range

ncremen

sys

IS-A, IS-B IS-C

Millimeter machine 1 mm/min 6 to 15000 6 to 12000

Inch machine 0.1 inch/min 6 to 6000 6 to 4800

Rotation axis 0.1 deg/min 6 to 15000 6 to 12000

Set speed difference for the speed difference–based automatic corner

deceleration function when linear acceleration/deceleration after

interpolation used.
