B–63010EN/02

4. DESCRIPTION OF PARAMETERS

233

4912

Spindle speed fluctuation ratio (r) for which no alarm is activated in the

spindle speed fluctuation detection function

[Data type] Word

Unit of data 1% 0. 1% (T series)

Data range 1 to 100 1 to 1000

NOTE

Unit of data depends on parameter No.4900#0 FLR (T

series only).

Set the spindle speed fluctuation ratio (r) for which no alarm is activated in

the spindle speed fluctuation detection function (see Fig.4.23 (e)).

4913

Spindle speed fluctuation value (d) for which no alarm is activated in the

spindle speed fluctuation detection function

[Data type] Word

[Unit of data] min

–1

[Valid data range] 0 to 32767

Set the allowable fluctuation speed (Sd) for which no alarm is activated in

the spindle speed fluctuation detection function.

The function for detecting spindle speed fluctuation checks whether the

actual speed varies for the specified speed or not. Sd or Sr, whichever is

greater, is taken as the allowable fluctuation speed (Sm). An alarm is

activated when the actual spindle speed varies for the commanded speed

(Sc) under the condition that the variation width exceeds the allowable

variation width (Sm).

Sd: The allowable constant variation width which is independent of the

specified spindle speed (Sd is set with parameter 4913.)

Sr: The allowable variation width which is obtained by multiplying Sc

(commanded spindle speed) by r (constant ratio). (r is set with

parameter 4912.)

Sm: Sd or Sr, whichever is greater

check

Spindle speed

Specified

speed

Actual speed

Alarm

Time

Check

start

Command

another

speed

Check

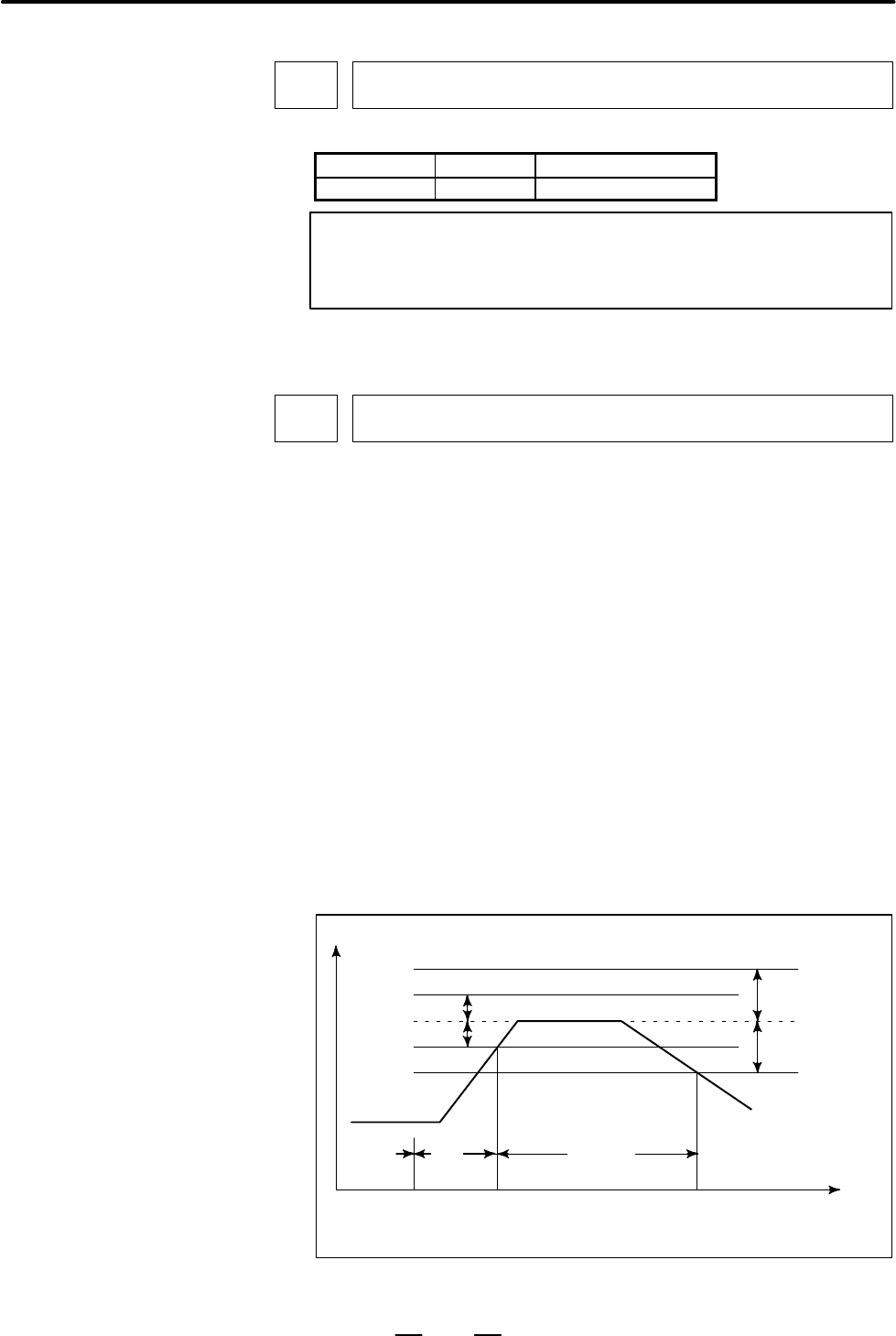

Fig.4.23 (e) Sd and Sm
