4. DESCRIPTION OF PARAMETERS

[Valid data range] 0 to 3999

Set distance Ls up to the end point in an inner corner for corner override.

If qx qp, the inside of a comer is recognized. (qp is set in parameter

1711.)

When an inner corner is recognized, the feedrate is overridden in the range

of Le in the block immediately before the intersection of the corner and Ls

in the next block following the intersection.

Ls and Le are each a straight line connecting the intersection of the corner

and a given point on the path of the cutter’s center.

Ls and Le are set in parameters 1713 and 1714.

An override is applied from point a to b.

Programmed

path

Cutter center

path

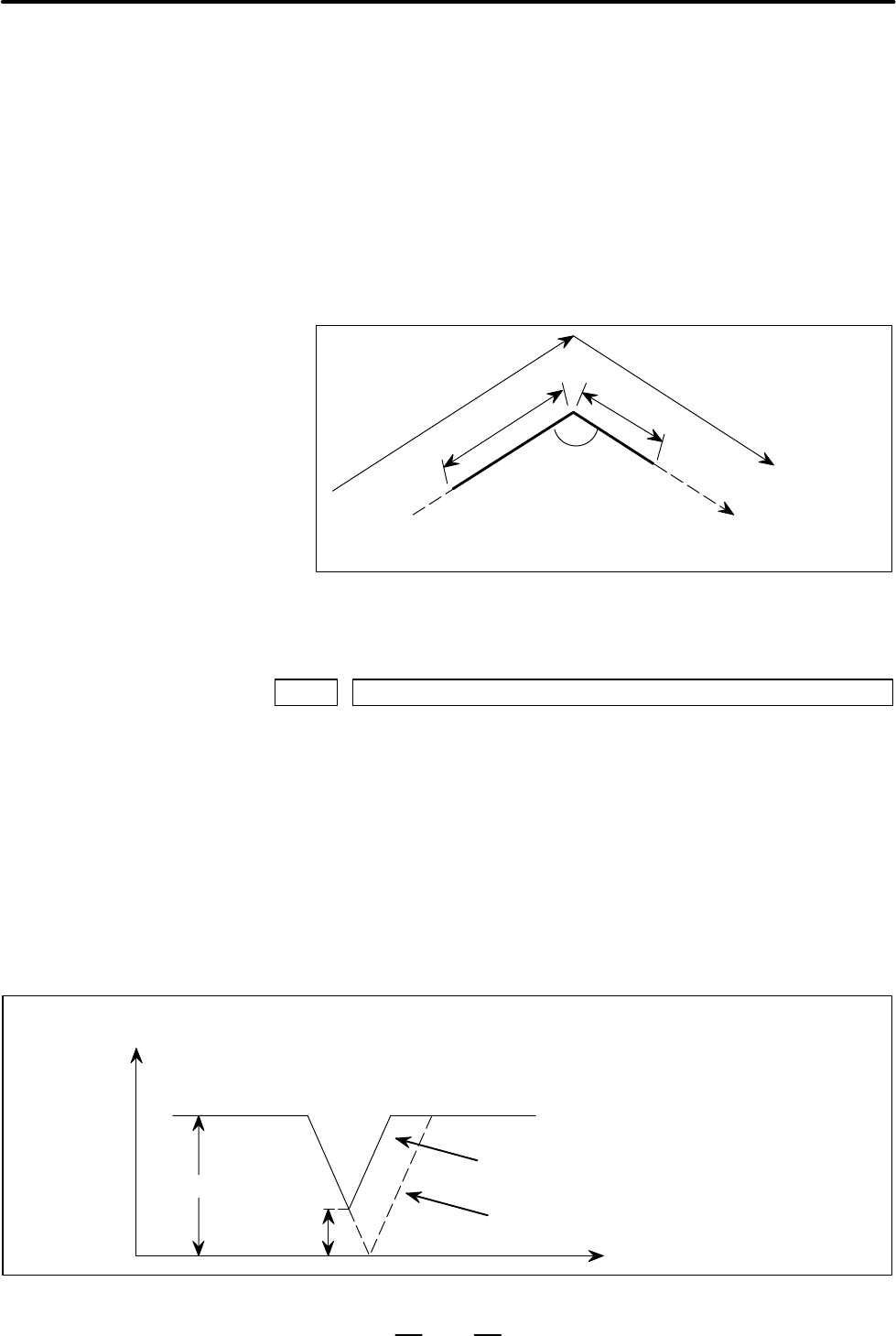

Fig.4.17 (b) Distance Le and Ls in the automatic corner override at

an inner corner

1722 Rapid traverse feedrate reduction ratio for overlapping rapid traverse blocks

[Data type] Byte axis

[Unit of data] %

[Valid data range] 1 to 100

This parameter is used when rapid traverse blocks are arranged

successively, or when a rapid traverse block is followed by a block that

does not cause, movement. When the feedrate for each axis of a block is

reduced to the ratio set in this parameter, the execution of the next block is

started.

X–axis feedrate

N1 G00 X– – ; N2 G00 X– – ;

When the function of overlapping rapid

traverse blocks is enabled

When the function of overlapping rapid

traverse blocks is disabled

: Rapid traverse feedrate

: Setting of parameter No.1722 (feedrate reduction ratio)

: Feedrate where deceleration is terminated: Fh x a/100

Examples
