4. DESCRIPTION OF PARAMETERS

B–63010EN/02

416

8151

Distance along the X axis between the reference positions of tool posts 1 and 2

8152

Distance along the Z axis between the reference positions of tool posts 1 and 2

[Data type] 2–word

[Unit of data]

Increment system IS–B IS–C Unit

Millineter machine 0.001 0.0001 mm

Inch machine 0.0001 0.00001 inch

[Valid data range] –99999999 to 99999999

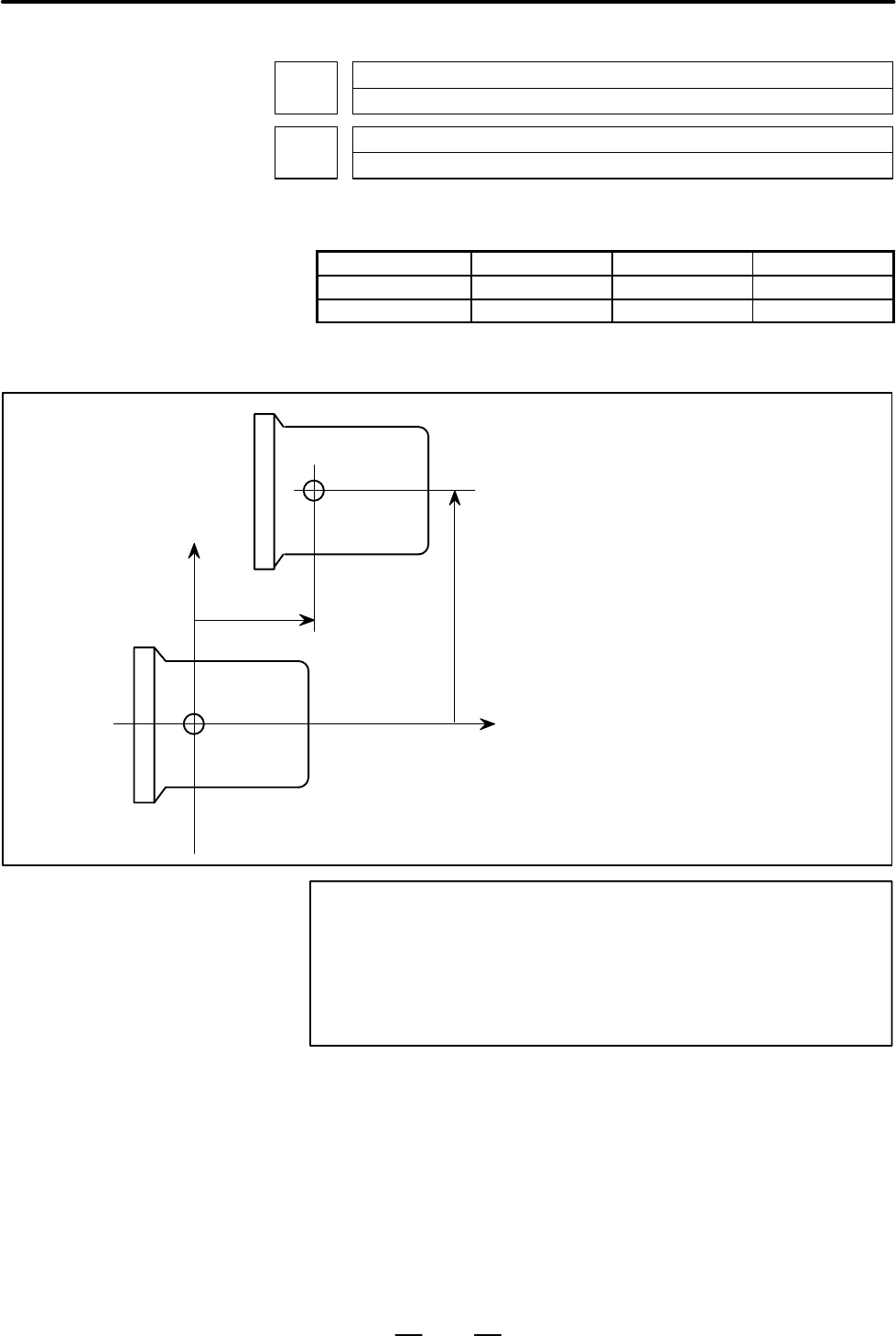

Distance between tool posts is set in these parameters.

Tool post 1

Tool post 2

Specify the X and Z values (e, z) of the

reference position of tool post 2 in

parameters 8151 and 8152,

respectively, in the Z–X plane

coordinate system. However, note that

the reference position of tool post 1 is

plotted at the zero point.

NOTE

After the parameter values are changed, perform manual

reference position return for individual tool posts.

Otherwise, data on the positional relationship between the

tool posts stored in memory will not be updated to the new

parameter values.
