Series 16i/18i/160i/180i/160is/180is - Model A Parameter manual Page 96

Parameter manual

Page of 513

/ 513

B–63010EN/02

4. DESCRIPTION OF PARAMETERS

1740

Critical angle subtended by two blocks for automatic corner deceleration

[Data type] 2–word

[Unit of data] 0.001 deg

[Valid data range] 0 to 180000

Set a critical angle to be subtended by two blocks for corner deceleration

when the angle–based automatic corner deceleration function is used.

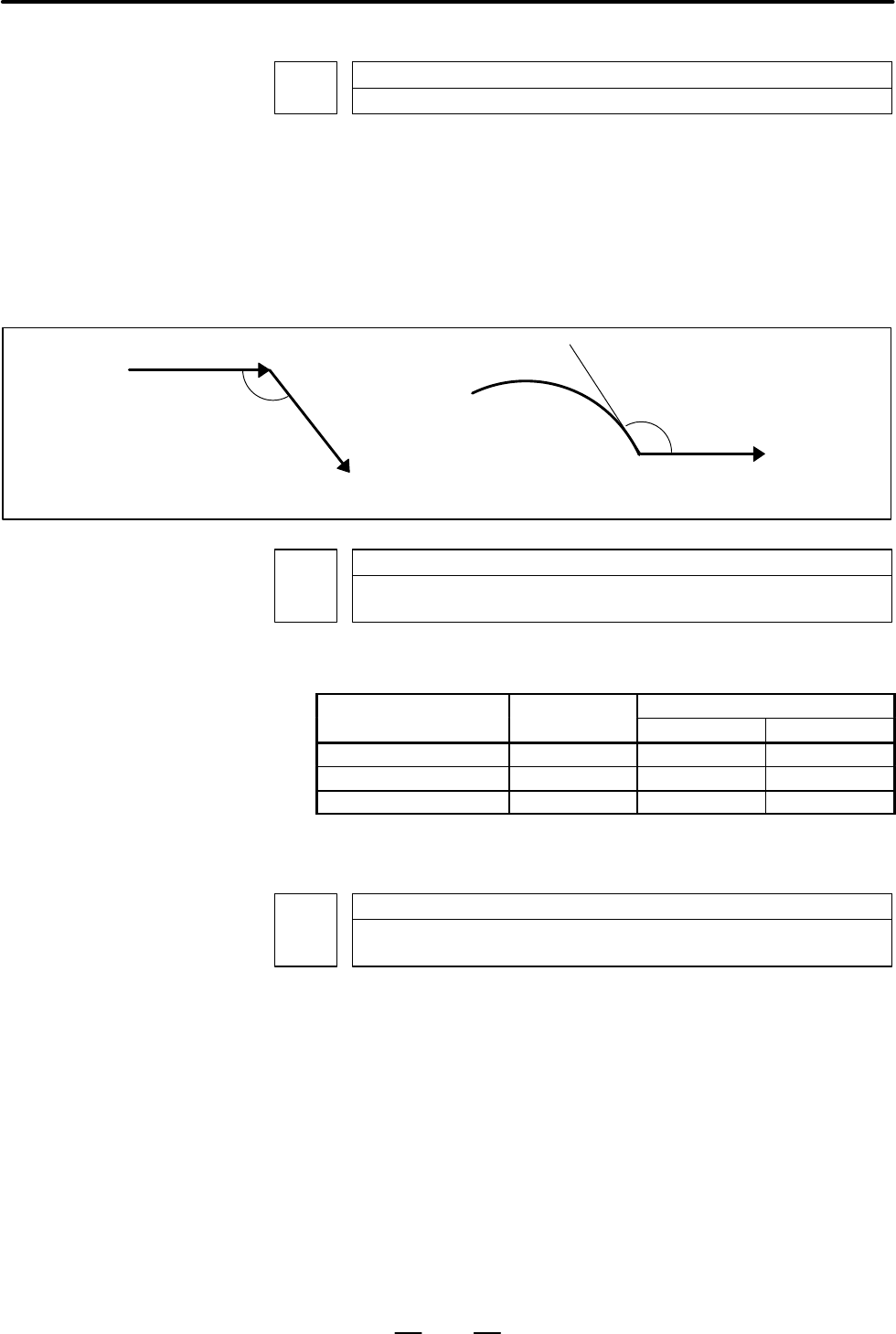

The angle subtended by two blocks is defined as q in the examples shown

below.

Block A (G01)

Block B (G01)

Angle subtended by two straight lines

Block A (G02)

Block B(G01)

Angle subtended by an arc and its tangent

1741

Feedrate for assuming the termination of automatic corner deceleration (for

acceleration/deceleration after interpolation)

[Data type] Word axis

[Unit of data]

Increment system

Unit of data

Valid data range

ncremen

sys

IS-A, IS-B IS-C

Millimeter machine 1 mm/min 6 to 15000 6 to 12000

Inch machine 0.1 inch/min 6 to 6000 6 to 4800

Rotaion axis 1 deg/min 6 to 15000 6 to 12000

Set the feedrate for assuming the termination of deceleration in automatic

corner deceleration.

1762

Exponential acceleration/deceleration time constant for cutting feed in the look–

ahead control mode

[Data type] Word axis

[Unit of data] 1 ms

[Valid data range] 0 to 4000

Set an exponential acceleration/deceleration time constant for cutting

feed in the look–ahead control mode.
