Series 16i/18i/160i/180i/160is/180is - Model A Parameter manual Page 441

Parameter manual

Page of 513

/ 513

4. DESCRIPTION OF PARAMETERS

B–63010EN/02

434

8251

M code (G101) for specifying the start of first program operation

8252

M code (G102) for specifying the start of second program operation

8253

M code (G103) for specifying the start of third program operation

[Data type] 2–word

[Valid data range] 6 to 99999999

These parameters set M codes for starting previously registered B–axis

operation programs. M codes (such as M30, M98, and M99), already

used for other purposes, cannot be set.

8257

T code number for tool offset cancellation

[Data type] Byte

[Valid data range] 0 to 90

This parameter sets a T code number for tool offset cancellation. When

a T code from (setting + 1) to (setting + 9) is specified, tool offset is

specified.

8258

Clearance, used in canned cycle G83, for the B–axis

[Data type] 2–word

[Valid data range] 0 to 99999999

[Unit of data]

Increment system IS–B IS–C Unit

Millimeter input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

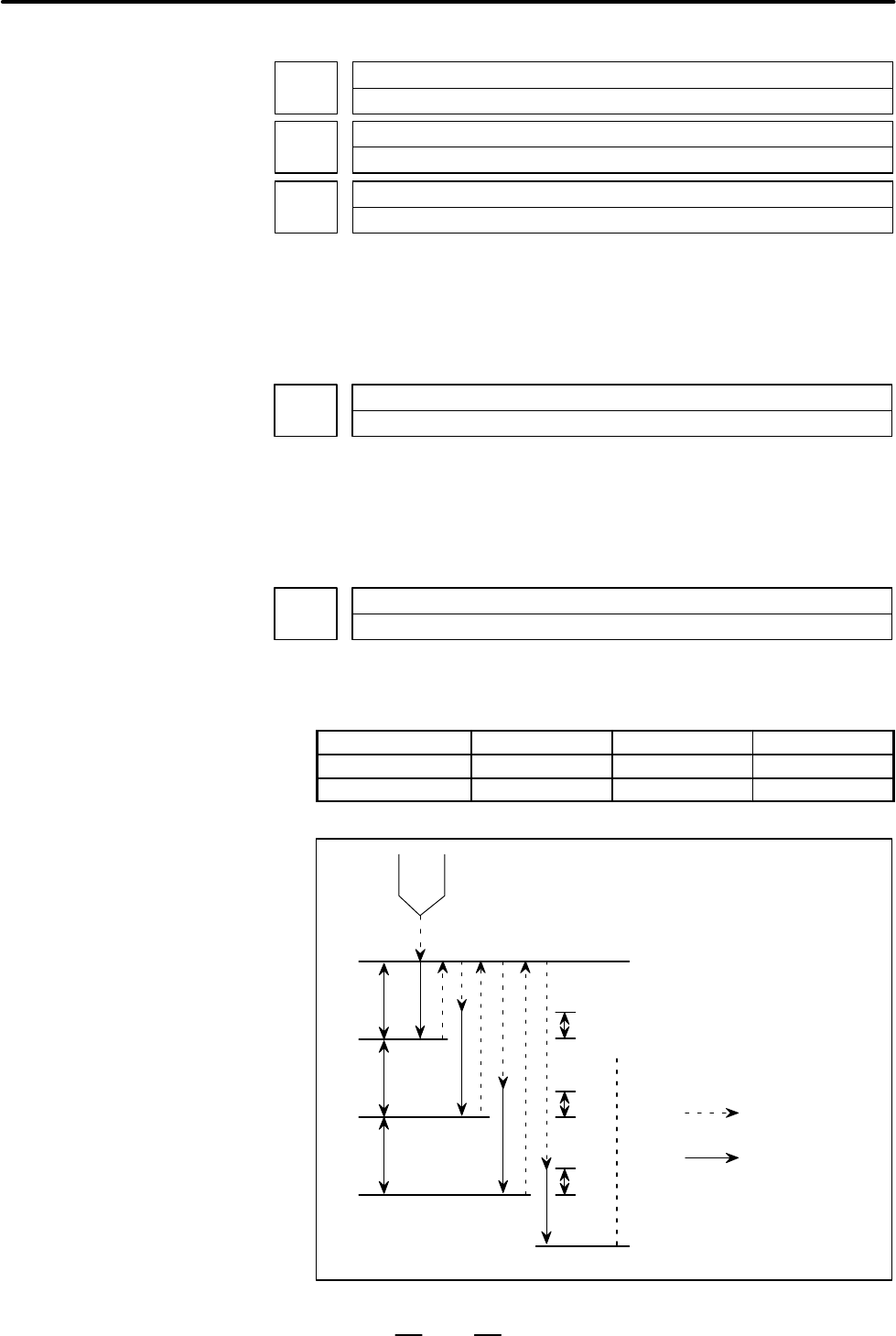

This parameter sets the clearance used for peck drilling cycle G83.

Point B

G83

q : Depth of cut

d : Clearance

Rapid traverse

Cutting feed
