B-63950EN/02 4.DESCRIPTION OF PARAMETERS
- 101 -
# 4 SCPx For two-point measurement (when bit 2 (DC2) of parameter No. 1802
is set to 1), the scale zero point direction is:
0: On the minus side. (The reference position is located in the plus
direction when viewed from the scale zero point.)
1: On the plus side. (The reference position is located in the minus
direction when viewed from the scale zero point.)
NOTE
1 This parameter is valid when bit 2 (DC2) of
parameter No. 1802 is set to 1.
2 If this parameter is set to an incorrect value, an
incorrect coordinate system is established. In
such a case, reverse the setting then perform
reference position establishment operation again.
＋
－

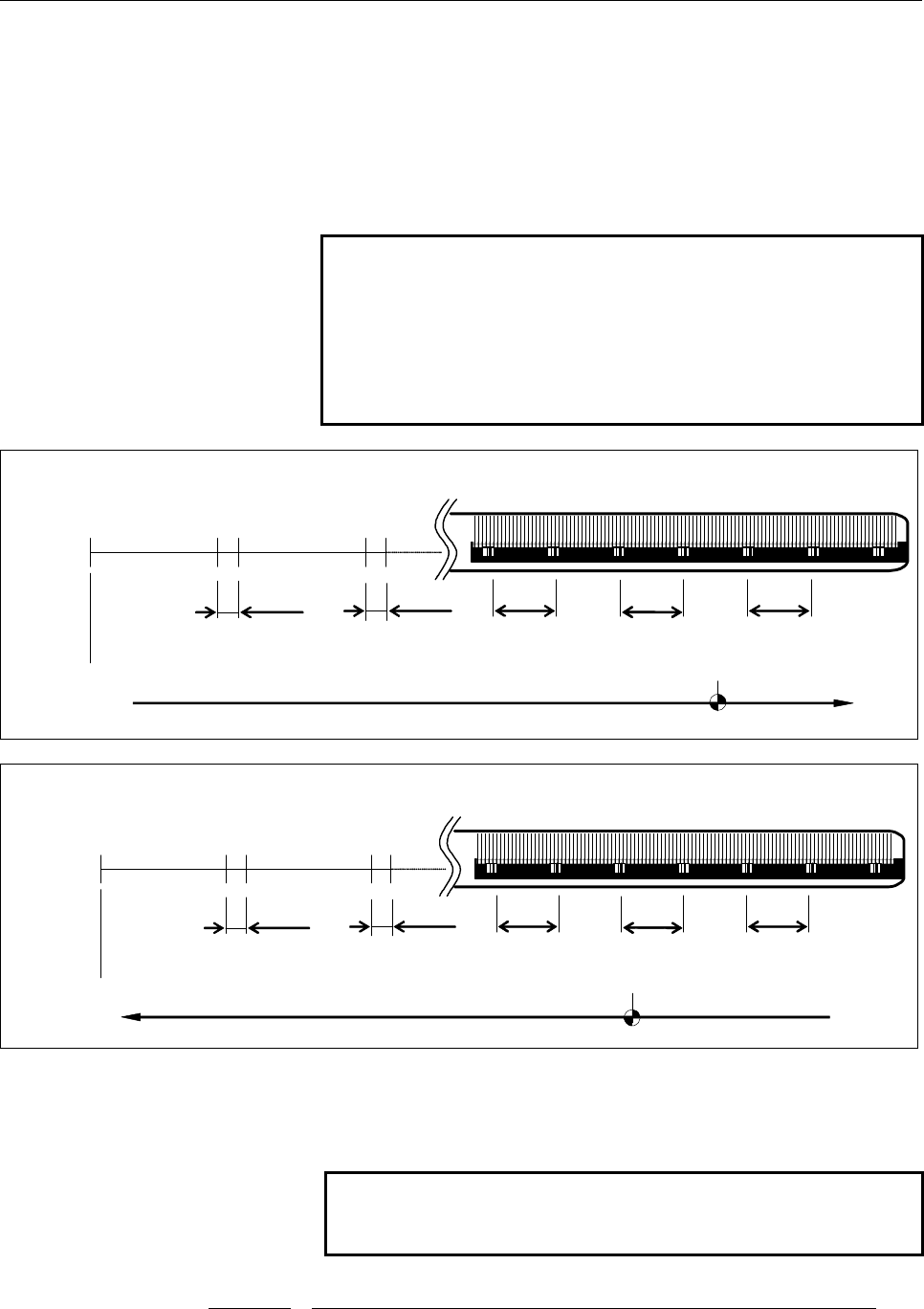

Reference position
Machine coordinate system
9.940 9.960 9.980
Mark 1
Mark 2
Mark 1 Mark 2 Mark 1Mark 1Mark 2 Mark 1 Mark 1 Mark 2Mark 1 = mark 2
0.020
Scale zero point
0.040
● When parameter SCP = 0
● When parameter SCP = 1
＋
－
Reference position
Machine coordinate system
9.940 9.960 9.980
Mark 1Mark 2 Mark 1 Mark 2 Mark 1
Mark 1Mark 2
Mark 1
Mark 1 Mark 2
Mark 1 = Mark 2
0.020
Scale zero point
0.040
# 6 TANx Tandem control
0: Not used
1: Used
NOTE
Set this parameter to both master axis and slave
axis.
#7 #6 #5 #4 #3 #2 #1 #0
