B-63950EN/02 4.DESCRIPTION OF PARAMETERS
- 237 -

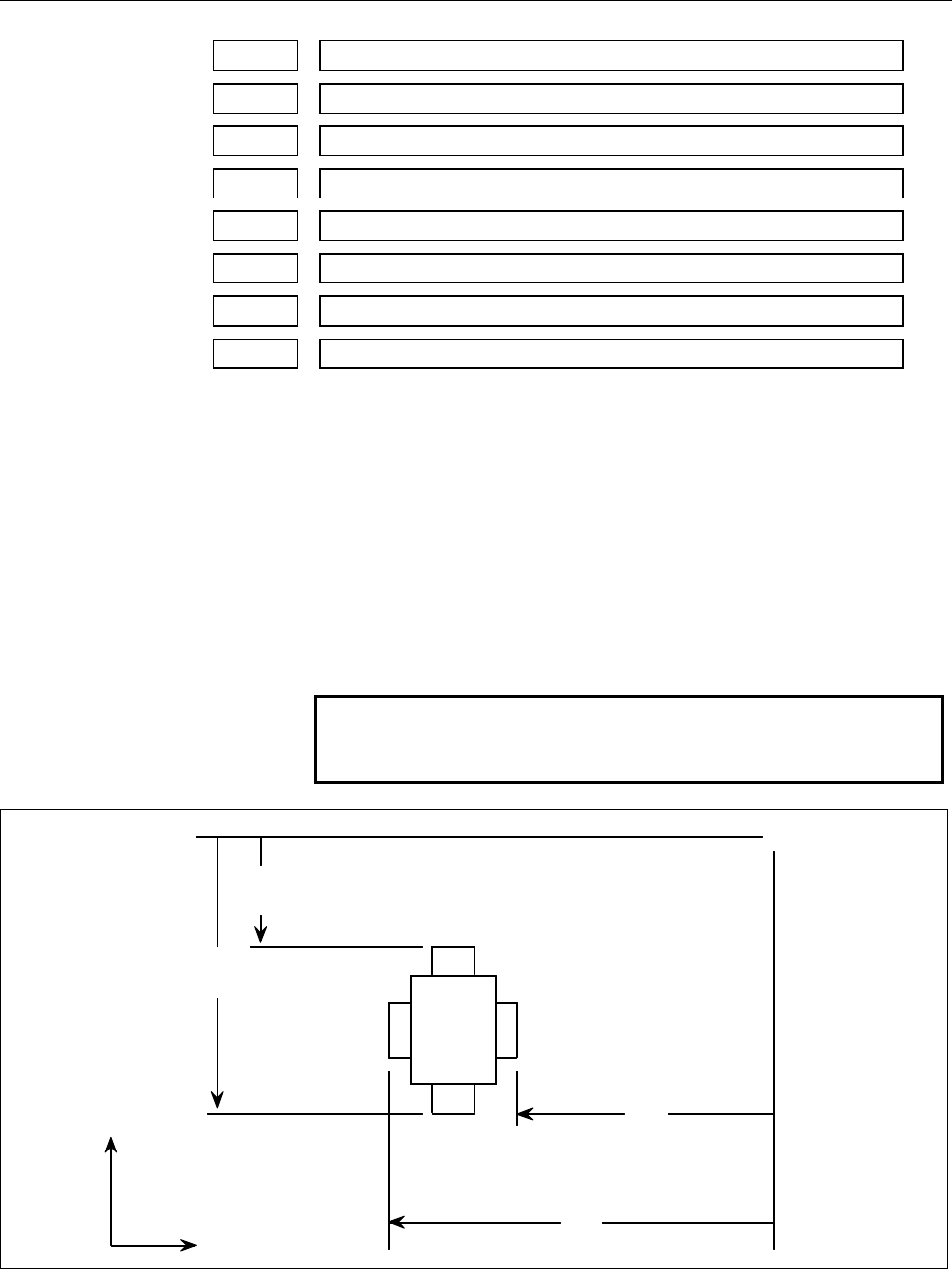

5015 Distance to X-axis + contact surface of touch sensor 1 (X1P)
5016 Distance to X-axis - contact surface of touch sensor 1 (X1M)
5017 Distance to Z-axis + contact surface of touch sensor 1 (Z1P)
5018 Distance to Z-axis - contact surface of touch sensor 1 (Z1M)
5056 Distance to X-axis + contact surface of touch sensor 2 (X2P)
5057 Distance to X-axis - contact surface of touch sensor 2 (X2M)
5058 Distance to Z-axis + contact surface of touch sensor 2 (Z2P)
5059 Distance to Z-axis - contact surface of touch sensor 2 (Z2M)
[Input type] Parameter input
[Data type] Real path
[Unit of data] mm, inch (input unit)
[Minimum unit of data] Depend on the increment system of the applied axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting
table (A) )
This parameter is related to the function for direct input of offset value
measured B.
Set the distance (signed) from a measurement reference position to
each contact surface of a sensor. For a diameter specification axis,
set a diameter value.
NOTE
Parameter No. 5056 to No.5059 are valid when bit 0
(2NR) of parameter No. 5051 is set to 1.
Z-axis - contact surface →
←Z-axis + contact surf ace
↑
X-axis + contact surface
X1m X-axis - contact surface
↓
○Measurement
reference
position
X1p
+X
Z1m
Z1p
+Z
+
