B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 87 -

3.5.20 Changing Signal Addresses and Function Instruction

Parameters in the Display Window

This subsection describes how to change signals addresses and

function instruction parameters in the display window.

Procedure

1. Position the cursor to the signal address or function instruction

parameter you want to change.

2. Press and hold down the [Shift] key and press the [Enter] key,

and the address or parameter will enter the change-enabled state.

(You can also key in directly after positioning the cursor.)

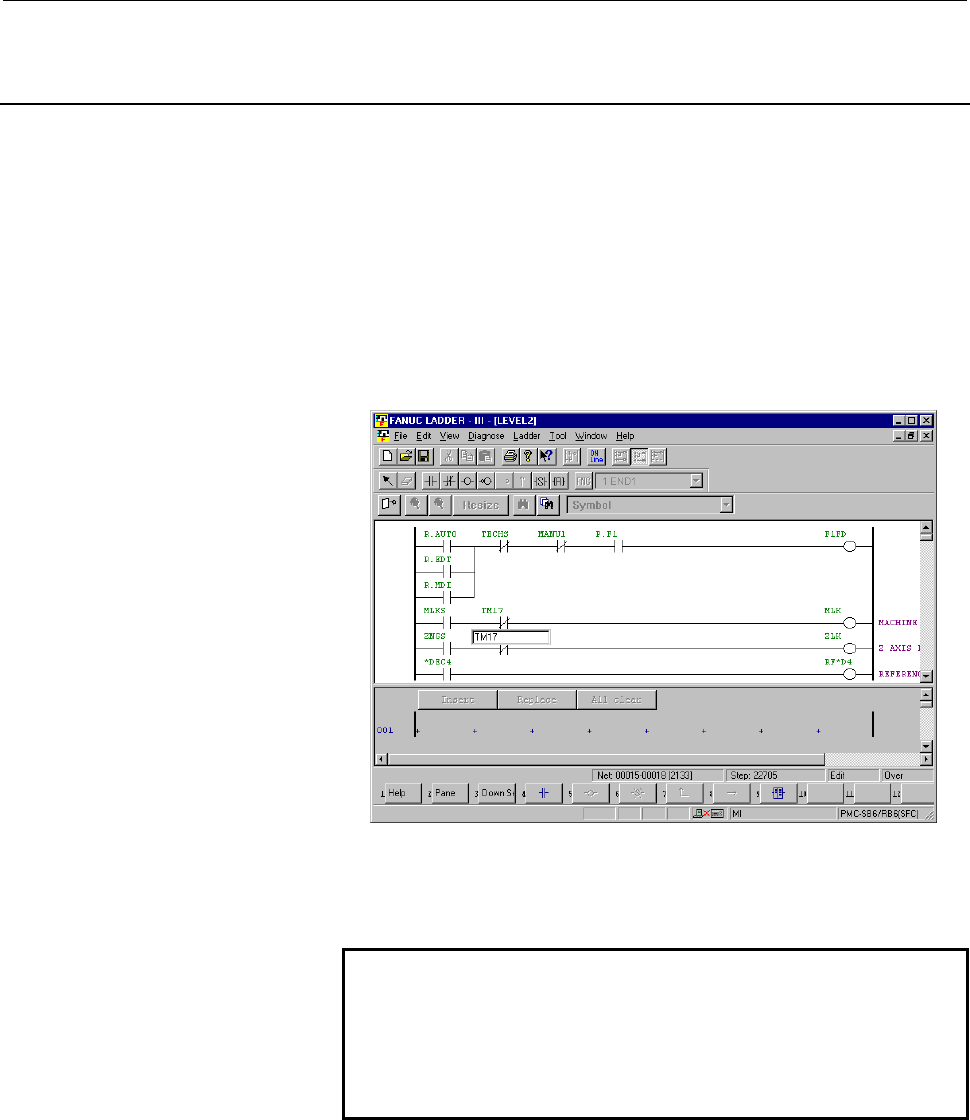

Fig. 3.5.20

3. Change the signal address or function instruction parameter, and

press the [Enter] key.

NOTE

1 You can also enter a symbol as a signal address.

2 You cannot change function instruction numbers or

the first parameters of the function instructions

ADDB, AND, COMPB, DIVB, EOR, MULB, OR,

and SUBB.
