3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 32 -

3.3.2 Opening Programs Opened by Another User

This subsection describes access by multiple users to the same file on

the network.

1 If a user attempts to open a program that is already opened by

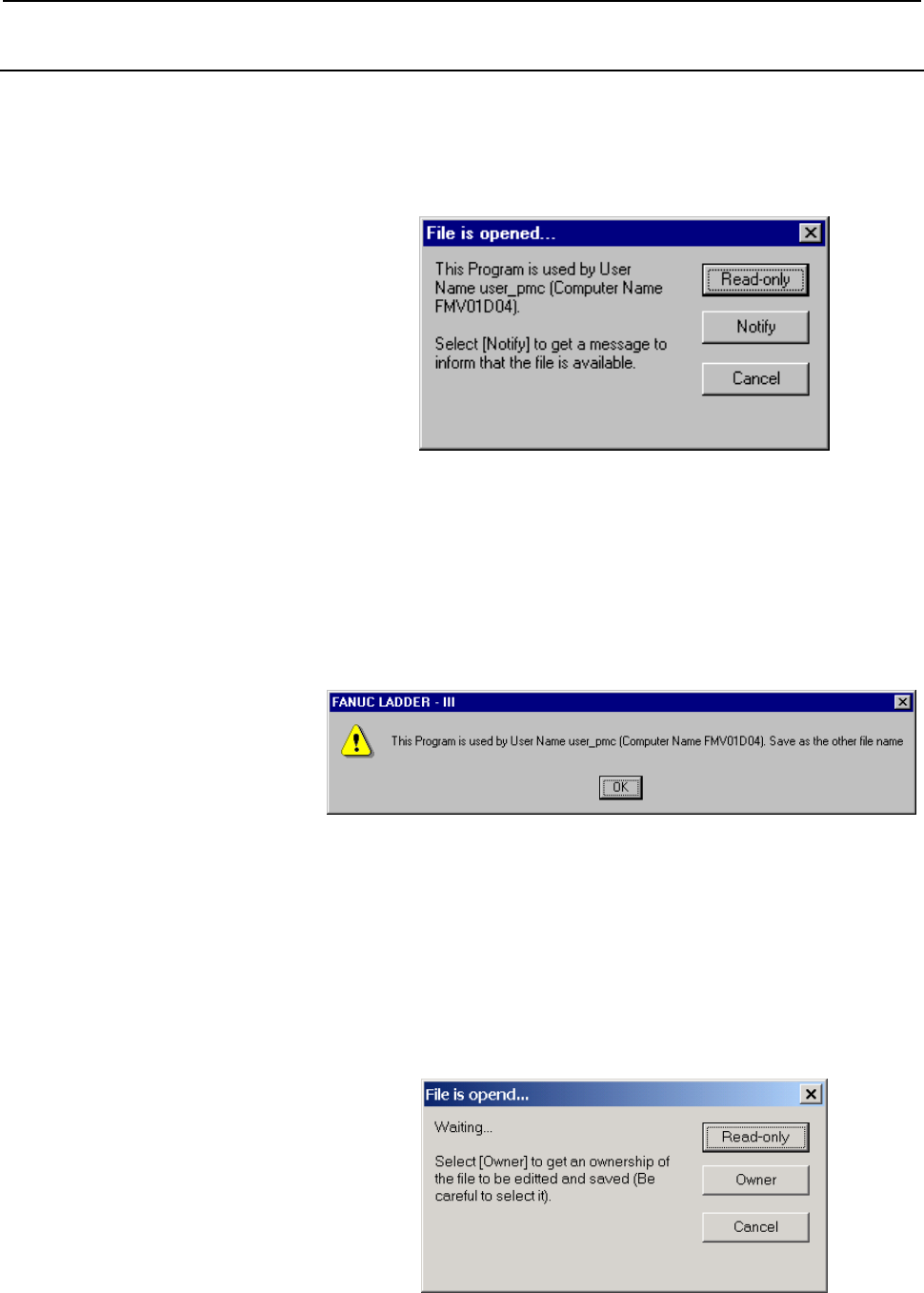

another user, the [File is opened...] screen appears.

Fig. 3.3.2(a)

<Read-only> button

This button opens a file with the read-only attribute. (See

Subsection 3.3.3, "Opening Programs with the Read-only

Attribute.")

An opened file cannot be overwritten. An opened file can be

saved only by assigning a new name to it.

If an attempt is made to save an opened file by specifying

the same name, the following error message appears:

Fig. 3.3.2(b)

<Notify> button

When the first user closes the file, this button displays a

notification message.

<Cancel> button

This button cancels an attempt to open a file.

2 Clicking the <Notify> button displays the [File is opened... -

Waiting...] screen.

Fig. 3.3.2(c)
