4.PRINTING SEQUENCE PROGRAMS B-66234EN/05

- 206 -

Page Feed (Initially selected.)

Line Feed Count

Specify the number (0 to 9) of blank lines to be placed

between addresses (the Initially value is 1).

3. To preview cross-reference printing, click the <Preview> button.

4. To specify cross-reference printing in detail, click the <Details>

button.

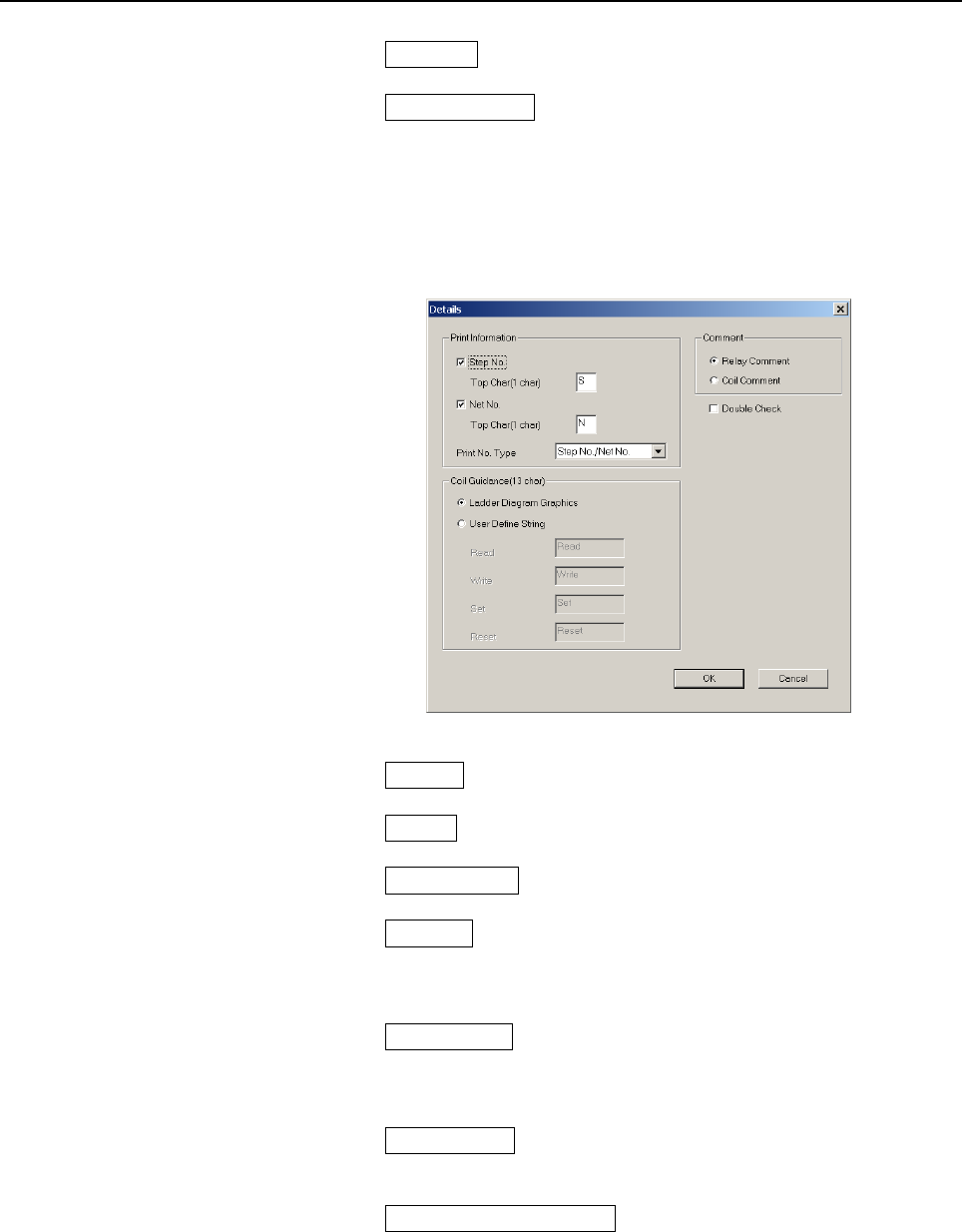

Fig. 4.8.1 (c)

Step No. (Initially selected.)

Net No. (Initially selected.)

Print No. Type (The Initially value is "Step No. /Net No. ".)

Comment

Specify the type of comment you want to print (the Initially

value is <Relay Comment>).

Double Check (Initially not selected.)

Specify whether to check for duplicate coil writing and

duplicate use of the coil write function instruction.

Coil Guidance

(The Initially value is <Ladder Diagram Graphics>.)

Ladder Diagram Graphics

The same graphics as those for ladder diagram printing will

be used.
