FAPT Ladder-III Operators manual Page 575

Operators manual
FANUC LADDER-III
SUPPLEMENTARY OPERATOR’S MANUAL
01 05/01/14 First issue B-66234EN/05-1
EDIT
DATE
DESIG.
DESCRIPTION
43/69
TITLE
DRAW.NO.
SHEET
CUST.
6.1.1 Converts to the External Symbol File
This function outputs the symbol/comment of external symbol file format.
External symbol files are composed of identification code and the comma
separated text file. You can edit the symbol/comment data by the external
application such as Microsoft Excel, Text editor.
The same data as the one explained in “3.15.2 Export of the external symbol
file” is outputted.
Operation

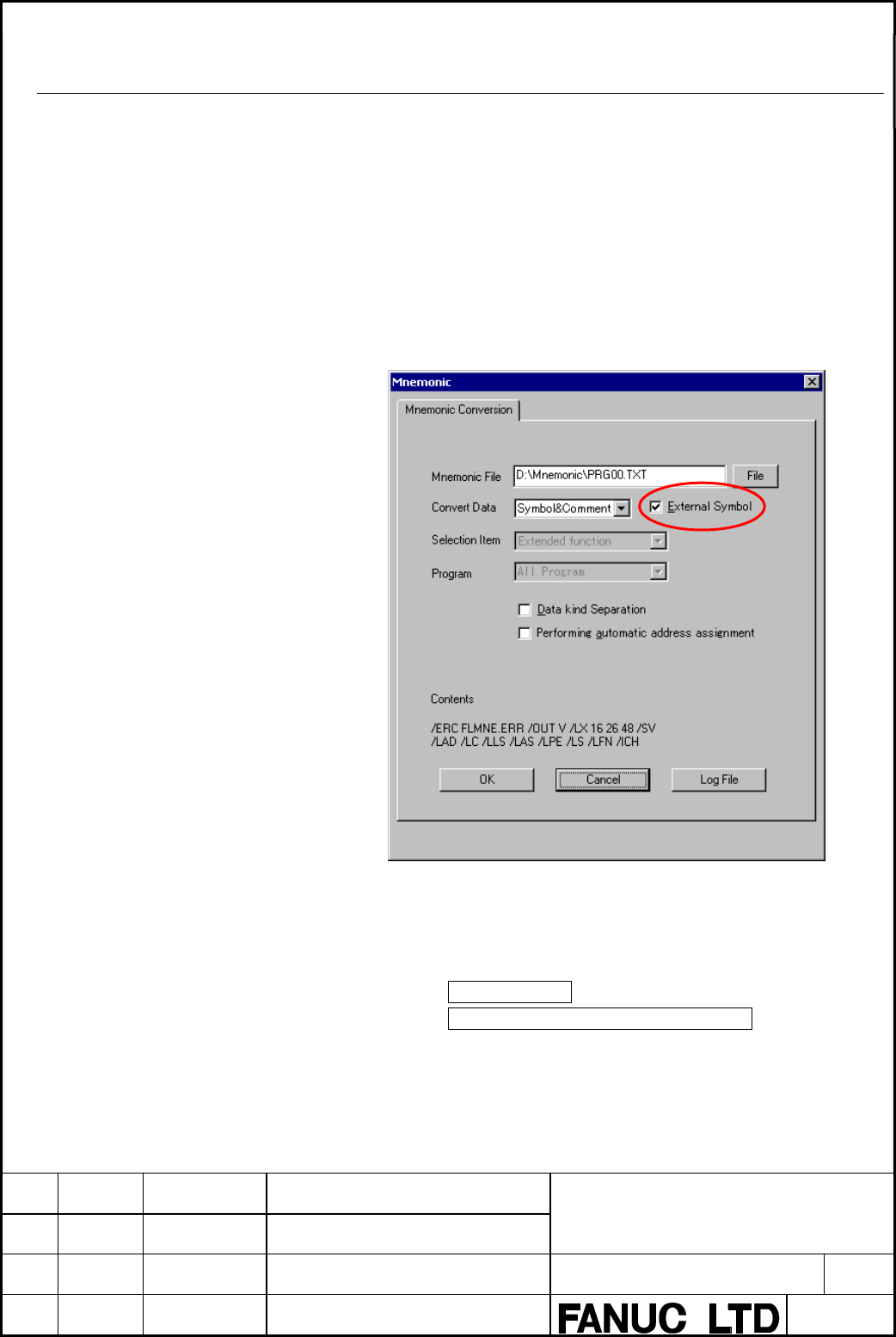

1. Select [Tool]-[Mnemonic Convert...]. Then, the [Mnemonic] screen
appears.
Fig 6.1.1(a)
2. Input the file name to output in the [Mnemonic File].
3. Select the [Convert Data]. Select the “Symbol&Comment”.
4. Check the External Symbol.
5. Check the Performing automatic address assignment if needed.
This item appears when the PMC model is the extended function.
Check :
