5.COMPILATION AND DECOMPILATION B-66234EN/05

- 228 -

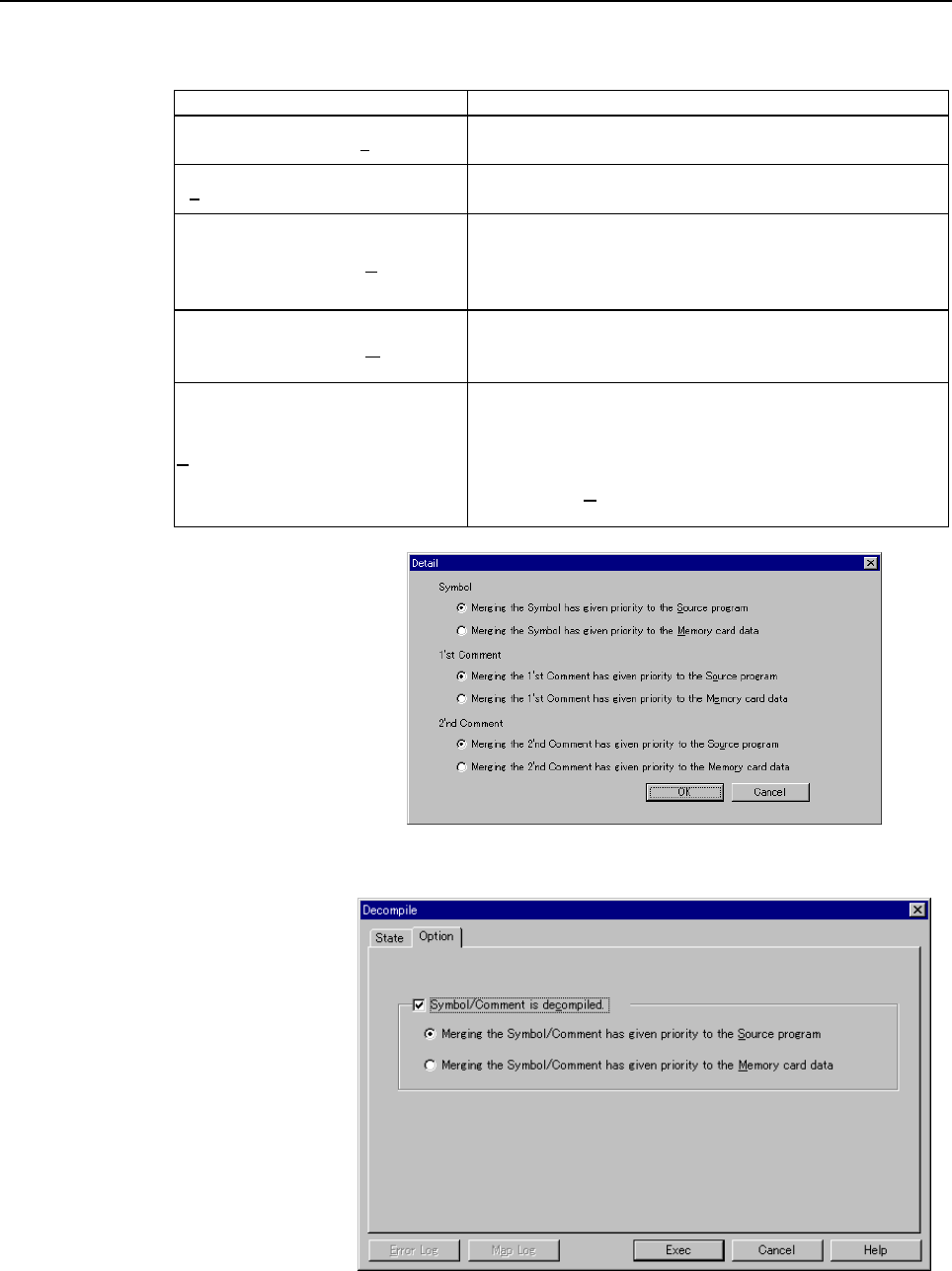

The details of the options are listed below.

Table 5.2 (a)

Option Explanation

Symbol/Comment is decompiled

If not checked, no symbol/comment data is decompiled. The

definition of the source is directly used.

New

The definition of the source program is newly made from the

symbol and comment of object code.

Add(Merging the Symbol/ Comment

has given priority to the S

ource

data)

The symbols of the source program and object code are

merged only for a symbol and comment. If the same symbol

and comment exist, the definition of the source program is

used.

Add(Merging the Symbol/ Comment

has given priority to the M

emory

card data)

The symbols of the source program and object code are

merged only for a symbol and comment. If the same symbol

and comment exist, the definition of the object code is used.

Add

The symbols of the source program and object code are

merged only for a symbol and comment. If the same symbol

and comment exist, the using definition can be separately

selected for symbol, first comment or second comment.

Please push <D

etail> button and select the using definition

on [Detail] dialog box.

Fig. 5.2 (c)

• PMC model which does not support the multiple comments

Fig. 5.2 (d)
