3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 150 -

3.8.5 Tool Bar

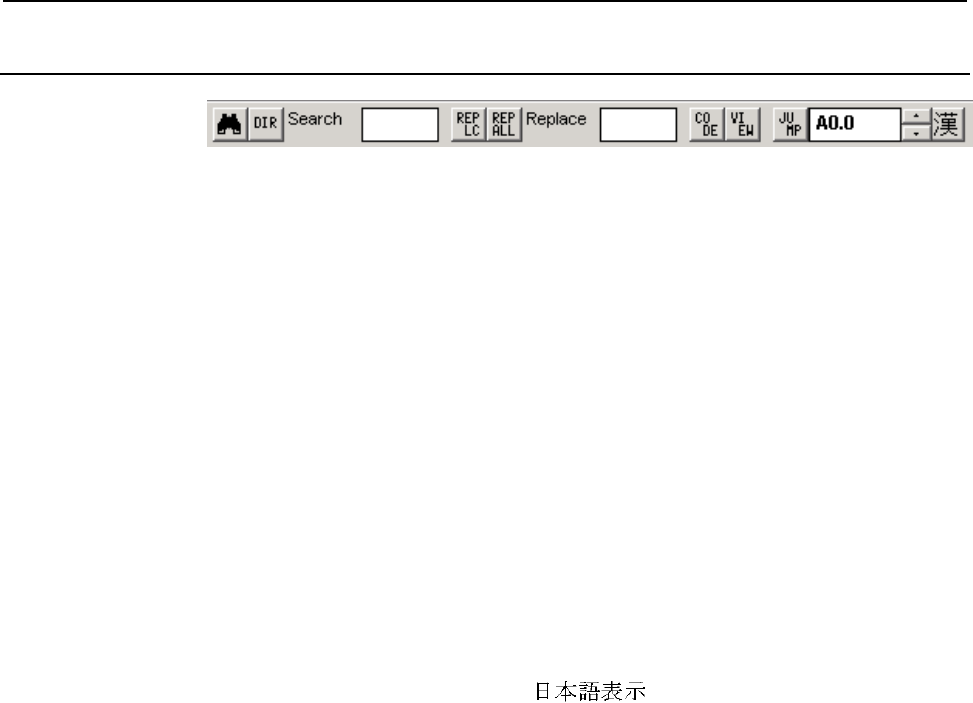

Fig. 3.8.5

<1> Search button

Searches for a character string.

<2> Search direction button

Specifies the direction (upward or downward) in which a search

is to be made.

<3> Find what edit box

Lets you specify what to find.

<4> Replace button

Replaces the occurrences of a specified character string one by

one.

<5> Replace all button

Replaces all the occurrences of a specified character string.

<6> Replace with edit box

Lets you specify a character string for substituting an occurrence

of a specified character.

<7> Code input mode button

Lets you specify message data in code format. Enter a message,

using numeric code (JIS).

Example: 2100

2100 @02467C4B5C386C493D4C2801@

<8> View button

Lets you confirm that the message character string is in such a

format that it is continued on a new line.

It is possible to specify the number of characters to be displayed

per line (32 to 80 characters).

<9> Jump button

Causes a jump to a specified address (A0.0 to A24.7/A124.7).

<10>Jump address character string edit box

Lets you specify a character string as a jump address.

<11>Jump address value up/down button

Increases or decreases the jump address value.

<12>Invalid kanji character check button

Searches for kanji characters not displayable on the NC

downward starting at the cursor position. (When search operation

reaches the end, search operation resumes from the beginning.)

This button is enabled only with those PMC models that have a

VGA indicator.
