B-66234EN/05 7.INPUT/OUTPUT

- 297 -

7.6 WRITING SEQUENCE PROGRAMS INTO F-ROM

This section describes how to back up a program edited in online

mode or a program stored in the PMC to F-ROM of the CNC.

7.6.1 Procedure

1 Select [Tool] - [Backup].

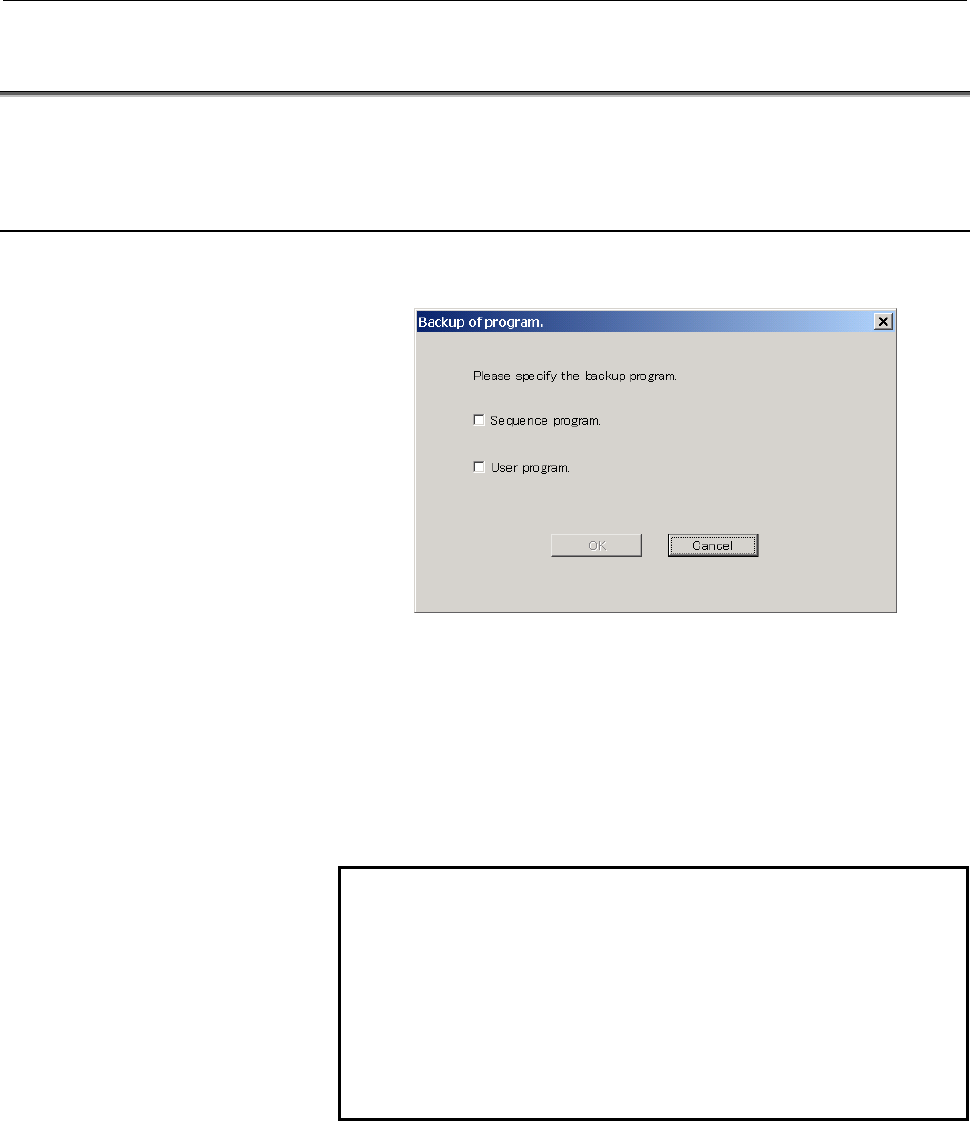

The [Backup of program] screen appears.

Fig. 7.6.1

2 Choose the check boxes of the programs you want to back up.

When the C language board is not mounted, you cannot choose

"User C program."

3 To back up a program, click the <OK> button.

When backup is completed successfully, the [Backup of the

program ended] message appears.

To cancel the backup of a program, click the <Cancel> button.

NOTE

1 Since the Power Mate-D (PMC-PA3) stores

programs in S-RAM, the operation described above

is not needed.

2 For other than the Power Mate-D (PMC-PA3), if the

CNC is powered down without first backing up the

programs, the edited programs and stored

programs are lost. Back up the programs, before

powering down the CNC.
