9.DIAGNOSIS B-66234EN/05

- 318 -

9.2.2 Toolbar

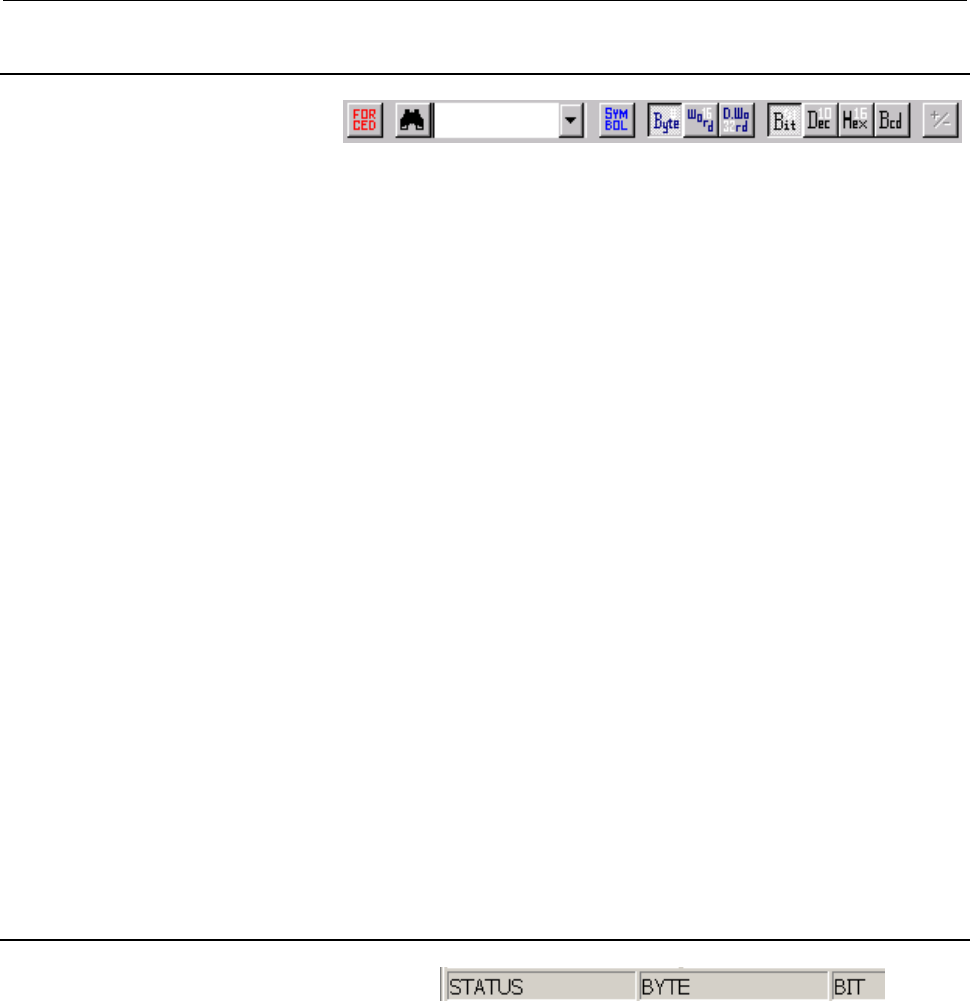

Fig. 9.2.2

<1> Switches between the status screen and forced I/O screen.

<2> Search button

<3> Combo box for inputting the character string for which a search

is to be made

<4> Symbol indication (off ↔ on)

<5> Display format: Byte

<6> Display format: Word

<7> Display format: Double word

<8> Display type: Binary

<9> Display type: Decimal

<10>Display type: Hexadecimal

<11>Display type: BCD

<12>Sign indication (off ↔ on)

(Valid only when decimal notation is set as the display type.)

9.2.3 Status Bar

Fig. 9.2.3

<1> Selection mode

[Status] or [Force] is indicated.

<2> Display format

[Byte], [Word], or [Dword] is indicated.

<3> Display type

[Bit], [Decimal], [Hex], or [Bcd] is indicated.

<1> <2> <3> <4> <5> <6> <7> <8> <9><10><11> <12>

<1> <2> <3>
