B-66234EN/05 6.MNEMONIC EDITING

- 241 -

6.1 CONVERTING SOURCE PROGRAMS TO MNEMONIC

FILES

This section describes the procedure for converting a source program

to a mnemonic file that can be edited with a text editor.

Procedure

1. Select [Tool] - [Mnemonic Convert…]. Then, the [Mnemonic –

Mnemonic Conversion] dialog appears.

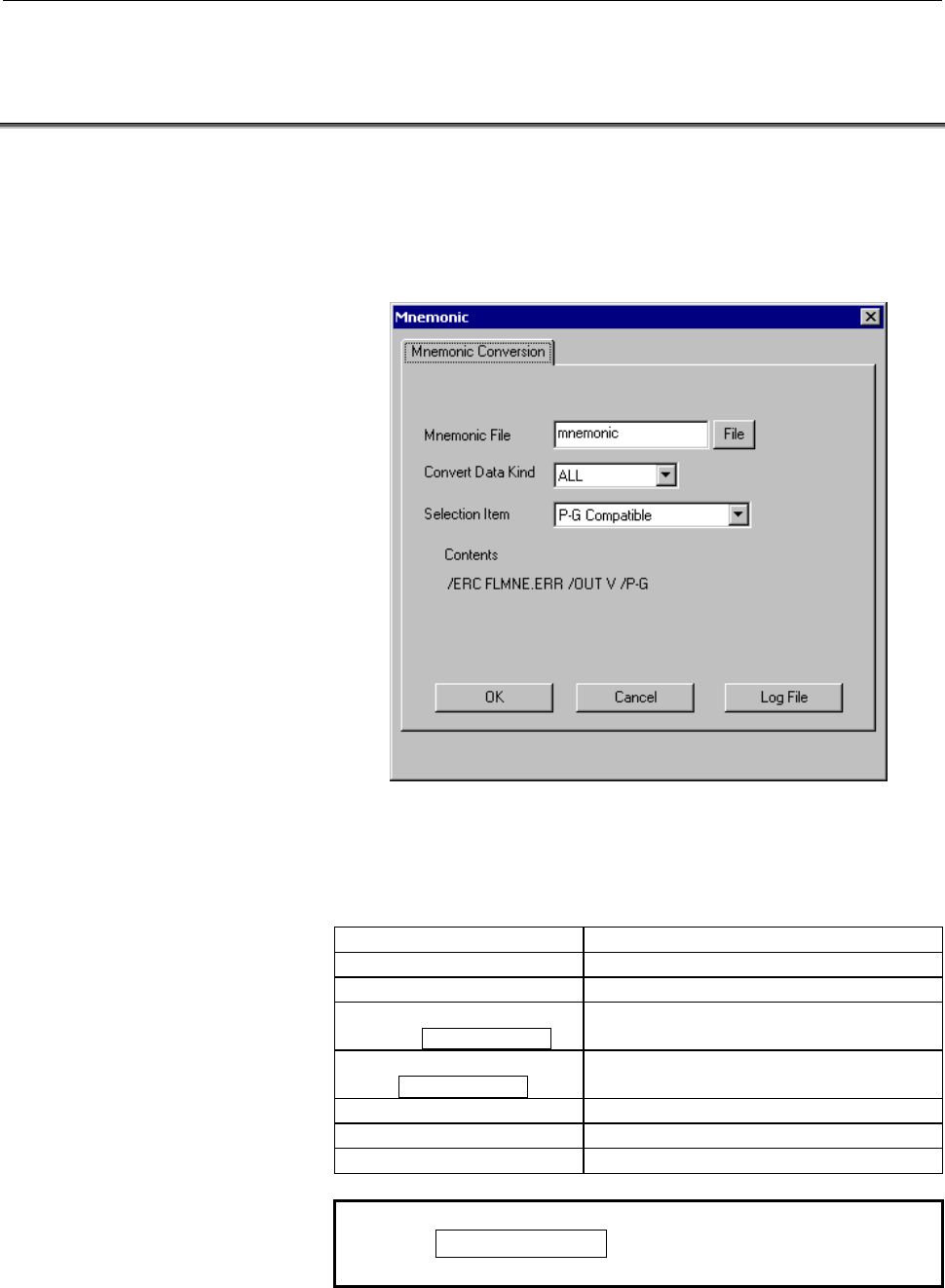

Fig. 6.1

2. Enter a mnemonic file name in [Mnemonic File].

3. Select [Convert Data Kind]. The following items can be selected:

Table 6.1(a)

ALL Converts all source programs.

System Parameter Converts only system parameters.

Title Converts only titles.

Symbol&Comment

No check External Symbol

Converts only symbols and comments.

Symbol&Comment

Check External Symbol

Converts only symbols and comments into

the external symbol file.

Ladder Converts only ladder programs.

I/O Module Converts only I/O modules.

Message Converts only messages.

NOTE

The External Symbol is displayed if the external

symbol file output function is supported.
