11.EXTENDED SYMBOL/COMMENT FUNCTION B-66234EN/05
- 424 -
11.11 SIGNAL STATUS
Procedure

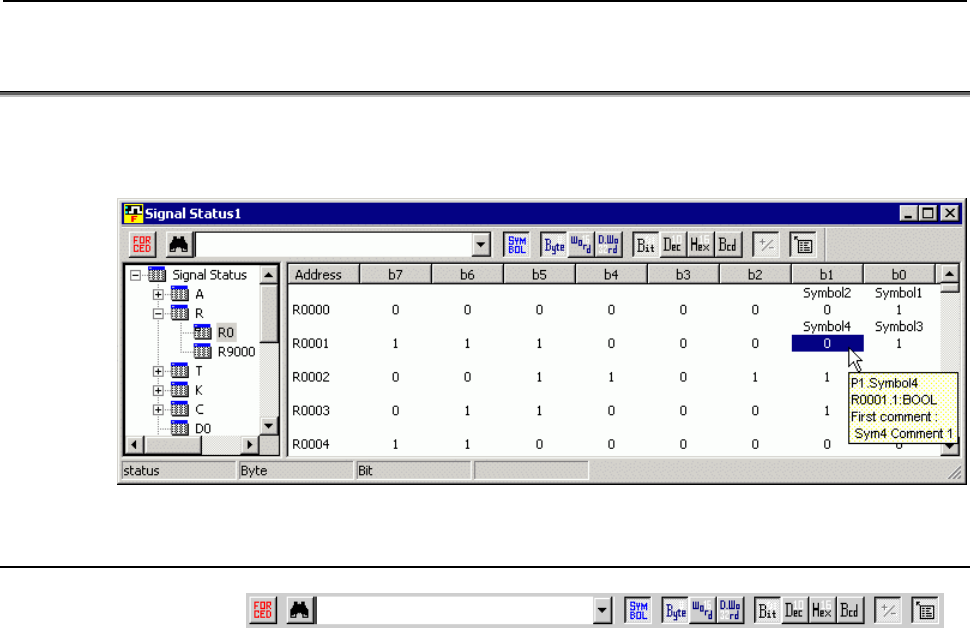

1. Select [Diagnose] – [Signal Status]. The [Signal Status] screen
appears.
Fig. 11.11
11.11.1 Toolbar
(1) (2) (3) (4) (5) (6) (7) (8) (9)(10(11)(12)(13)
Fig. 11.11.1
<1> Switches between the status screen and forced I/O screen.
<2> Search button
<3> Combo box for inputting the character string for which a search
is to be made.
To search a local symbol “ABC” in P1, Input ”P1.ABC”.
<4> Symbol indication (off ⇔ on)
<5> Display format: Byte
<6> Display format: Word
<7> Display format: Double word
<8> Display type: Binary
<9> Display type: Decimal
<10> Display type: Hexadecimal
<11> Display type: BCD
<12> Sign indication (off ⇔ on)
(Valid only when decimal notation is set as the display type.)
<13> ToolTips indication (off ⇔ on)
When the cursor is on an address, detailed information of the
address is shown if ToolTips indication is turned on.
