7.INPUT/OUTPUT B-66234EN/05

- 288 -

A PMC parameter file once transferred to a user file

folder can be restored by using the export function.

For the export function, see Section 3.15,

"EXPORTING PROGRAMS."

NOTE

Only PMC-SC3/SC4 allow loading and storing of

language programs. Those types of PMCs to which

a C language board is attached do not allow

loading and storing of language programs.

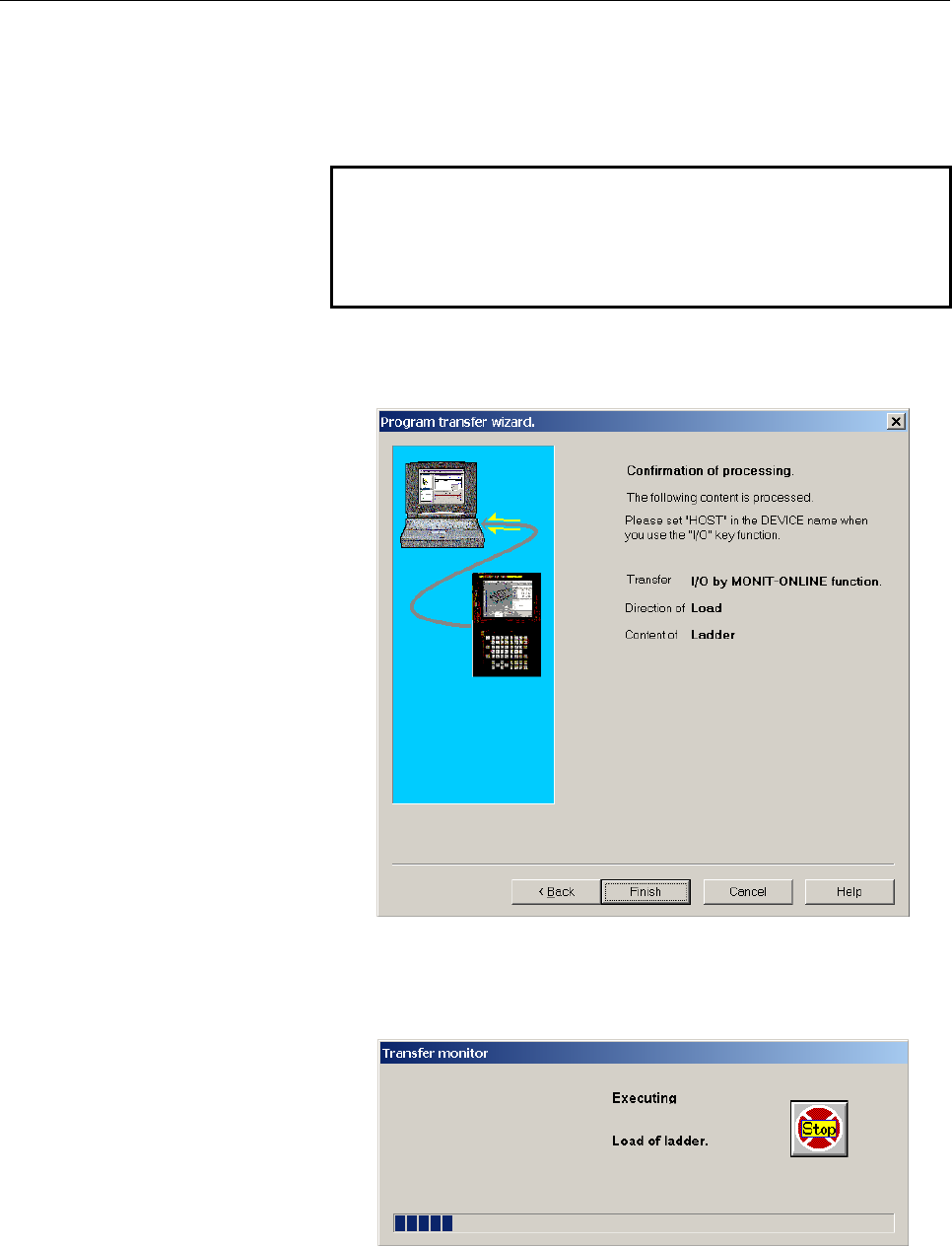

2-2 Click the <Next> button. The [Program transfer wizard

Confirmation of processing] screen appears.

Fig. 7.3.1(b)

2-3 Check the setting items. Click the <Finish> button. Then,

the [Transfer monitor] screen appears, and then the program

is transferred.

Fig. 7.3.1(c)
