FAPT Ladder-III Operators manual Page 441

Operators manual
B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION
- 415 -
4. When compiling, the address is assigned.

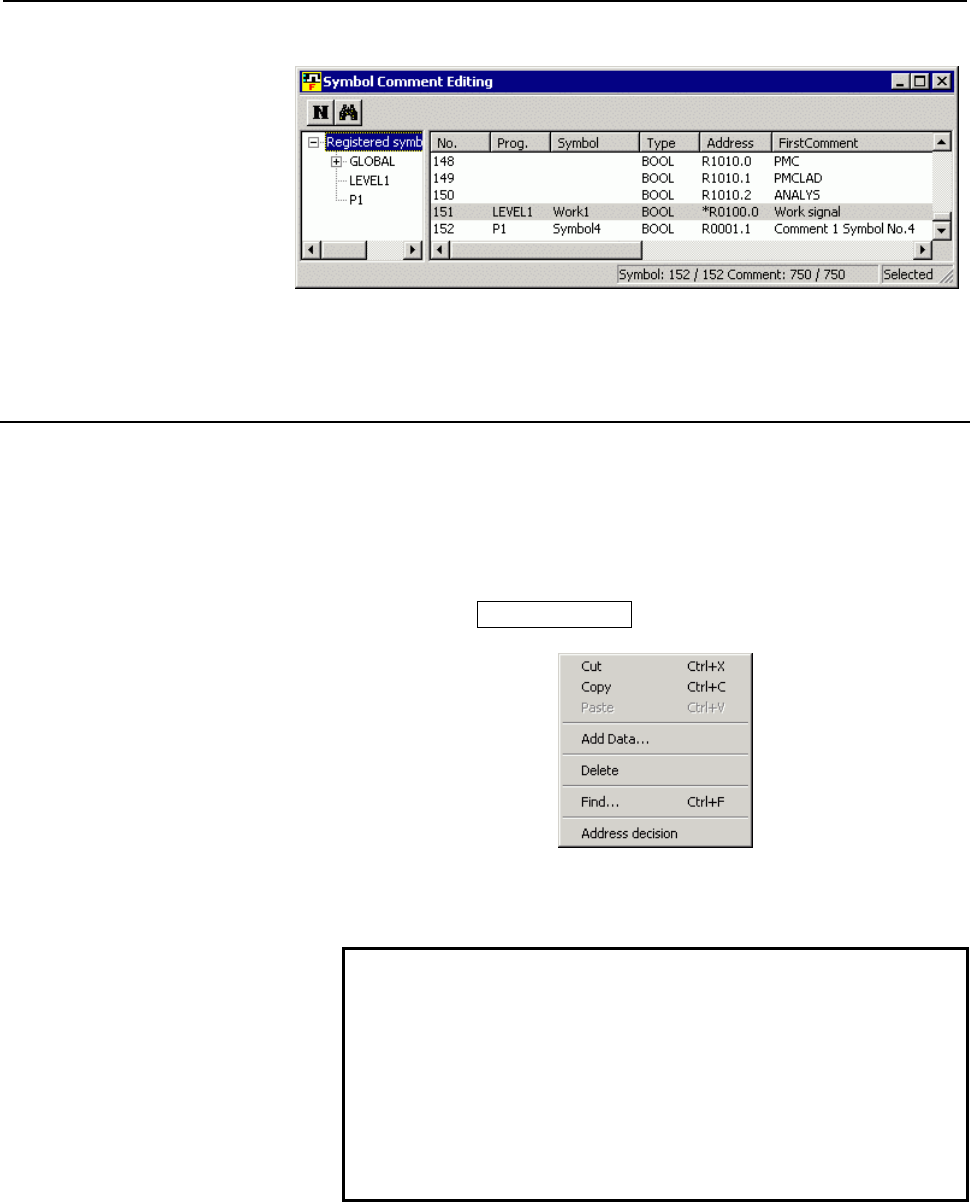

Fig. 11.4.2(b)
The * mark adheres to a head of address.
11.4.3 Address Decision
The address with * mark which assigned automatically is assigned at
each compilation. If an address is not changed, the address is decided.
Procedure
1. Double-click the <Symbol comment> item in the [Program List]
screen. The [Symbol Comment Editing] screen appears.
2. Click the Address decision of context menu that is displayed by
right-clicking the assigned address.
Fig. 11.4.3
The * mark of the address disappears.
NOTE
1 When setting the range of address by an automatic
assignment on the System Parameter screen,
please set the range of unused address in a ladder.
2 The address is assigned according to the symbol
type. Therefore, please don't use this function for
the symbol of a functional instruction with the data
length which is not consistent with the type of
symbol.
