FAPT Ladder-III Operators manual Page 57

Operators manual
B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS
- 31 -
3.3 OPENING EXISTING PROGRAMS
This section describes how to open an existing sequence program
(LAD file).
3.3.1 Procedure
1 Select [File] - [Open Program].
The [Open] screen appears.

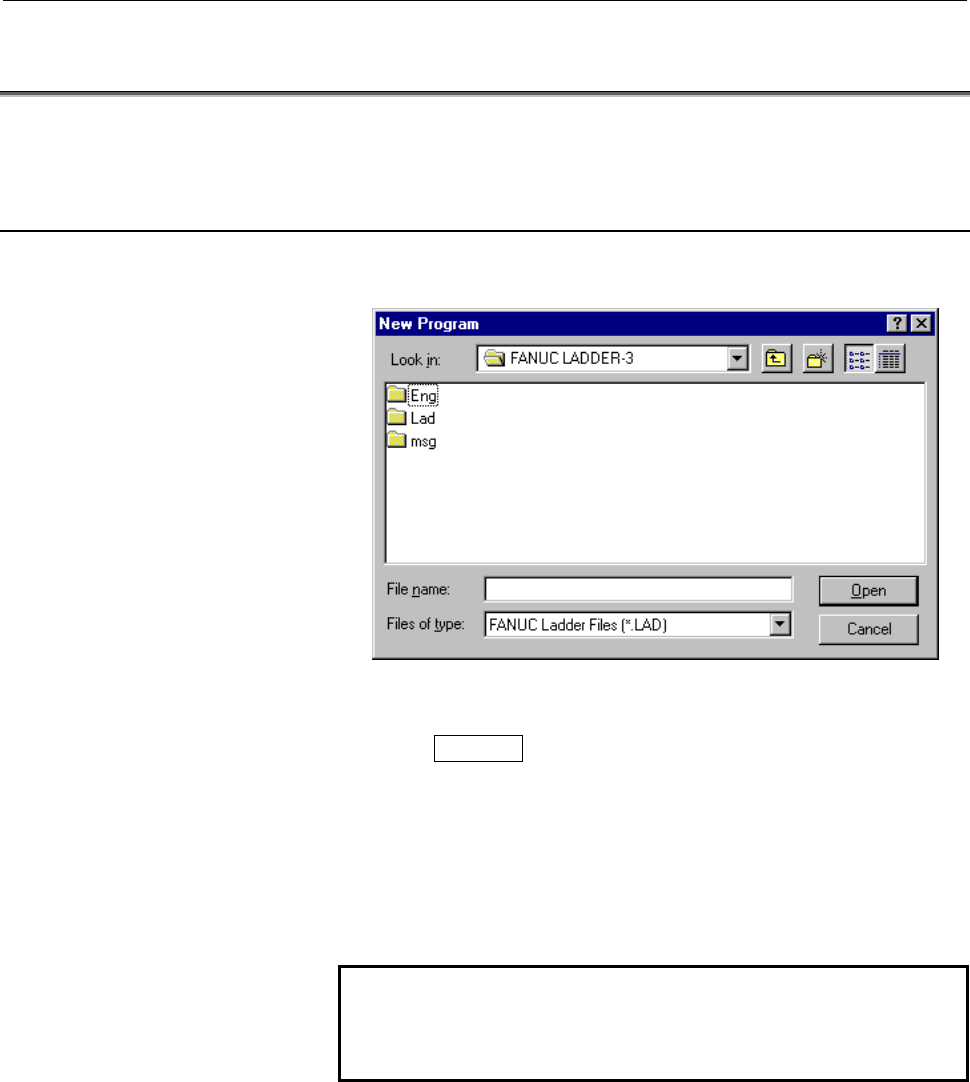

Fig. 3.3.1
1-1 Set the necessary data.
File name
Enter the name of the existing program file you want
to open. Use the extension .LAD. You can omit it,
however.
2 To open the program, click the <Open> button.
The [Program List] screen appears.
To quit, click the <Cancel> button.
NOTE
On the [Open] screen, the last file folder used for
creating or modifying a ladder program is displayed
in [Look in:].
Previous page
Next page

Contents Summary of FAPT Ladder-III Operators manual
