B-66234EN/05 9.DIAGNOSIS

- 333 -

9.3.6.5 Setting screen of the selectable I/O link assignment function

On this setting screen, set the unique group of I/O devices to be

connected to each machine.

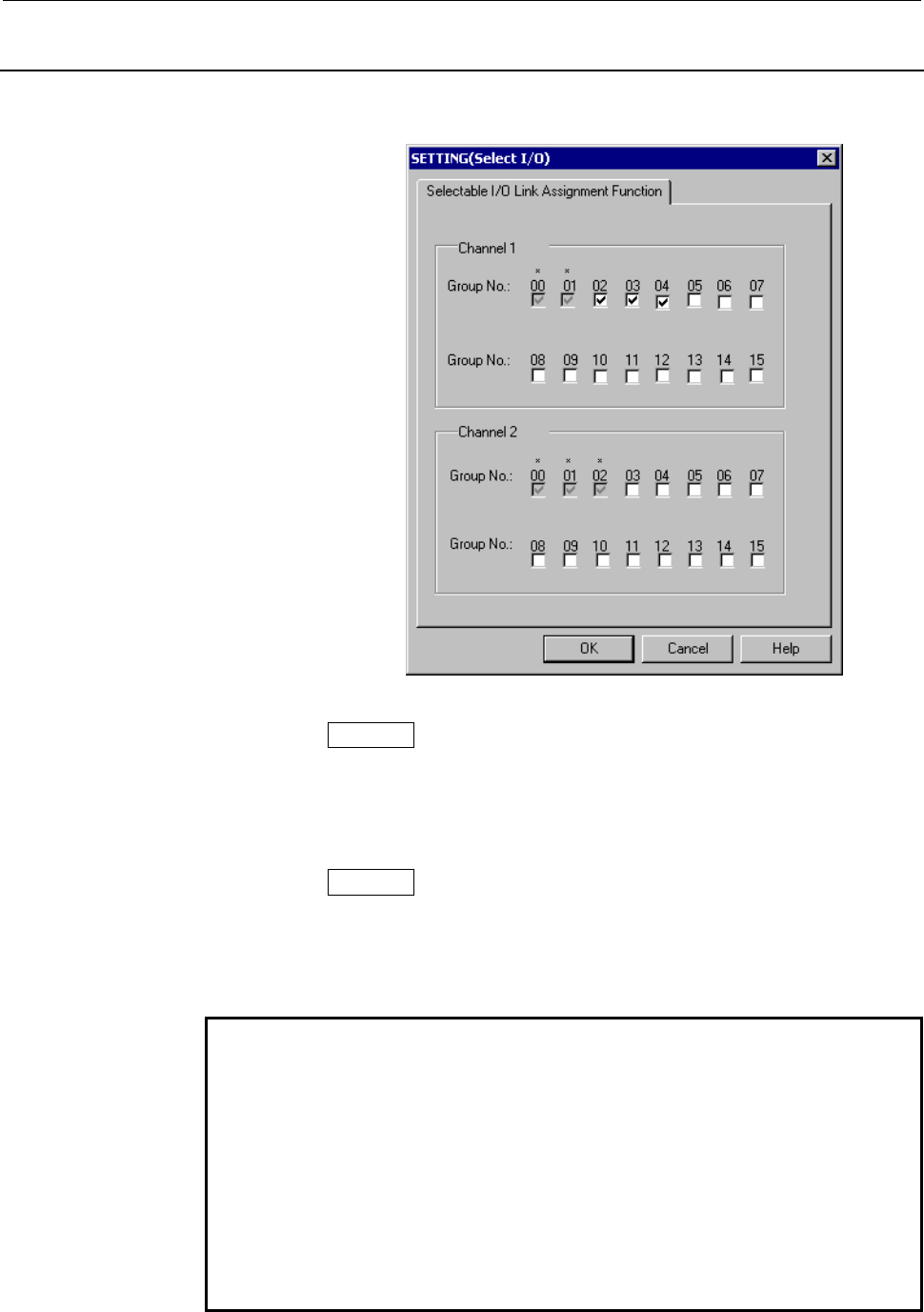

Fig. 9.3.6.5

Channel 1

Select the group to which the I/O link assignment data for

channel 1 is to be made valid.

Checked : The assignment data is valid.

Not checked : The assignment data is invalid.

Channel 2

Select the group to which the I/O link assignment data for

channel 2 is to be made valid.

Checked : The assignment data is valid.

Not checked : The assignment data is invalid.

NOTE

1 The basic groups that have been specified for each "Basic

Group Count" on the system parameter screen will have their

numbers displayed gray with an asterisk mark (*) shown above

them. These groups are noneligible for this settings.

2 Channels for which the "selectable I/O link assignment

function" is disabled on the system parameter screen are

displayed gray. These channels are noneligible for this setting.

3 When you click the [OK] button, the warning message shown in

Subjection 9.3.6.3 reappears. To reflect the settings to the

keep relays, click the [OK] button below the warning message.
