11.EXTENDED SYMBOL/COMMENT FUNCTION B-66234EN/05

- 408 -

Operation

1. Click [O

ption…] in [Tool] menu.

2. Click [Compile] tab in [Option] window.

3. Click to check Multiple use check of the symbol a

ddress.

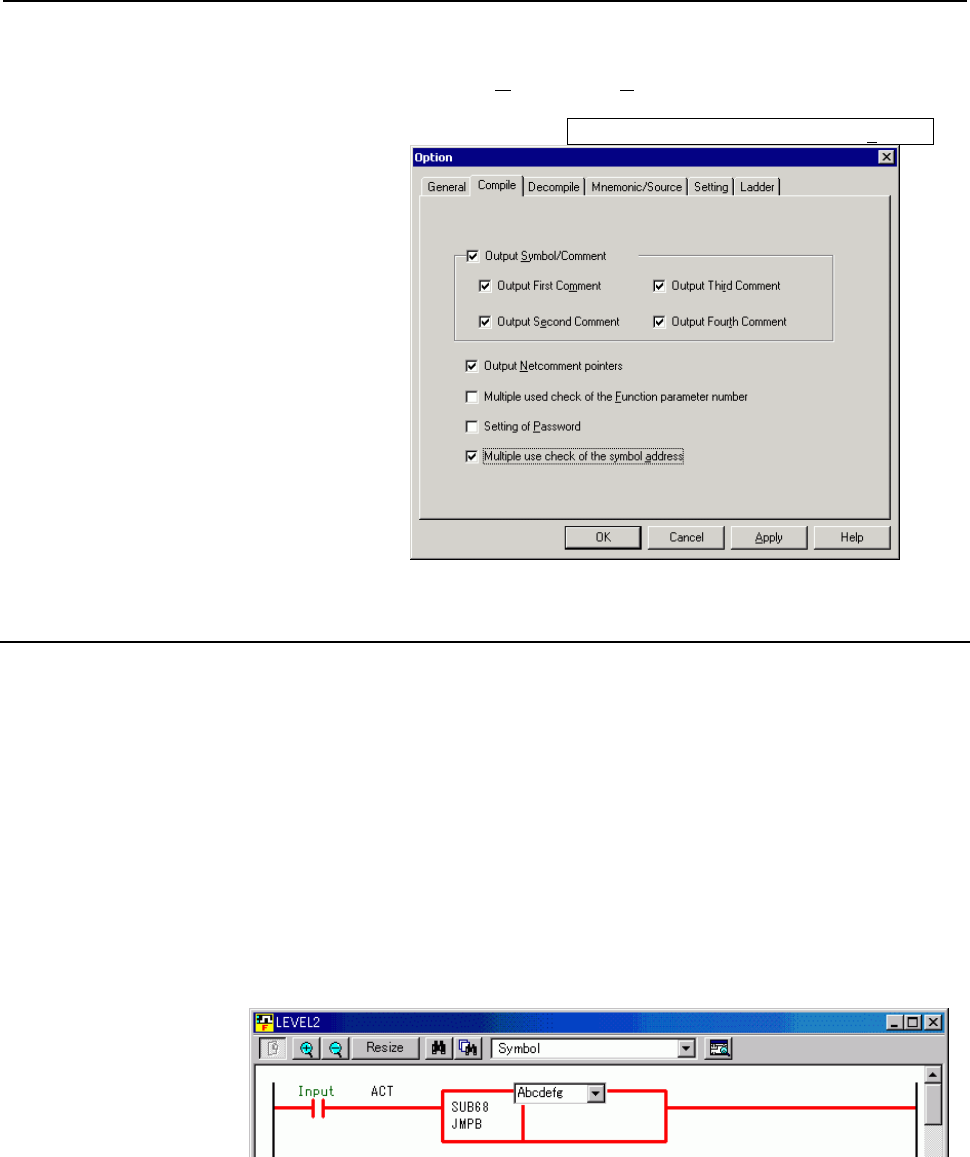

Fig. 11.3.8(a)

11.3.9 Input of Jump Label by Symbolic Name

This function enables the following programming.

• You can input directly a symbol as the label of JMPB/ JMPC/

LBL instructions without assignment of specific label number.

• If you input the undefined symbol as the label on the offline

editing screen, the new symbol data definition screen is opened

automatically and the program name, L address and LABEL type

are input automatically.

• When you compile the ladder program, appropriate L address is

assigned automatically if setting of specific L address is not done

for the symbol.

Ladder Edit

1. Input the label of the JMPB/JMPC/LBL instructions.

Fig. 11.3.9(a)
