11.EXTENDED SYMBOL/COMMENT FUNCTION B-66234EN/05

- 398 -

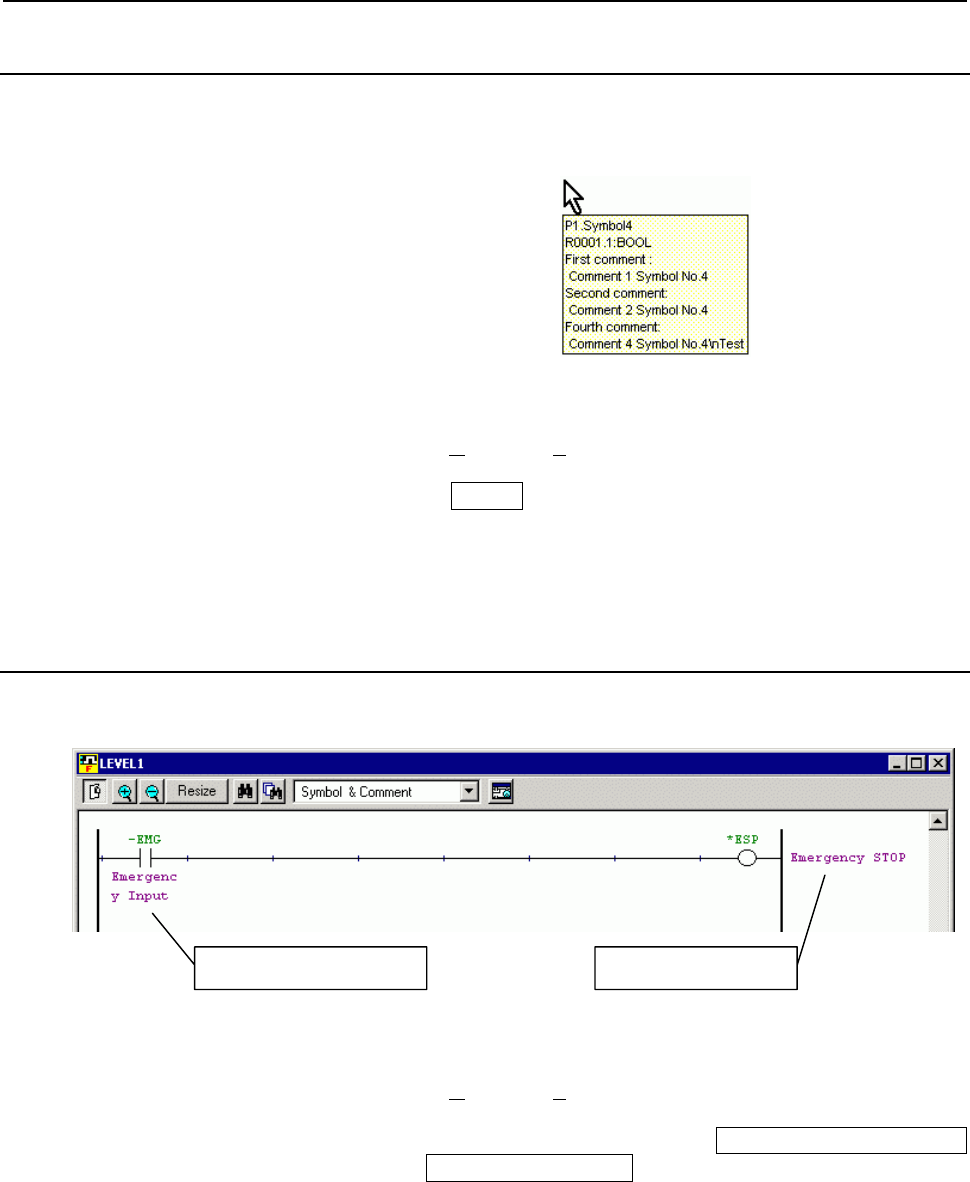

11.3.4 Tool Tip

When you move cursor onto a basic instruction or a parameter of a

functional instruction, related symbol, address, and comment are

displayed.

Fig. 11.3.4

Operation

1. Click [O

ption] in [Tool] menu.

2. Click [Ladder] tab in [Option] window.

3. Check Tool tip.

In cases below, tool tip will not appear:

• Symbol is not defined (undefined symbol)

• Symbol is defined, but its address is not assigned yet.

11.3.5 Comment of Contact and Coil

You can select the comments to be displayed with associated contacts

and coils.

Comment for contact Comment for coil

Fig. 11.3.5

Operation

1. Click [O

ption] in [Tool] menu.

2. Click [Ladder] tab in [Option] window.

3. Choose comment in the list-boxes Show comment of Contact

and Show comment of Coil.
