FAPT Ladder-III Operators manual Page 191

Operators manual
B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS
- 165 -
ROM Format File
A ROM format file is imported. It is written over a
memory card file (MCARD) for the currently open
sequence program.
Handy-file Format File
A Handy file format file is imported. It is written over
a memory card file (MCARD) for the currently open
sequence program.
User File
An arbitrary user file is imported to the user file folder
(MyFladder) for the currently open sequence program.
See Subsection 3.1.3, "Work Folders and Online
Program Files," for an explanation about the user file
folder.
NOTE

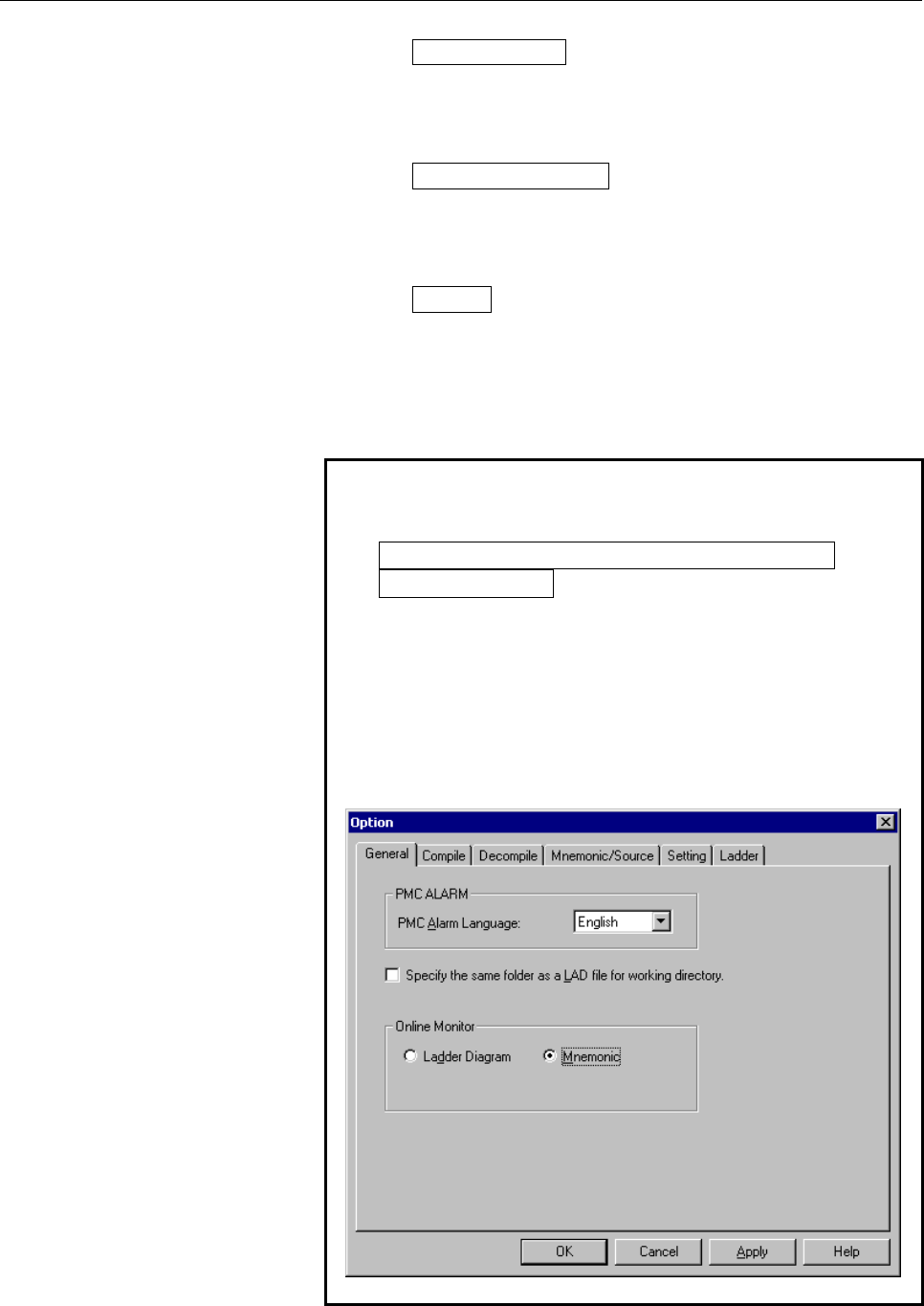

As to the import folder,
you can choose the default of the import folder by
the Specify the same folder as a LAD file for
working directory in the [General] tab of the
option.(select the [Tool] - [Option...])
Checked.........The same folder as the LAD file.
(Initial value) It is useful when saving at the same
folder as the LAD file.
Not checked ...The folder stored previously.
It is useful when saving to a
specified folder each time.
