B-66234EN/05 11.EXTENDED SYMBOL/COMMENT FUNCTION

- 389 -

11.2 EDITING SYMBOL AND COMMENT

• It is possible to display and edit Symbol and comment.

• It is possible to display the list of the registered symbol.

• It is possible to add, delete, change and search symbol.

• It is possible to create NULL symbol (only comment is defined

to address without symbol)

Procedure

1. Double-click the <Symbol comment> item on the [Program List]

screen.

The [SYMBOL/COMMENT] screen appears.

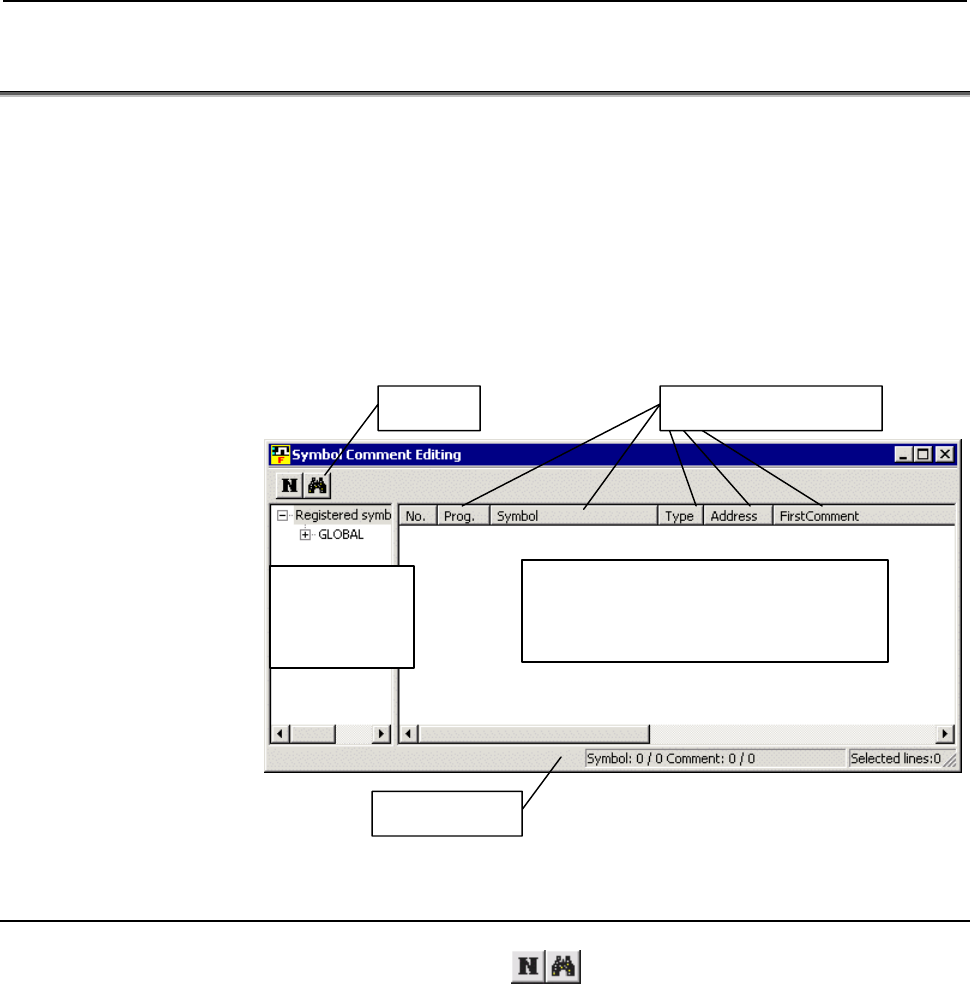

Status bar

Symbol comment display window

Display

selection

window

Tool bar It rearranges by click.

Fig. 11.2

11.2.1 Toolbar

(1) <Add New Data> button

The [New Data] screen appears.

(2) <Search> button

The [Search] screen appears.

(1) (2)
