3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 126 -

End of parallel branch

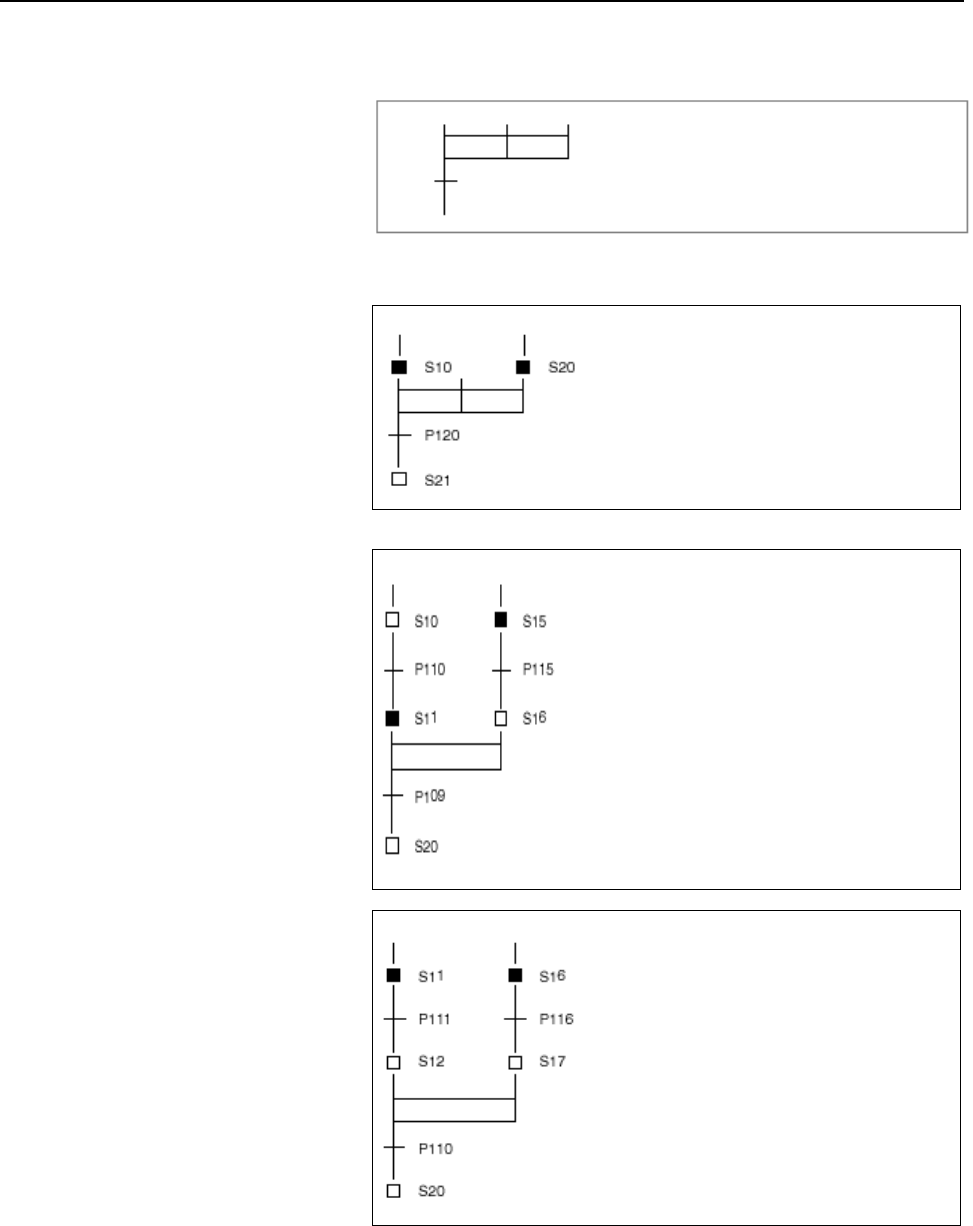

Two or more flows that branched out gather into one flow.

• How parallel flows gather again is explained below.

• How wait processing occurs is explained below.

If transition P120 is satisfied, the processing

of steps S10 and S20 is terminated, and step

S21 becomes active.

Even if transition P109 is satisfied, transition

does not occur to S20 unless S11 and S16

are active.

If P109 is satisfied when both S11 and S16

are active, the processing of S11 and S16 is

terminated, and step S20 becomes active. In

this case, P109 contains the end conditions

for both S11 and S16.

If you want to set separate end conditions

for steps S11 and S16, specify P111 and

P116 as end conditions, and describe S12

and S17 as dummy steps, as shown on the

left.

Step and subprogram numbers must be

specified for a dummy step, too. In addition,

P110 must be specified as a dumm

transition that is always on.

(Dummy)

(Dummy

)
