FAPT Ladder-III Operators manual Page 634

Operators manual
FANUC LADDER-III
SUPPLEMENTARY OPERATOR’S MANUAL
01 05/03/29 First issue B-66234EN/05-2
EDIT
DATE
DESIG.
DESCRIPTION
33/39
TITLE
DRAW.NO.
SHEET
CUST.

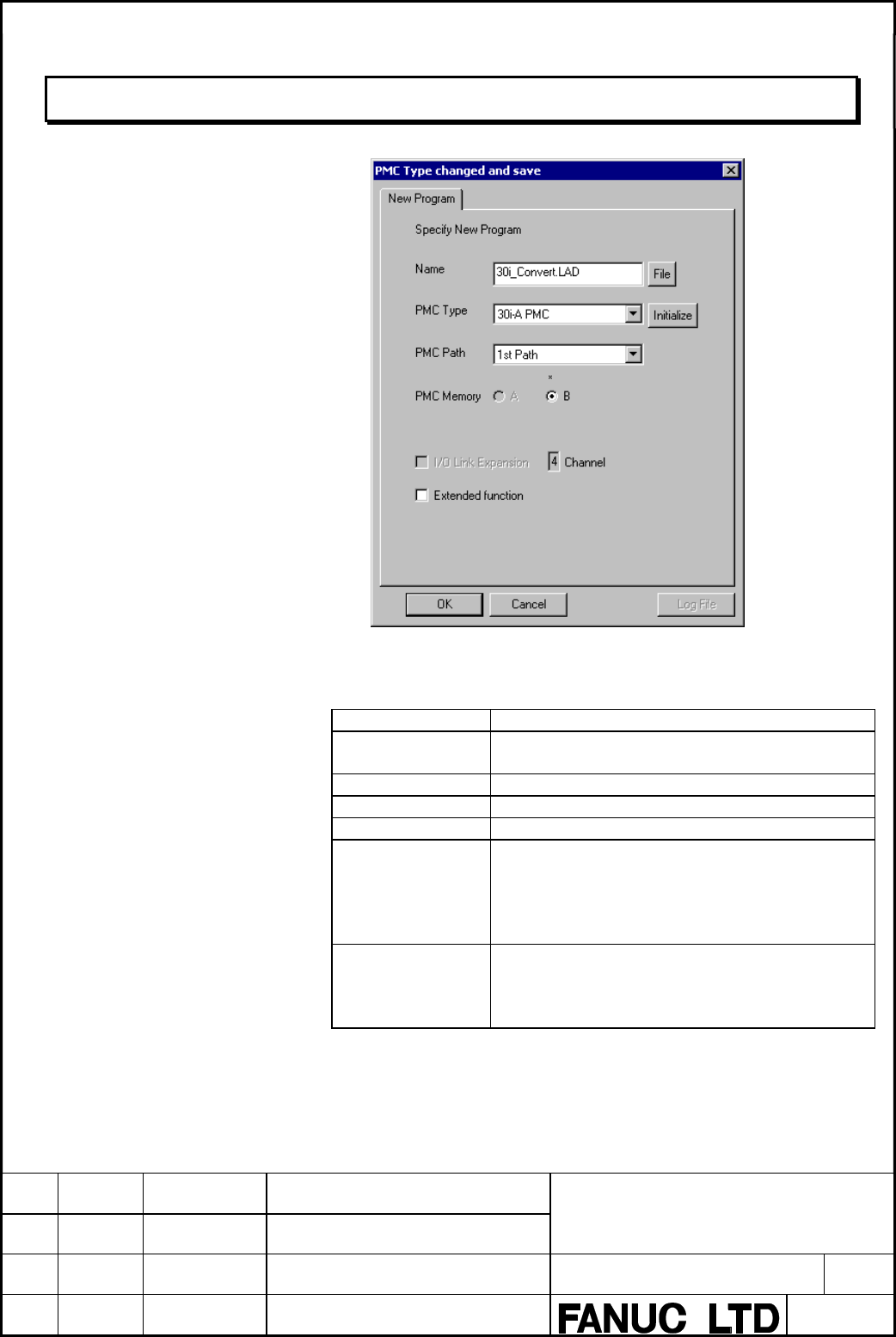

Fig. 3.18(c)
Table 3.18(b)
Item Explanation
Name Enter the new name of a program file you want to
create.
PMC Type Select a PMC type to change.
PMC Path Select a PMC path to change.
PMC Memory Select a PMC memory to change.
I/O Link Expansion Check this check box to enable the I/O Link expansion
function after selecting a model that allows multiple
channels to be set.
(This item is effective when the PMC type that can use
the multiple channels is selected.)
Extended function In case of using the extended Symbol/Comment
function, check this check box.
(This item is effective when the PMC type that can use
the extended function is selected.)
Replace "Fig. 3.18(c)" and "Table 3.18(b)" of "3.18 PMC TYPE CHANGED AND SAVE".
