3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 184 -

3.18 PMC TYPE CHANGED AND SAVE

You can convert the PMC model easily by saving the opened program

after changing the PMC type to the specified one.

Procedure

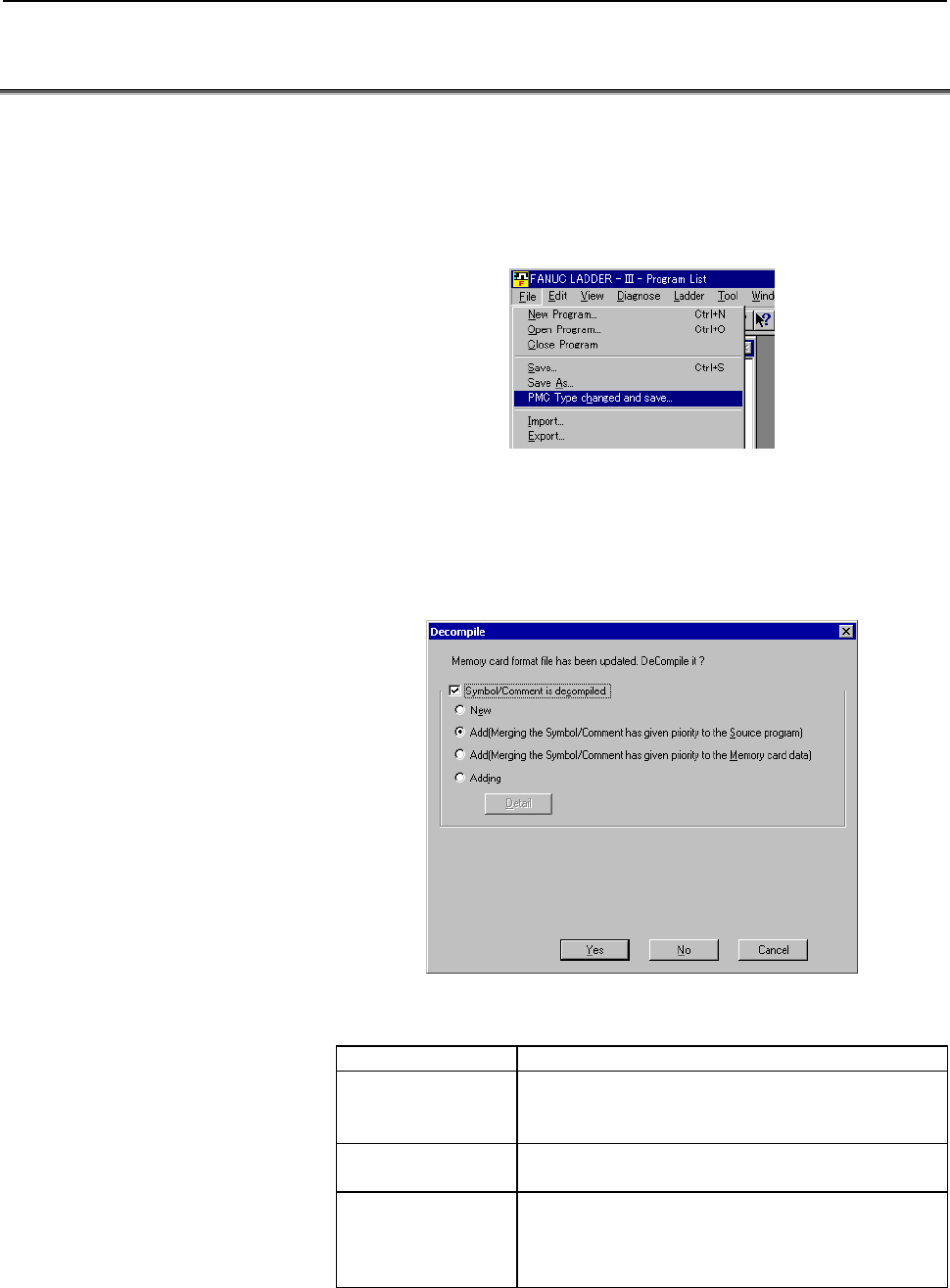

1. Select [File]-[PMC Type changed and save]. The [PMC Type

changed and save] dialog appears.

Fig. 3.18(a)

2. Enter the program name and the PMC type which wants to

change.

3. Click the <OK> button.

The following dialogs are displayed when a memory card format

data newer than the source program exists.

Fig. 3.18(b)

Table 3.18(a)

Item Explanation

Symbol/Comment is

decompiled

If not checked, no symbol/comment data is

decompiled. The definition of the source is directly

used.

New The definition of the source program is newly made

from the symbol and comment of object code.

Add(Merging the

Symbol/ Comment

has given priority to

the Source data)

The symbols of the source program and object code

are merged only for a symbol and comment. If the

same symbol and comment exist, the definition of

the source program is used.
