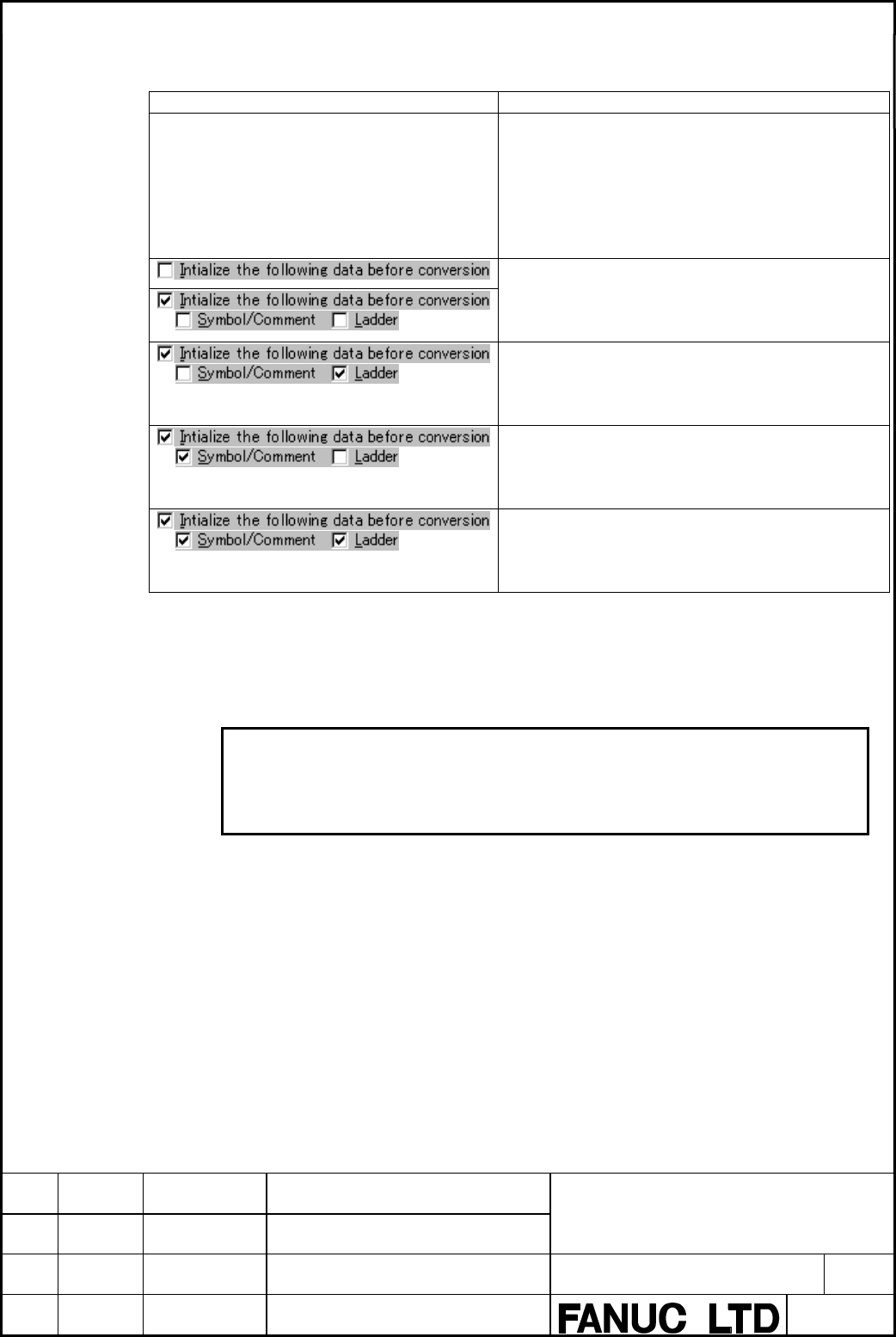

2. Input the each item.
Mnemonic File Input the created mnemonic file name.
The warning detail out Check(defalut): When Warning occurs, the warning is
output to the log file at once.
No check: When processing is completed, the warning
and the number of occurrences are output to
the log file.
Target warning numbers: K:W-4131, K:W-4133,
K:W-4138, K:W-4139
System parameter and the title, the message, and the
I/O module are replaced.
The symbol comment and the ladder are added to the
source program.
After the ladder is initialized, the source program is
converted. System parameter and the title, the
message, and the I/O module are replaced.
The symbol comment is added to the source program.
After the symbol comment is initialized, the source
program is converted. System parameter and the title,
the message, and the I/O module are replaced.
The ladder is added to the source program.
After the symbol comment and the ladder are
initialized, the source program is converted.
System parameter and the title, the message, and the
I/O module are replaced.
3. Push the <OK> button.
When the conversion is completed, the conversion results appear.
NOTE
1. When the symbol of the same name already exists, the symbol is not
converted.
2. When the subprogram of the same name already exists, the subprogram is not
converted.
