3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 20 -

3.1 SEQUENCE PROGRAMS

This section describes sequence programs.

3.1.1 Procedure for Creating Sequence Programs

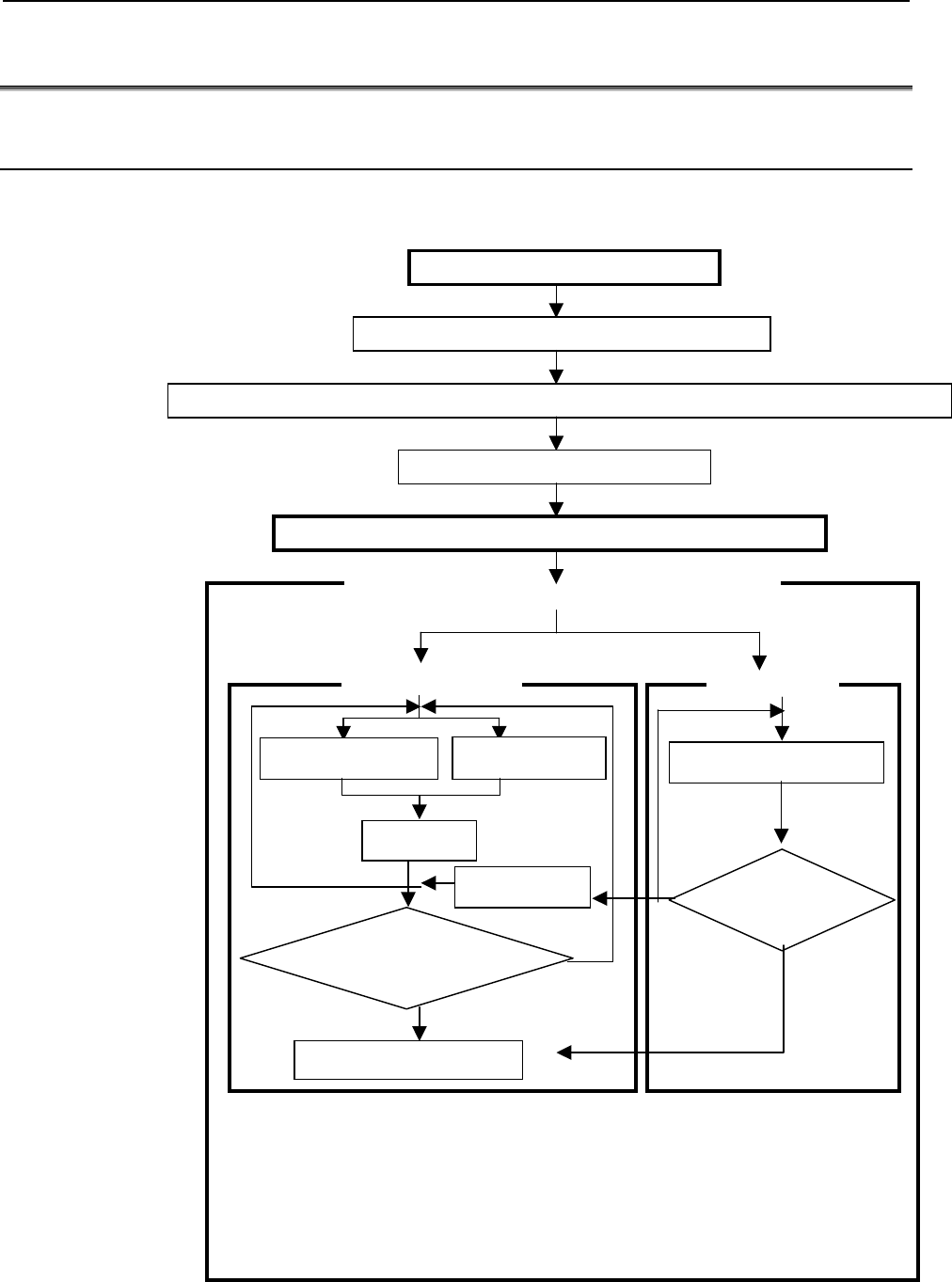

The following flowchart illustrates the procedure for creating a

sequence program.

Start control system development

Determine targets of control (machine and CNC)

Specify control behavior (calculate the number of DI/DO points and determine scale of control)

Specify interfaces (assign DI/DO )

Create sequence program (design, address mapping, coding)

In online editing, programming and monitoring are carried out on a personal compute

connected to the CNC (PMC).

In offline editing, programming is carried out on a personal computer not connected to the

CNC (PMC).

The other PMC programming systems (for use on personal computers) include FANUC

LADDER (DOS) and FANUC LADDER-II (DOS).

Refer to the following manuals:

- FANUC LADDER (for PC) Operator's Manual (B-66131E)

- FANUC LADDER-II Operator's Manual (B-66184EN)

Enter, edit, debug, and print sequence program

FANUC LADDER-III

CNC (PMC)

Edit ladder diagram

Edit mnemonic

Compile

Decompile

Debug

completed?

Debug completed?

(Online function)

Print sequence program

Yes
