9.1.4.4 [Trigger Parameter] screen

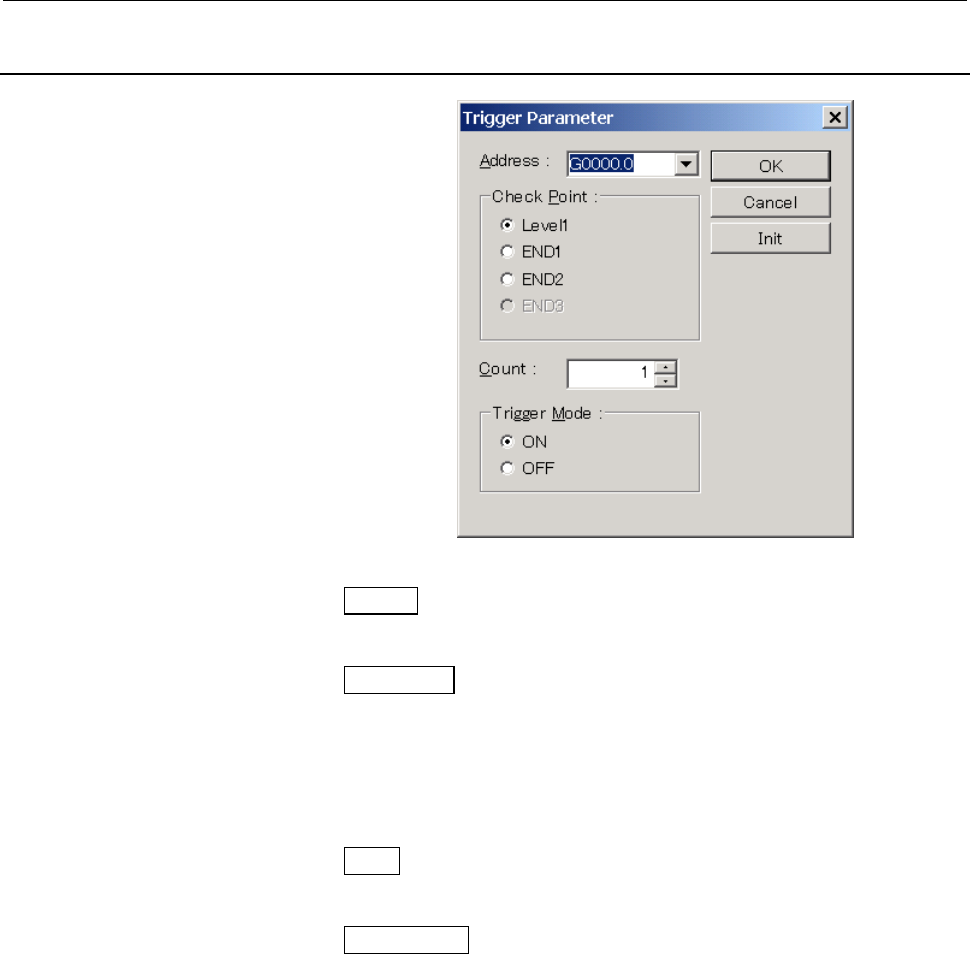

Fig. 9.1.4.4

Address

Set a trigger address. (Symbol input is possible.)

Check Point

Select a trigger check point.

Make a selection from Level1 (start of LEVEL1), END1 (after

END1 instruction execution), END2 (after END2 instruction

execution), and END3 (after END3 instruction execution,

selectable with a model that can use LEVEL3).

Count

Set a trigger count (1 to 65535).

Trigger Mode

ON: Stops triggering on the rising edge of a specified address

signal.

OFF: Stops triggering on the falling edge of a specified address

signal.

<Init> button

This button initializes the parameters as follows:

Address: Blank

Check Point: LEVEL1

Count: 1

Trigger Mode: Disabled
