4.PRINTING SEQUENCE PROGRAMS B-66234EN/05

- 216 -

Font Size

Specify the font size you want to use. The number of

lines, character spacing, and line spacing may be

adjusted automatically according to the specified font

size.

(The Initially value is 9.)

<Reset> button

This button clears the settings of all the items on the

[Line Count] tab to the respective Initially values.

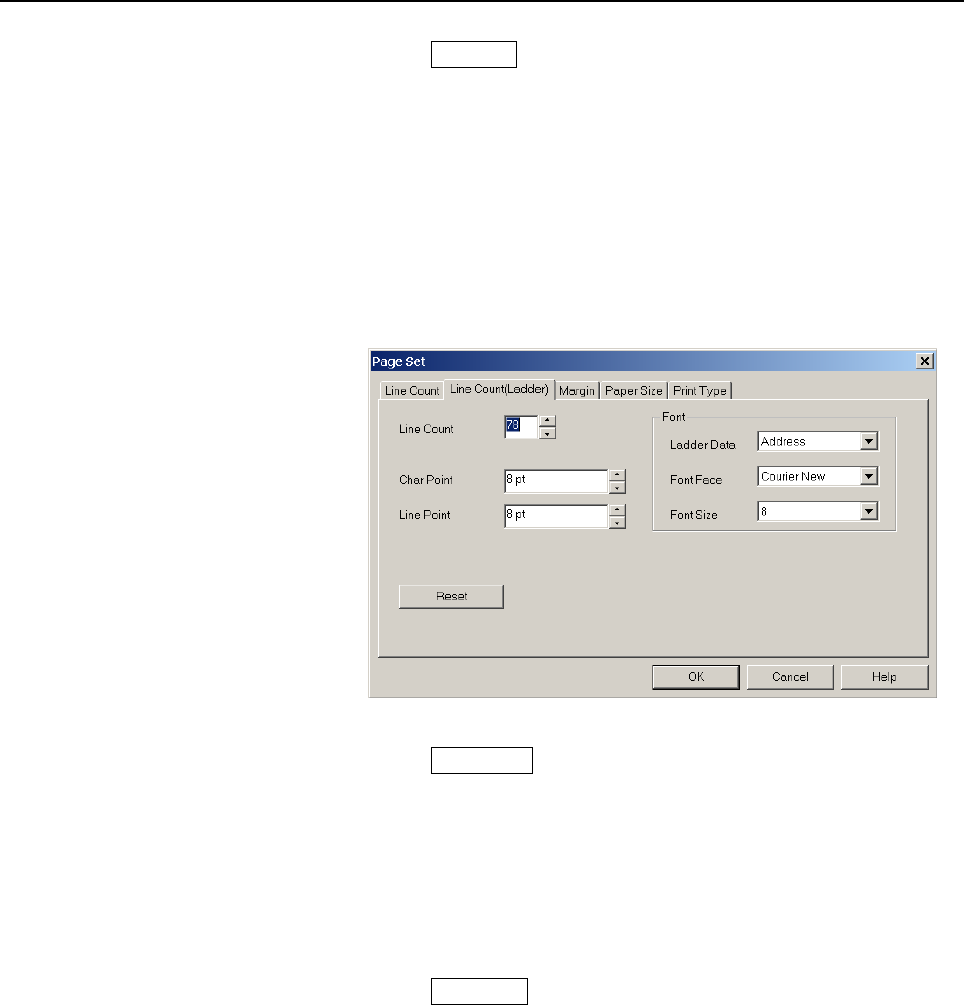

2-2 [Line Count (Ladder)] tab

Fig. 4.12.2 (b)

Line Count

Specify the maximum number of lines that can be

printed on one page. A value can be entered directly. It

can also be selected by clicking the up/down arrows.

The line spacing and font size may be adjusted

automatically according to the specified number of

lines.

(The Initially value is 78.)

Char Point

Specify the character spacing, in points. A value can

be entered directly. It can also be selected by clicking

the up/down arrows. The font size may be adjusted

automatically according to the specified character

spacing.

(The Initially value is 8.)
