FAPT Ladder-III Operators manual Page 271

Operators manual
B-66234EN/05 6.MNEMONIC EDITING
- 245 -
6.2 CONVERTING MNEMONIC FILES TO SOURCE
PROGRAMS
This section describes the procedure for converting a mnemonic file
edited by a text editor to a source program in accordance with a
certain format.
Procedure

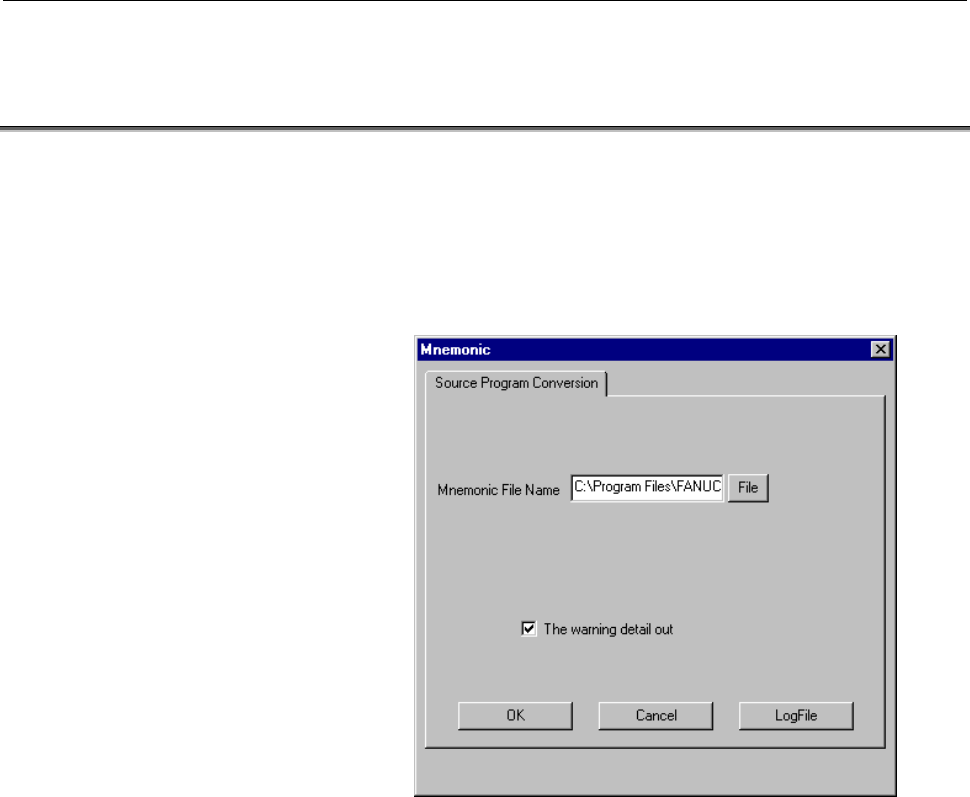

1 Select [Tool] - [Source Program Convert]. Then, the [Mnemonic
– Source Program Conversion] dialog appears.
Fig. 6.2
2 Enter a mnemonic file name in [Mnemonic File Name].
3 When checking is enabled, a warning is output to a log file when
it occurs during conversion of a symbol & comment mnemonic
file to a source program. (Conventional specification)
When checking is disabled, the warnings and the number of
occurrences are output to a log file at the end of conversion of a
symbol & comment mnemonic file to a source program.
Target warning numbers: K:W-4131, K:W-4133, K:W-4139
4 To convert a mnemonic file to a source program, click the <OK>
button.
Once the conversion is complete, the conversion results appear.
(To see the most recently converted results, click the <Log File>
button.)
