FAPT Ladder-III Operators manual Page 671

Operators manual

Page of 714

/ 714

FANUC LADDER-III

SUPPLEMENTARY OPERATOR’S MANUAL

01 05/05/30 First issue B-66234EN/05-3

EDIT

DATE

DESIG.

DESCRIPTION

31/55

TITLE

DRAW.NO.

SHEET

CUST.

5. Support of the multi-path PMC of trace function

The following functions have been added.

- In Series 30i/31i/32i-A PMC, the signal trace function for the multi-path PMC has been supported.

- The trace result output function to text file has been supported.

9.10 SIGNAL TRACE FUNCTION

For the PMC-SB7 and 30i/31i/32i-A PMC, the screen specifications of

the signal trace function and signal analysis function of the

PMC-SA5/SB5/SB6 are integrated to improve operability and

functionality.

9.10.1 Procedure

1. Select [Diagnose] - [Trace].

The [Signal Trace] screen appears.

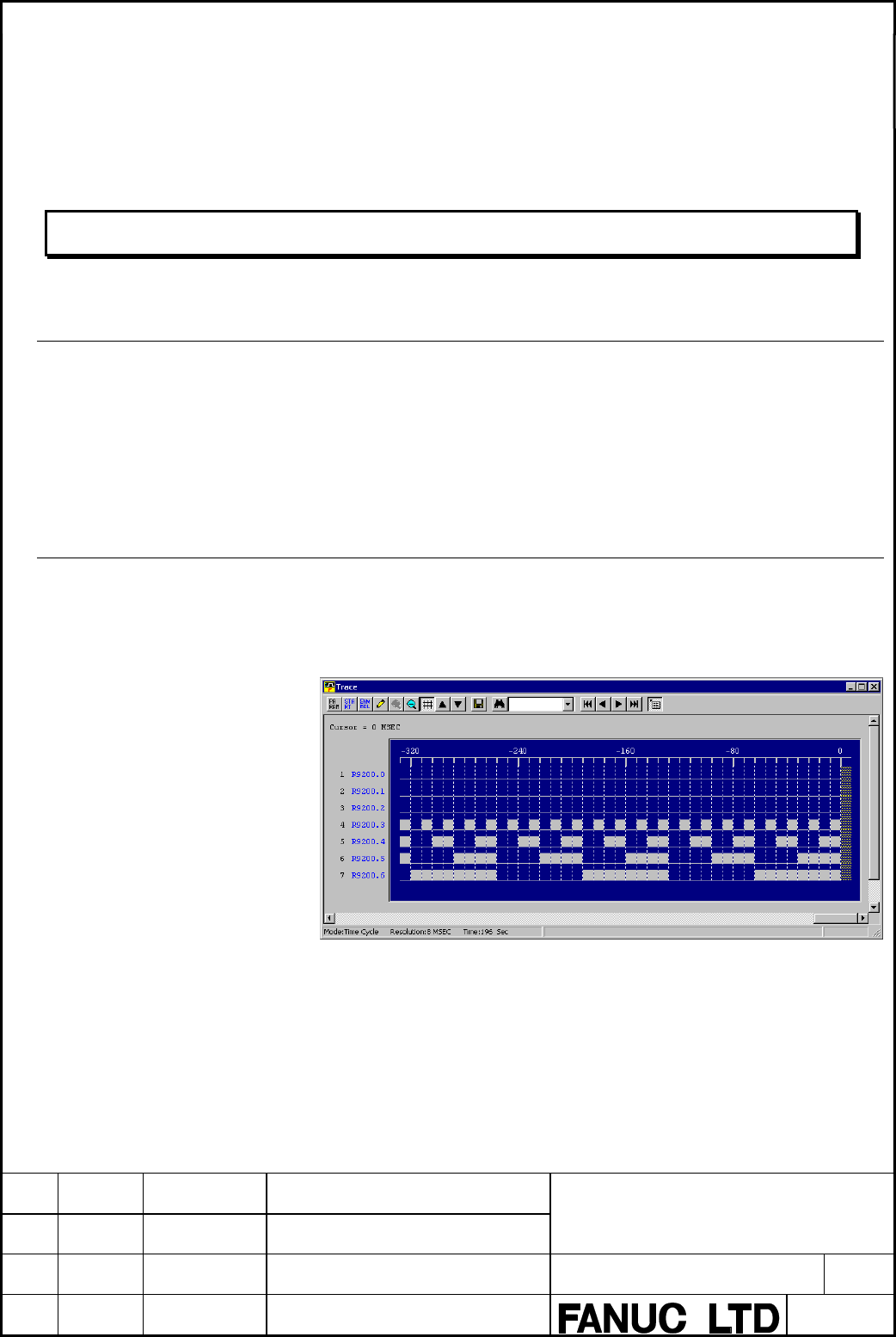

Fig. 9.10.1(a)

Replace [9.10 Signal Trace Function]
