B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 185 -

Table 3.18(a)

Item Explanation

Add(Merging the

Symbol/Comment

has given priority to

the Memory card

data)

The symbols of the source program and object code

are merged only for a symbol and comment. If the

same symbol and comment exist, the definition of

the object code is used.

Adding The symbols of the source program and object code

are merged only for a symbol and comment. If the

same symbol and comment exist, the using

definition can be separately selected for symbol, first

comment or second comment.

Please push <Detail> button and select the using

definition on [Detail] dialog box.

<Yes> Click the <Yes> button to start DeCompile.

<No> Click the <No> button to cancel DeCompile.

<Cancel> Click the <Cancel> button to quit this function.

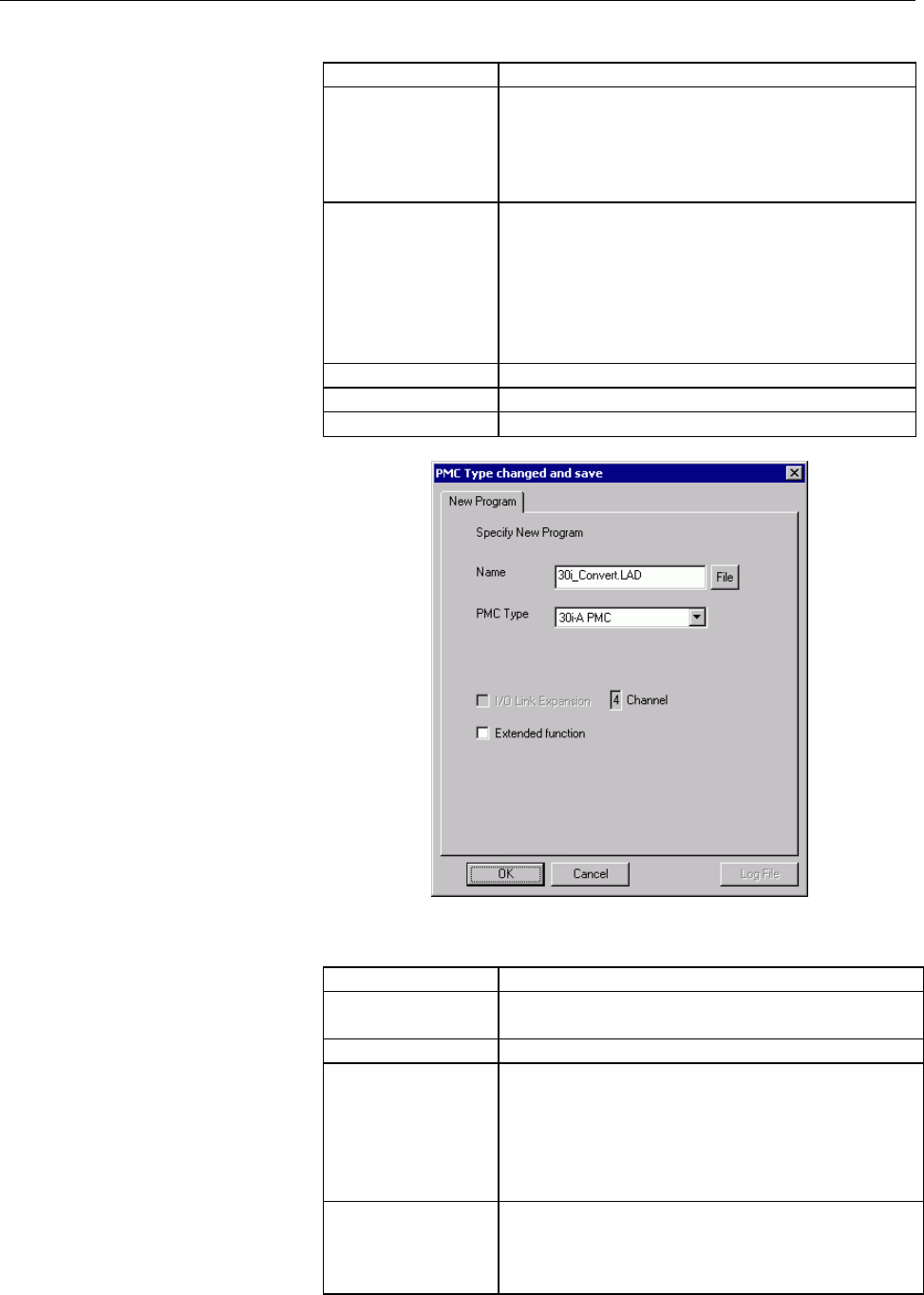

Fig. 3.18(c)

Table 3.18(a)

Item Explanation

Name Enter the new name of a program file you want to

create.

PMC Type Select a PMC type to change.

I/O Link Expansion Check this check box to enable the I/O Link

expansion

function after selecting a model that allows multiple

channels to be set.

(This item is effective when the PMC type that can

use the multiple channels is selected.)

Extended function In case of using the extended Symbol/Comment

function, check this check box.

(This item is effective when the PMC type that can

use the extended function is selected.)
