5.COMPILATION AND DECOMPILATION B-66234EN/05
- 226 -
5. <Map Log> button

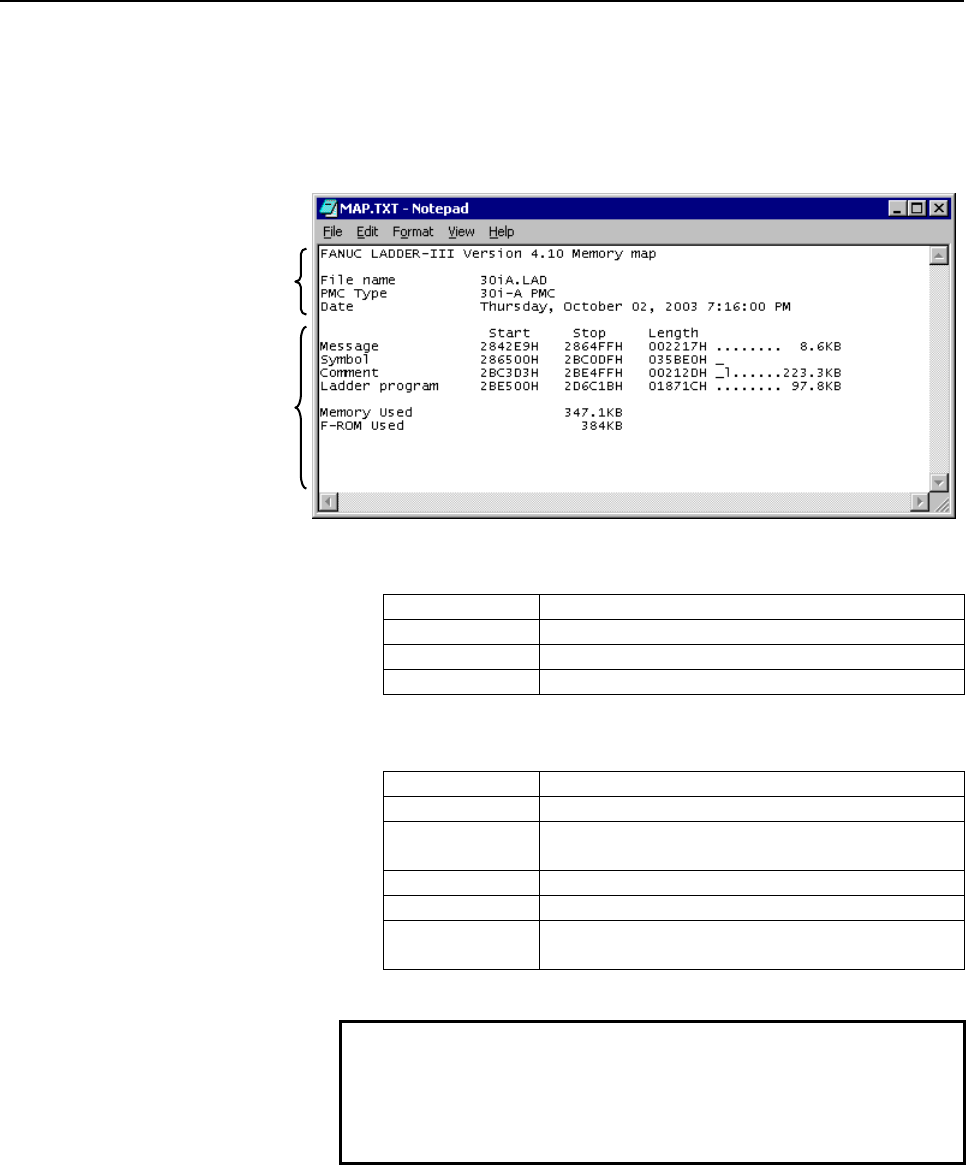

Each data size of the source program is displayed by pushing the
<Map Log> button after processing of compilation. "F-ROM
used" shows the size of needed Flash ROM.
Fig. 5.1 (g)
Header information
Item Contents
File name LAD file name
PMC Type The model of PMC
Date Date the file was created.
* Date is dependent on "Regional options".
Size information
Item Contents
Message Data size of a message.
Symbol
Comment
Data size of a symbol and a comment.
Ladder program Data size of a ladder and step sequence.
Memory Used Data size of the all ladder program .
F-ROM Used Size of Flash ROM necessary to store a ladder
program.
* KB is KByte.
NOTE
When displayed "F-ROM used" size exceeds the
option of PMC ladder capacity, the ladder cannot
be transmitted to PMC or may be unable to write
correctly to F-ROM.
