3.CREATING AND EDITING SEQUENCE PROGRAMS B-66234EN/05

- 124 -

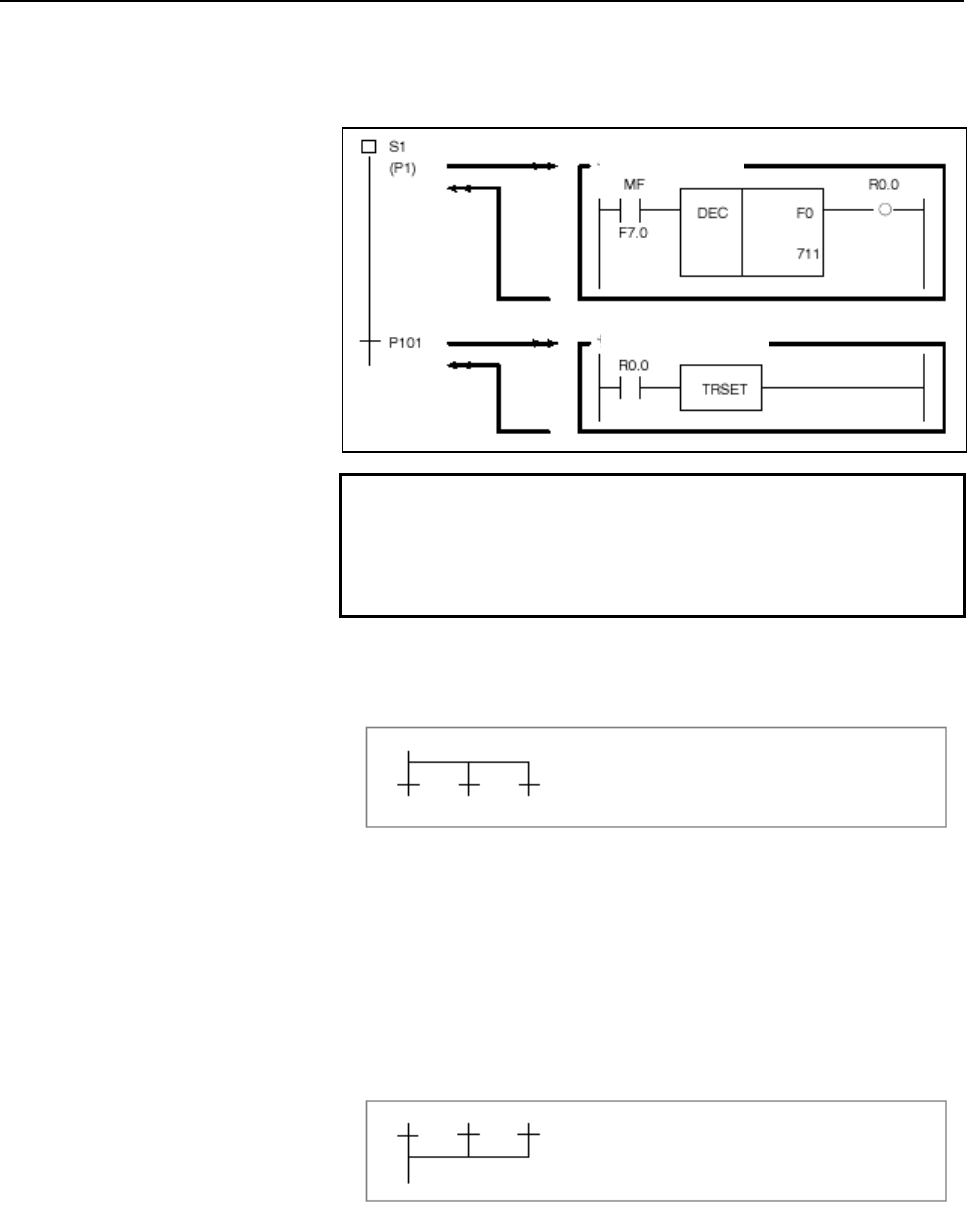

[Example of setting transition conditions]

In this example, after an M7 code is decoded using the DEC

function instruction, control is passed to the next step.

NOTE

The TRSET function instruction is intended to

describe that a transition condition is satisfied. It is

used in a subprogram that is called from the

transition.

Beginning of selective branch

A branch occurs from one step to two or more steps, passing control to

a step below a transition where the condition is satisfied.

• A transition is placed below a branch.

• A step leading to the first transition where the transition

condition is satisfied becomes active.

• If transition conditions for more than one step are satisfied

simultaneously, transition occurs to the leftmost step.

• A branch can occur to up to 16 flows.

End of selective branches

Two or more flows that branched out gather back into one flow.

• The number of branching flows must match that of the gathering

flows.

Subprogram P1

Subprogram P101
