B-66234EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 145 -

3.8 EDITING MESSAGES

Using the DISPB (SUB 41) function instruction enables the display of

any message on the CRT or LCD screen of the CNC. This section

describes how to create messages.

NOTE

Messages can be displayed and edited only when

the current programmer mode (offline/online) is

offline. To change the programmer mode to offline,

select [Ladder] - [Online/Offline].

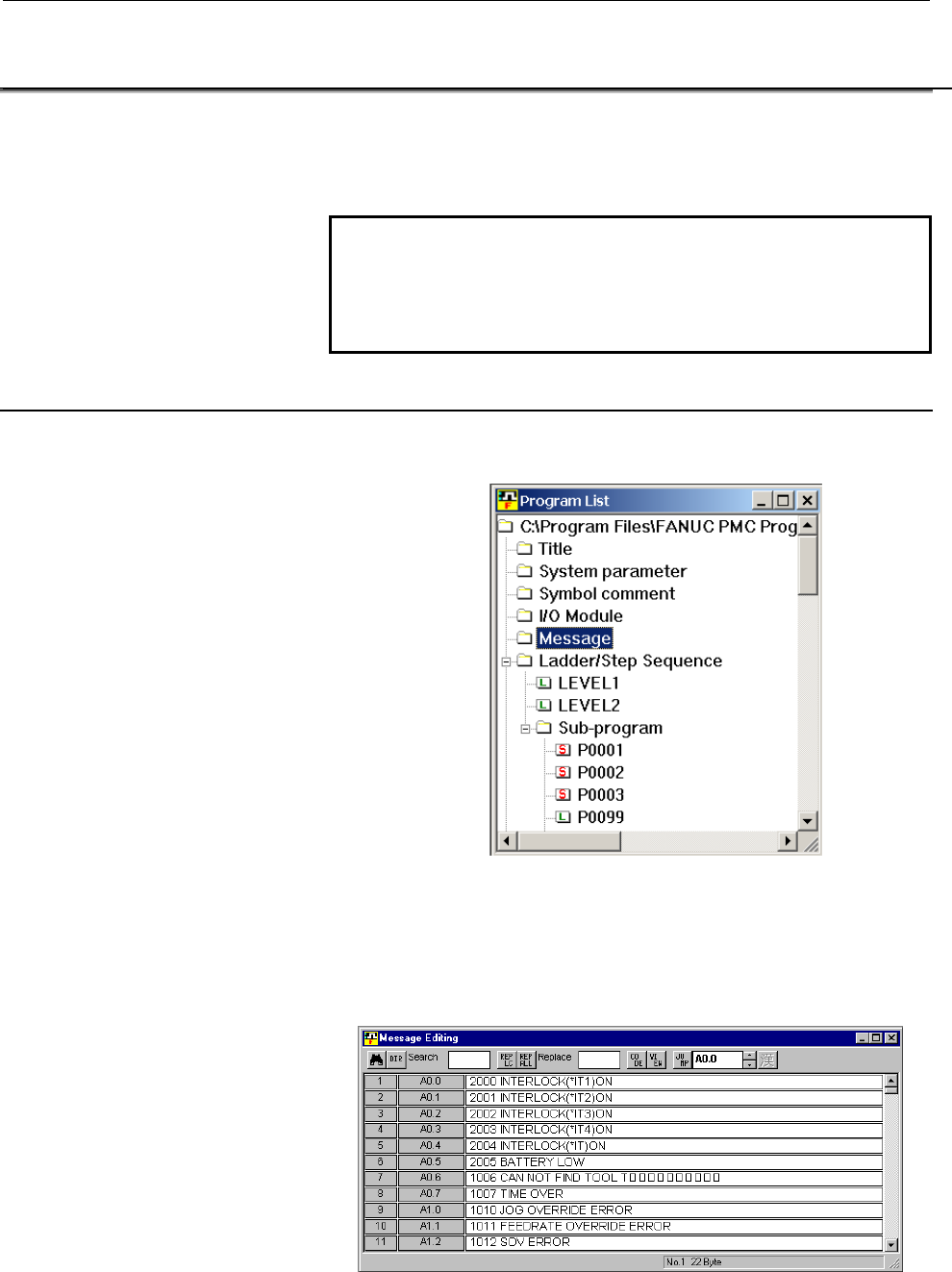

3.8.1 Procedure

1 Double-click the <Message> item on the [Program List] screen.

The [Message Editing] Screen appears.

Fig. 3.8.1 (a)

2. Japanese-language input mode

2-1 Edit messages using the Japanese-language input function

of Windows. Enter kanji, kana, and half-size kana

characters.

Fig. 3.8.1 (b)
