B-66234EN/05 6.MNEMONIC EDITING

- 271 -

6.7.3 Operation to Import from CSV-file

It is possible to import symbol/comment data by the same procedure

as a source program conversion.

Procedure

1. Boot FANUC LADDER-III. And then create or open a LAD file.

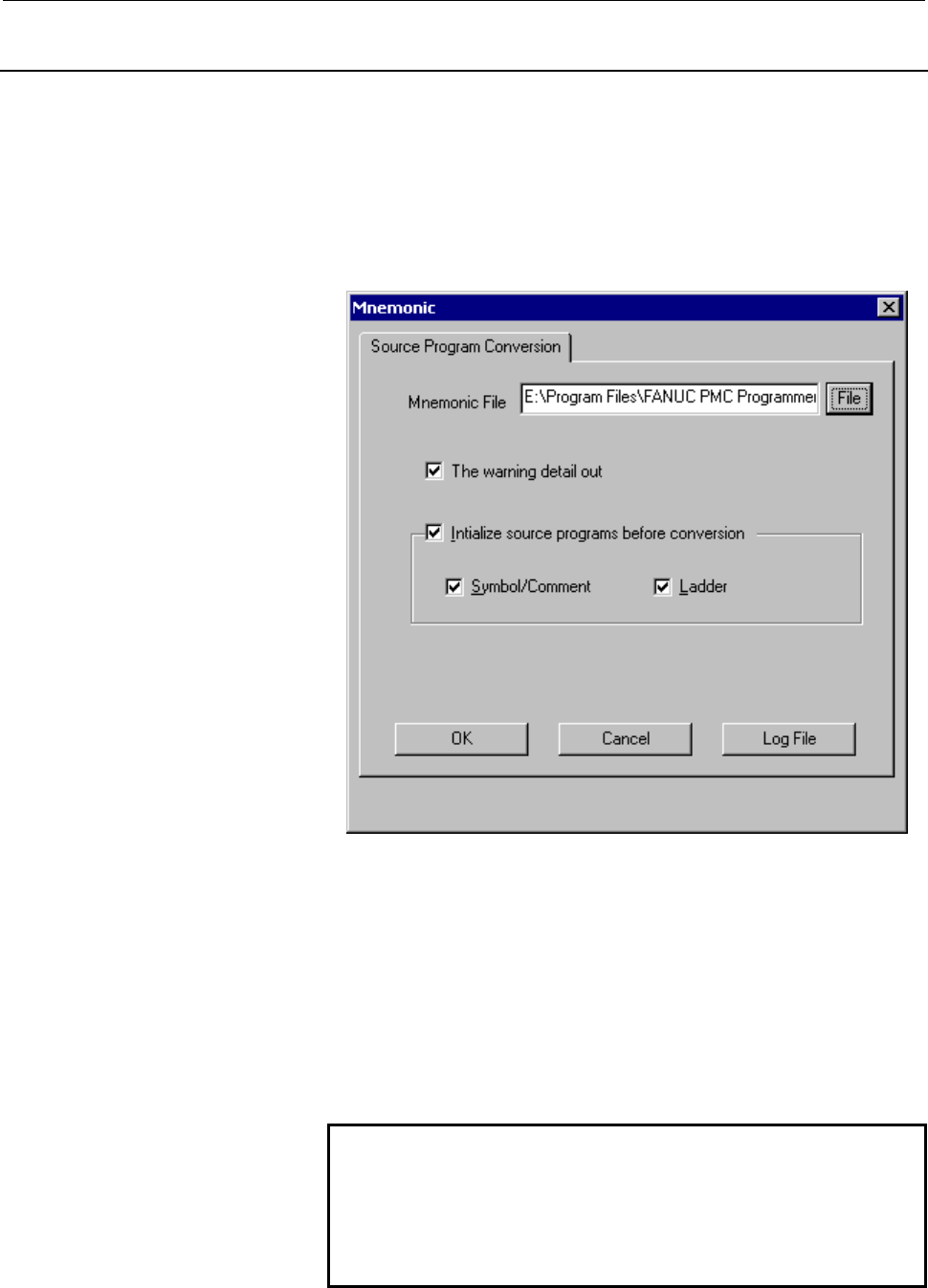

2. Select [Tool] – [Source Program Convert…]. Then, the

[Mnemonic – Source Program Conversion] dialog appears.

Fig. 6.7.3

3. Input the CSV-file name to be imported into [Mnemonic File]

edit-box.

4. If you want to initialize symbol/comment data before importing,

please check [Initialize source programs before conversion] and

[Symbol/Comment].

5. To import symbol/comment data from a CSV-file, click the

<OK> button.

NOTE

When converting from the source file to mnemonic

file, symbol/comment data is always exported in

normal symbol/comment format (%@2-D section

format). It is not supported to export CSV format

symbol/comment file.
