9.7.6 [Signal Analysis Parameter] Screen

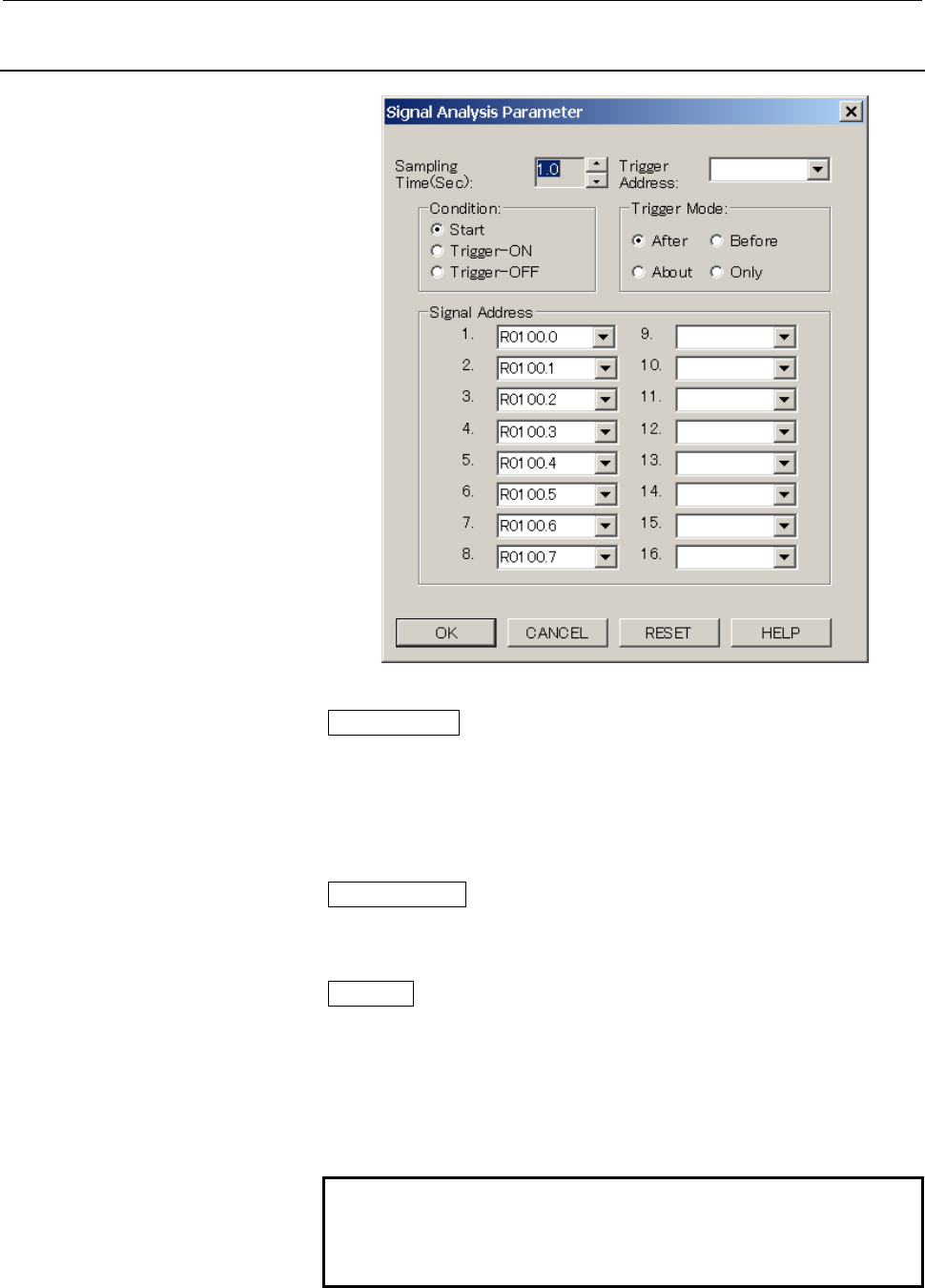

Fig. 9.7.6

Sampling Time

Set the maximum sampling time.

When the sampling interval is 8 msec, set one to 10 sec (in

0.1-sec increments).

When the sampling interval is 4 msec, set one to five sec (in

0.1-sec increments).

Trigger Address

Set the trigger bit address at which sampling starts, with a PMC

address or symbol.

Condition

Condition for starting sampling

Start: Sampling start button on the toolbar

Trigger-ON: Sampling start button + rising edge at the trigger

address

Trigger-OFF: Sampling start button + falling edge at the trigger

address

NOTE

When Trigger-ON or Trigger-OFF is selected with

no trigger address set, a message box appears,

indicating "No Trigger Address."
