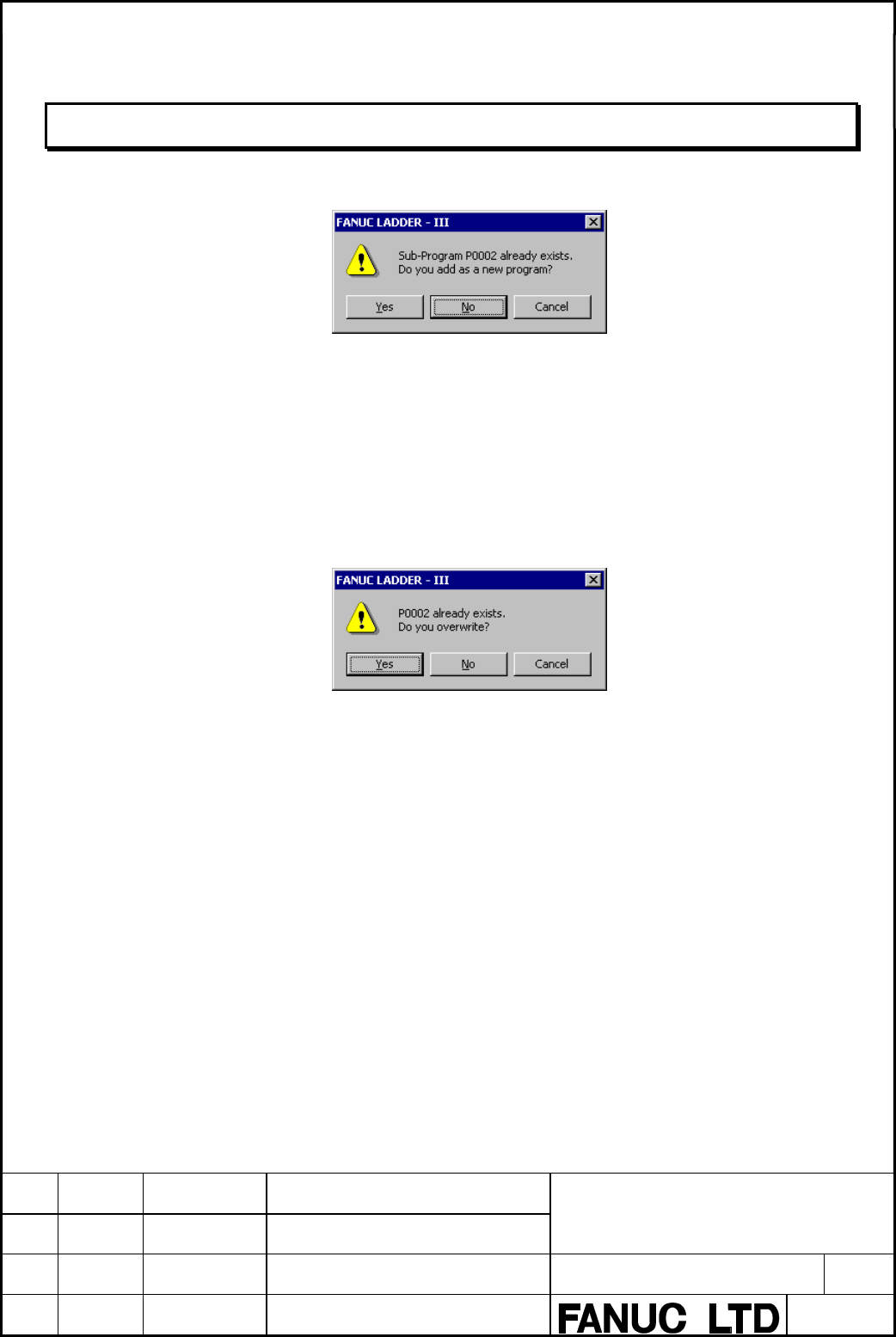

5.3. Change the copy of the ladder subprogram
[Before]
Fig. 3.5.12(c)
<Yes> :The subprogram is added as a new subprogram.
<No> :The subprogram is overwritten.
<Cancel> :Cancel the paste operation.
Select <Yes> button when you want to paste it as a new subprogram.
[After]
Fig. 3.5.12(c)
<Yes> :The subprogram is overwritten.
<No> :The subprogram is added as a new subprogram.
The existing subprogram is not changed.
<Cancel> :Cancel the paste operation.
Push "Yes" button when you want to overwrite the existing subprogram.
"3.5.12 Copying a ladder subprogram" is updated.
