FAPT Ladder-III Operators manual Page 700

Operators manual
3. Addition of "Connect/Disconnect with the PMC" button
The connection/disconnection button of online function was added to the toolbar.
Supported PMC models: All models
Replace "2.2.2 Toolbar"
2.2.2 Toolbar

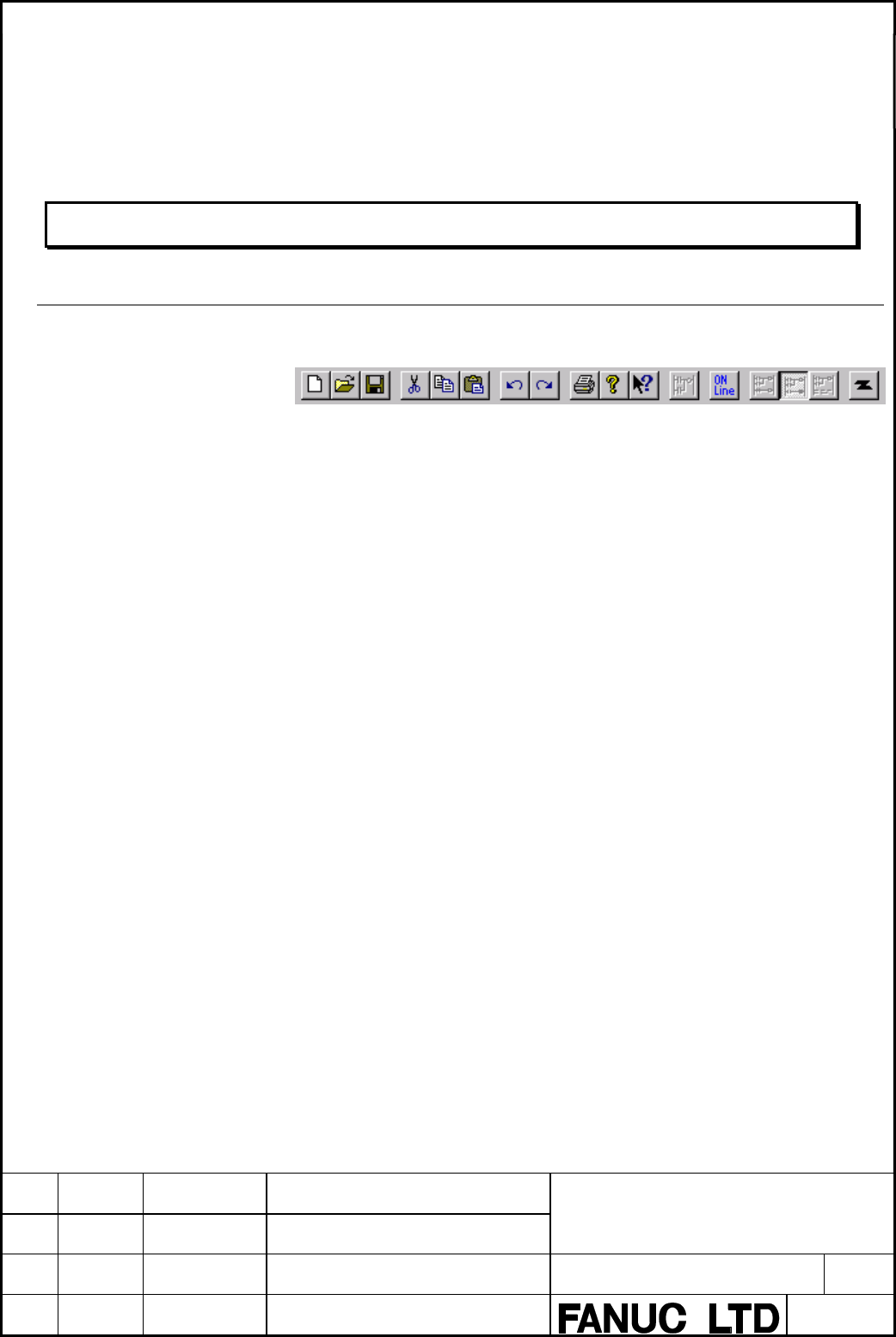

The toolbar contains a set of buttons used for file operations and editing.
<1> <2> <3> <4> <5> <6> <7> <8> <9><10><11> <12> <13> <14><15><16> <17>
Fig. 2.2.2
<1> New Program
Creates a new program.
<2> Open Program
Opens an existing program
<3> Save
Saves a program.
<4> Cut
Removes a selected portion.
<5> Copy
Copies a selected portion.
<6> Paste
Pastes a cut or copied portion.
<7> <8> Undo, Redo
The previous edit operation in the ladder edit screen is canceled or the
operation canceled by Undo function is executed again.
<9> Print
Prints a program.
FANUC LADDER-III
SUPPLEMENTARY OPERATOR'S MANUAL
01 05/09/26 First issue B-66234EN/05-4
EDIT
DATE
DESIG.
DESCRIPTION
4/18
TITLE
DRAW.NO.
SHEET
CUST.
Previous page
Next page
