0i/0i Mate - Model C Parameter manual Page 163

Parameter manual

Page of 414

/ 414

B-64120EN/01 4.DESCRIPTION OF PARAMETERS

- 151 -

NOTE

When the values of MS0 and MS1 are changed, all

preserved external operator message history data

is cleared.

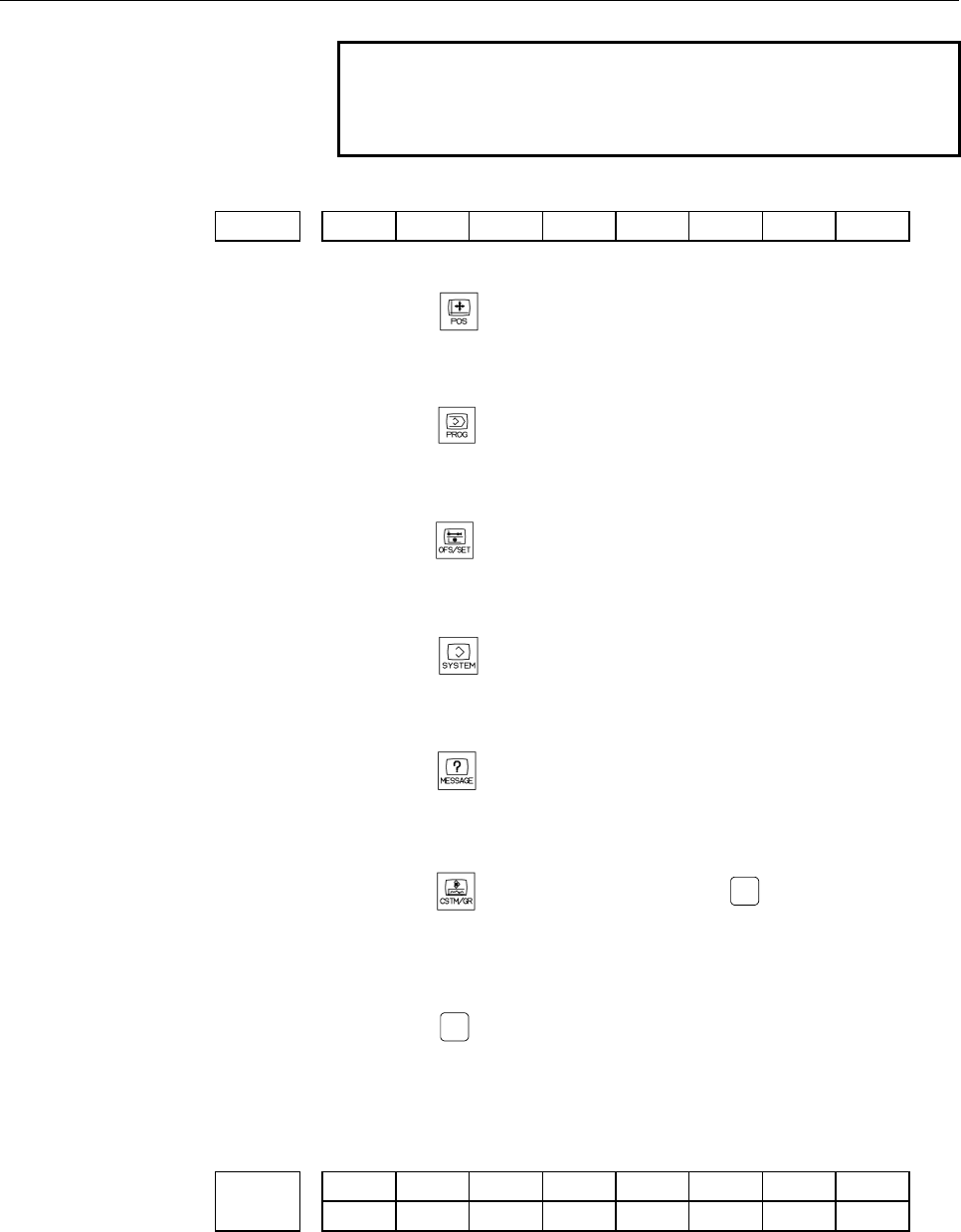

#7 #6 #5 #4 #3 #2 #1 #0

3114 ICS IUS IMS ISY IOF IPR IPO

[Data type] Bit

IPO When the

function key is pressed while the position display

screen is being displayed:

0 : The screen is changed.

1 : The screen is not changed.

IPR When the

function key is pressed while the program screen is

being displayed:

0 : The screen is changed.

1 : The screen is not changed.

IOF When the

function key is pressed while the offset/setting screen

is being displayed:

0 : The screen is changed.

1 : The screen is not changed.

ISY When the

function key is pressed while the system screen is

being displayed:

0 : The screen is changed.

1 : The screen is not changed.

IMS When the

function key is pressed while the message screen is

being displayed:

0 : The screen is changed.

1 : The screen is not changed.

IUS When the

(using small MDI unit) or

GRAPH

(using standard MDI

unit) function key is pressed while the custom or graphic screen is

being displayed:

0 : The screen is changed.

1 : The screen is not changed.

ICS When the

CUSTOM

(using standard MDI unit) function key is pressed

while the custom screen is being displayed:

0 : The screen is changed.

1 : The screen is not changed.

#7 #6 #5 #4 #3 #2 #1 #0

NDFx SFMx NDAx NDPx

3115

D10x NDFx NDAx NDPx

[Data type] Bit axis

NDPx Display of the current position for each axis

0 : The current position is displayed.

1 : The current position is not displayed.
