B-64120EN/01 3.INPUTTING AND OUTPUTTING PARAMETERS THROUGH THE READER/PUNCHER INTERFACE

- 7 -

3.2 INPUTTING PARAMETERS THROUGH THE

READER/PUNCHER INTERFACE

(1) Place the NC in the emergency stop state.

(2) Enable parameter writing.

1. To display the setting screen, press the

function key

as many times as required, or alternatively press the

function key once, then the [SETTING] section select soft

key. The first page of the setting screen appears.

2. Position the cursor on "PARAMETER WRITE" using the

cursor move keys.

3. Press the [(OPRT)] soft key to display operation select soft

keys.

4. To set "PARAMETER WRITE=" to 1, press the ON:1

soft key, or alternatively enter 1, then press the [INPUT]

soft key. From now on, parameters can be set. At the same

time an alarm condition (P/S100 PARAMETER WRITE

ENABLE) occurs in the NC.

(3) To select the parameter screen, press the

function key as

many times as required, or alternatively press the

key once,

then [PARAM] soft key.

(4) Press the [(OPRT)] soft key to display operation select keys, then

press the forward menu key located at the right-hand side of the

soft keys to display another set of operation select soft keys

including [READ].

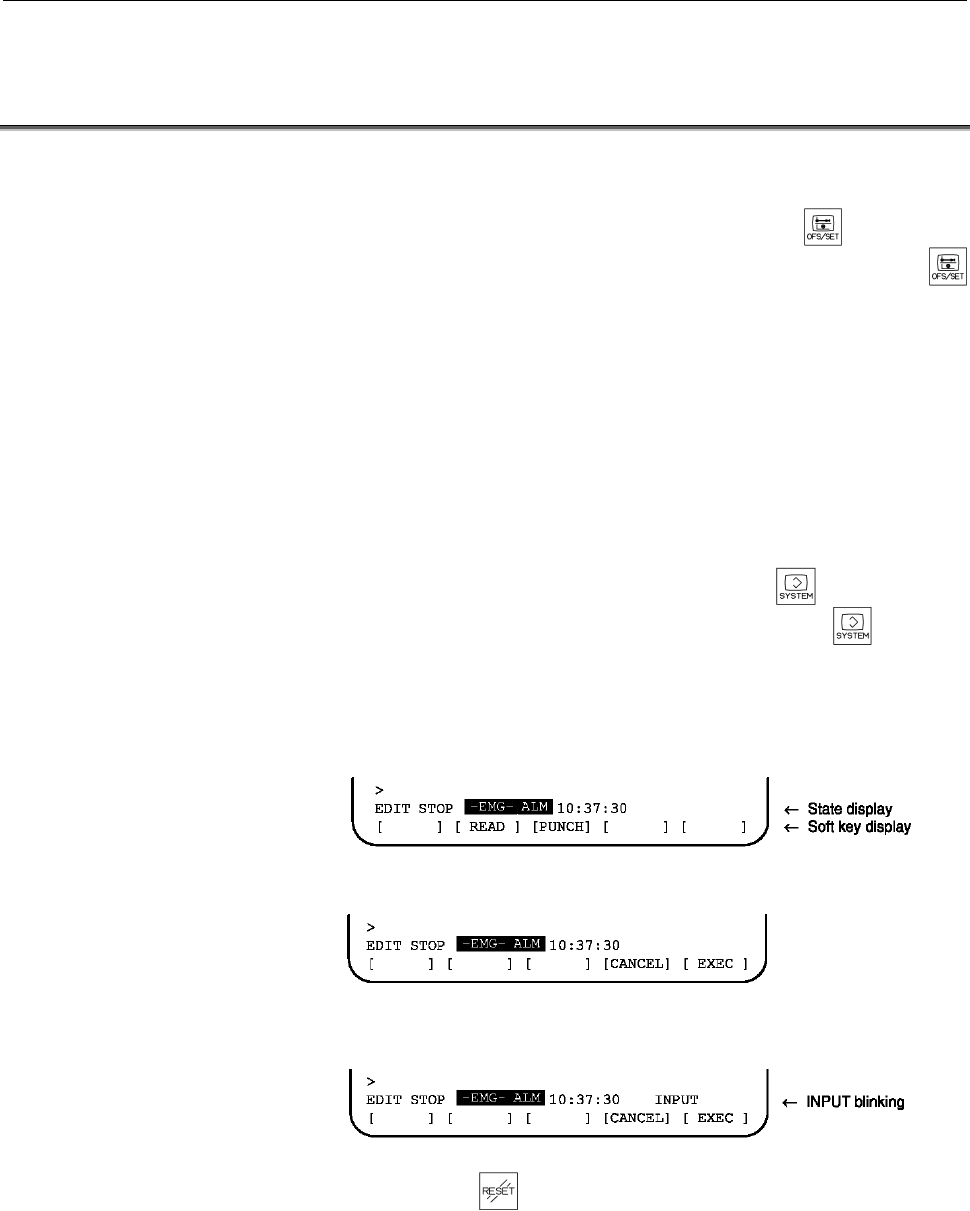

(5) Pressing the [READ] soft key changes the soft key display as

shown below:

(6) Press the [EXEC] soft key to start inputting parameters from the

input/output device. When parameters are being input, "INPUT"

blinks in the state display field on the lower part of the screen.

(7) When parameter input terminates, "INPUT" stops blinking.

Press the

key to interrupt parameter input.

(8) When parameter read terminates, "INPUT" stops blinking, and

an alarm condition (P/S000) occurs in the NC. Turn it off

before continuing operation.
