4.DESCRIPTION OF PARAMETERS B-64120EN/01

- 84 -

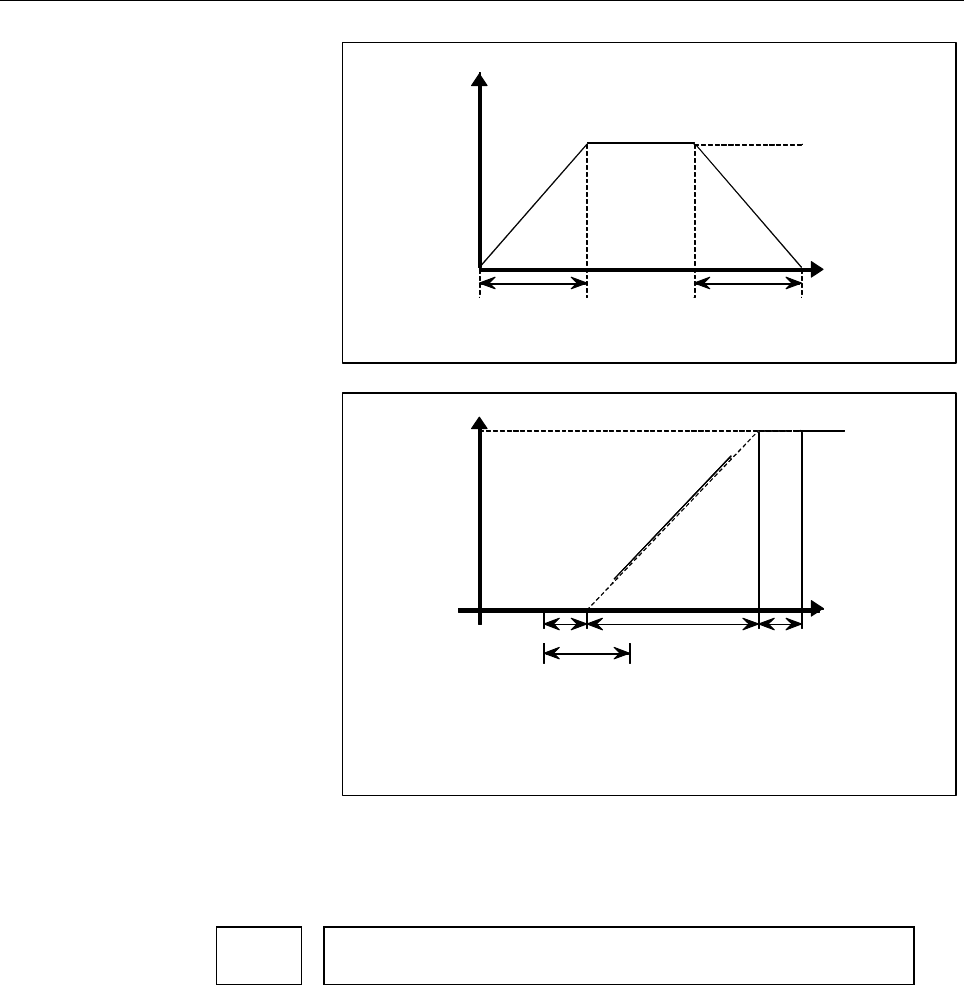

Speed

Rapid traverse

feed rate

Time

T: Time constant for linear acceleration/deceleration

Speed

Rapid

traverse rate

Time

: Set a time constant used for linear acceleration/deceleration

: Set a time for rounding.

Total time=T

+ T

Time for linear=T

- T

Time for rounding part=T

Set the value when the rapid traverse rate is 100%. If it is under 100%,

the total time is reduced. (Constant acceleration method)

The value of T

is determined from the torque of motor. Usually set

the value of T

to 24 ms or 32 ms.

1621

Time constant t T

used for bell-shaped acceleration/deceleration in rapid

traverse for each axis

[Data type] Word axis

[Unit of data] ms

[Valid data range] 0 to 512

Specify time constant T

used for bell-shaped acceleration/

deceleration in rapid traverse for each axis.
