0i/0i Mate - Model C Parameter manual Page 252

Parameter manual

Page of 414

/ 414

4.DESCRIPTION OF PARAMETERS B-64120EN/01

- 240 -

Spindle forward-rotation M code in drilling canned cycle

5112

[Data type] 2-word

[Valid data range] 0 to 255

This parameter sets the spindle forward-rotation M code in a drilling

canned cycle.

NOTE

M03 is output when "0" is set.

Spindle reverse-rotation M code in drilling canned cycle

5113

[Data type] 2-word

[Valid data range] 0 to 255

This parameter sets the spindle reverse-rotation M code in

a drilling canned cycle.

NOTE

M04 is output when "0" is set.

Return or clearance value of drilling canned cycle G83

5114

Return value of high-speed peck drilling cycle G73

[Data type] Word

[Unit of data]

Input increment IS-A IS-B IS-C Unit

Millimeter input 0.01 0.001 0.001 mm

Inch input 0.001 0.0001 0.0001 inch

[Valid data range] 0 to 32767

For M series this parameter sets the return value in high-speed peck

drilling cycle G73 (G83 for T series).

q : Depth of cut

d : Return value

R point

Z point

G73 for M series

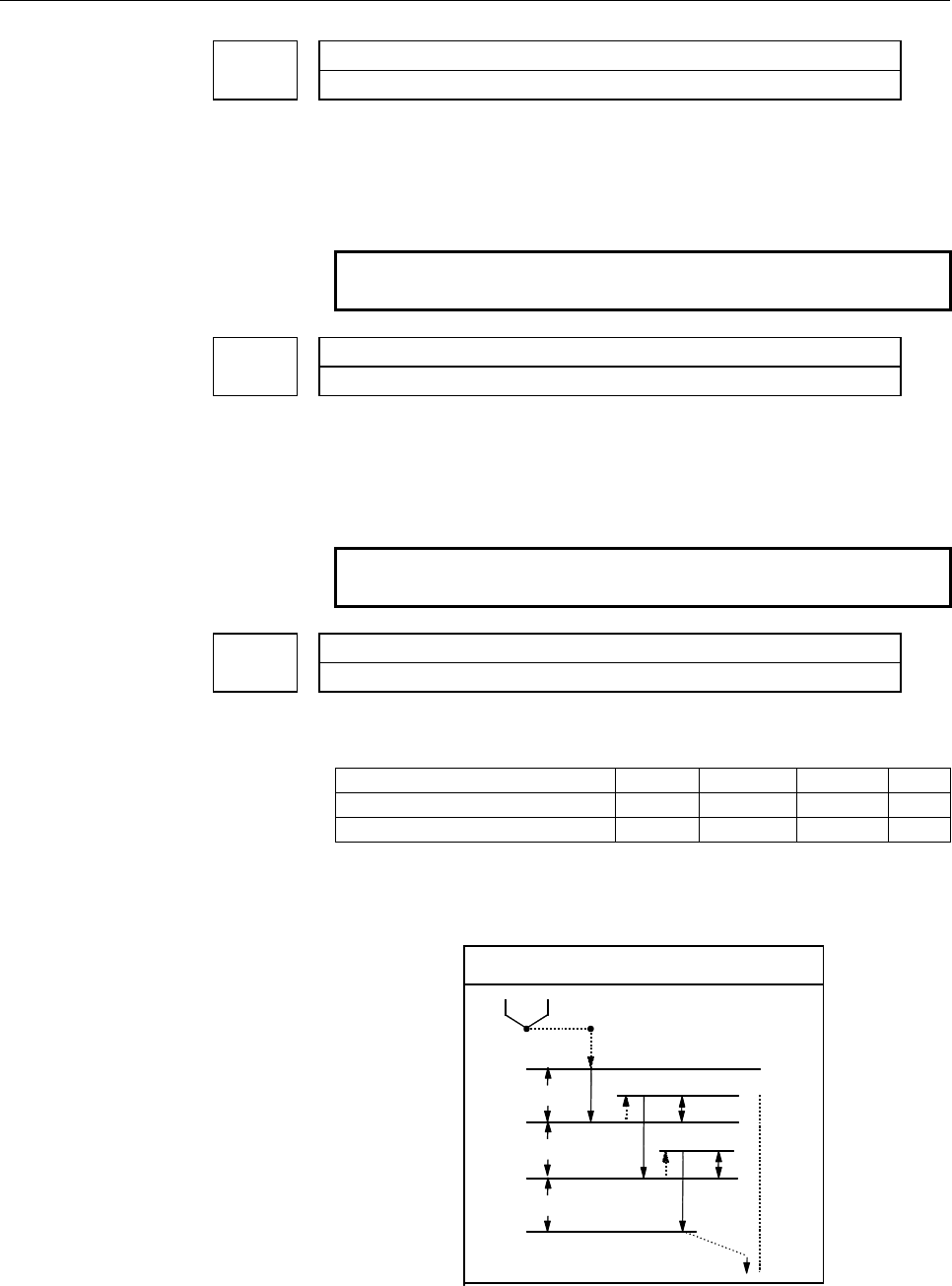

Fig.4.22.1 (a) High-speed Peck Drilling Cycle G73
