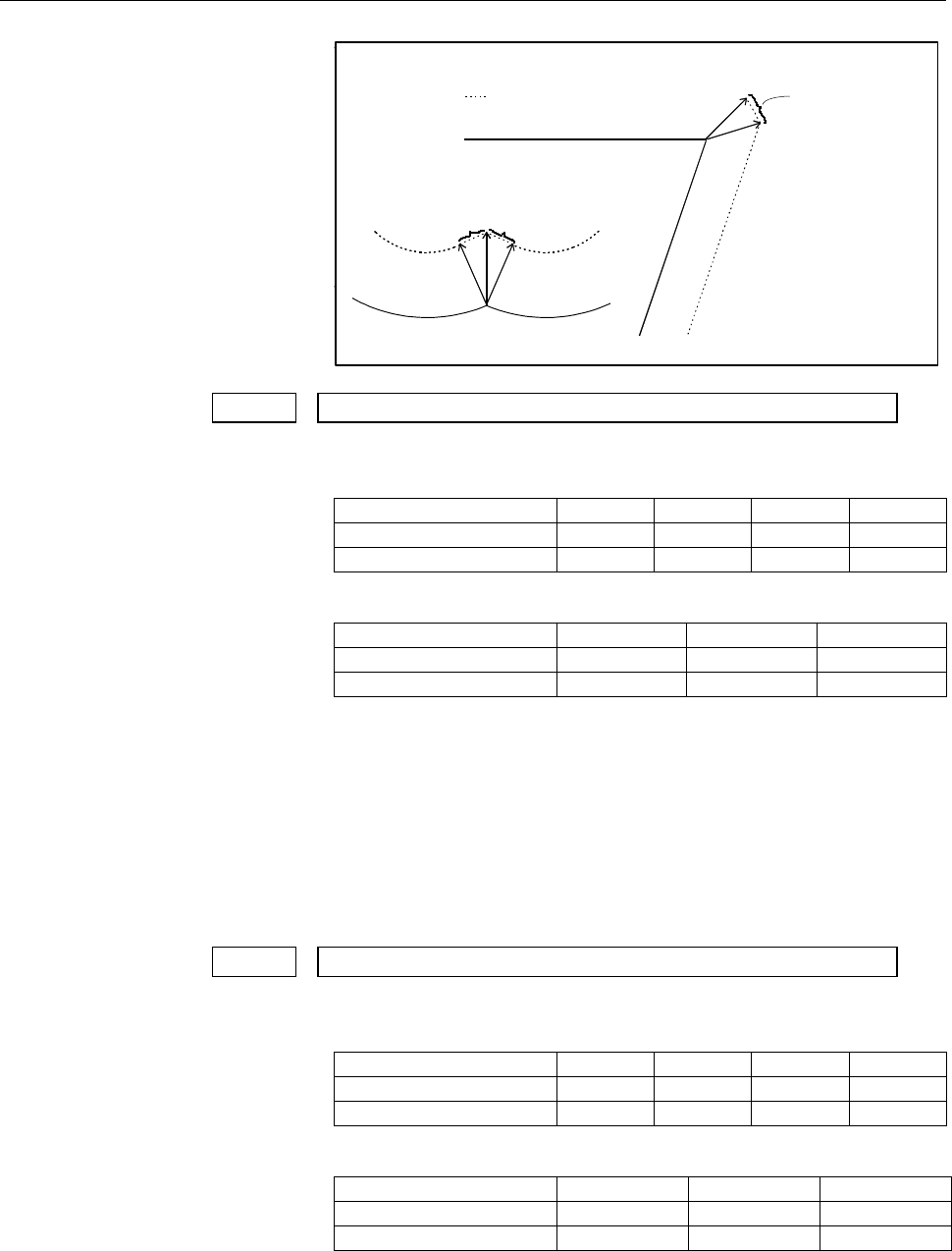

0i/0i Mate - Model C Parameter manual Page 242

Parameter manual
4.DESCRIPTION OF PARAMETERS B-64120EN/01
- 230 -
Very small amount of travel to be
ignored
Programmed path
A
ctual tool path
Very small amount
of travel to be
ignored
5013 Maximum value of tool wear compensation
[Data type] 2-word
[Unit of data]
Input increment IS-A IS-B IS-C Unit
Millimeter input 0.01 0.001 0.0001 mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range]
Input increment IS-A IS-B IS-C
Millimeter input 0 to 99999 0 to 999999 0 to 9999999
Inch input 0 to 99999 0 to 999999 0 to 9999999
This parameter sets the maximum allowable tool wear compensation
value. If an attempt is made to set a tool wear compensation value, the
absolute value of which exceeds the value set in this parameter, the
following alarm or warning is output:
Input from MDI
Warning: Too many digits
Input by G10
P/S alarm No.032: Offset value is out of range by G10.
5014 Maximum value of incremental input for tool wear compensation
[Data type] 2-word
[Unit of data]
Input increment IS-A IS-B IS-C Unit
Millimeter input 0.01 0.001 0.0001 mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range]
Input increment IS-A IS-B IS-C
Millimeter input 0 to 99999 0 to 999999 0 to 9999999
Inch input 0 to 99999 0 to 999999 0 to 9999999
